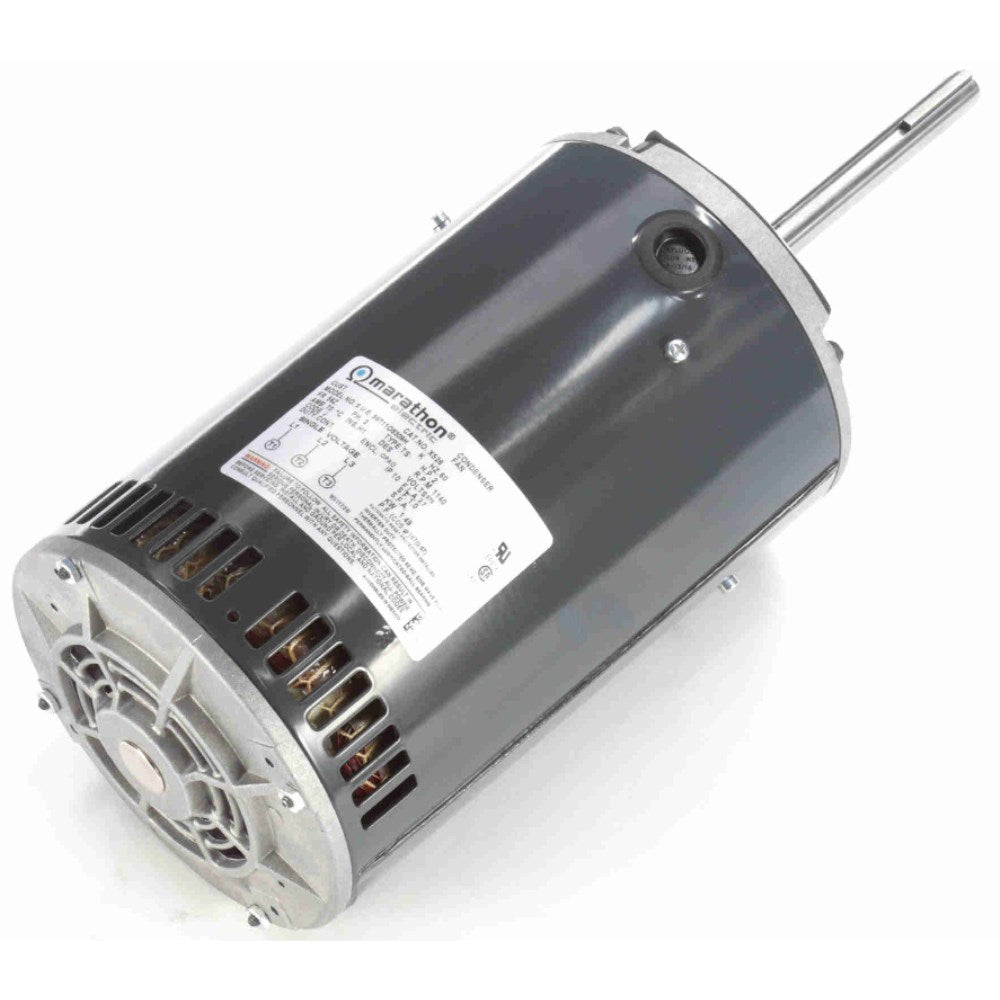

Marathon 2 HP Condenser Fan and Heat Pump Motor | 575/3 | 1140 RPM | REV
Discontinued Model
Marathon 2 HP Condenser Fan and Heat Pump Motor | 575/3 | 1140 RPM | REV
Discontinued Model
$1,418.00 / EA
Description
Condenser Fan and Heat Pump Motor, Ball Bearing, 2 HP, 575/3, 2.7 Amp, 1140 RPM, Reversible, 56Z Frame, Open Air Over, Round Belly Band Mounting, 5/8" X 5" Shaft
Documents
There are no documents available.
Specifications
- BrandMarathon Motors
- ManufacturerRegal Beloit Canada
- Amperage2.70A
- DisclaimerFor professional use only. Refer to all information, warnings and instructions on product and package labeling and accompanying documentation provided by the product manufacturer. Product must be used in accordance with such labeling and documentation.
- Duty CycleContinuous
- Gross Weight (lbs)45
- Hertz60 Hz
- Horsepower Rating2
- Motor Mounting StyleRound Belly Band
- Motor Overload ProtectionAutomatic Thermal
- Motor Type6.5" Diameter Motors, Condenser Fan Motors
- Number of Poles6
- Number of Speeds1
- Package Contents(1) Shaft Slinger
- Shaft DesignFlat, T
- Shaft Length (In.)5.06
- Voltage575/3
- Motor DesignSquirrel Cage Induction Run
- EnclosureOpen Air Over
- RPM1140
- Shaft Diameter (In.)5/8
- Bearing TypeBall
- NEMA Frame Size56Z
- RotationCW/CCW, REV
- Body Diameter (In.)6.48
- Number of Shafts1
