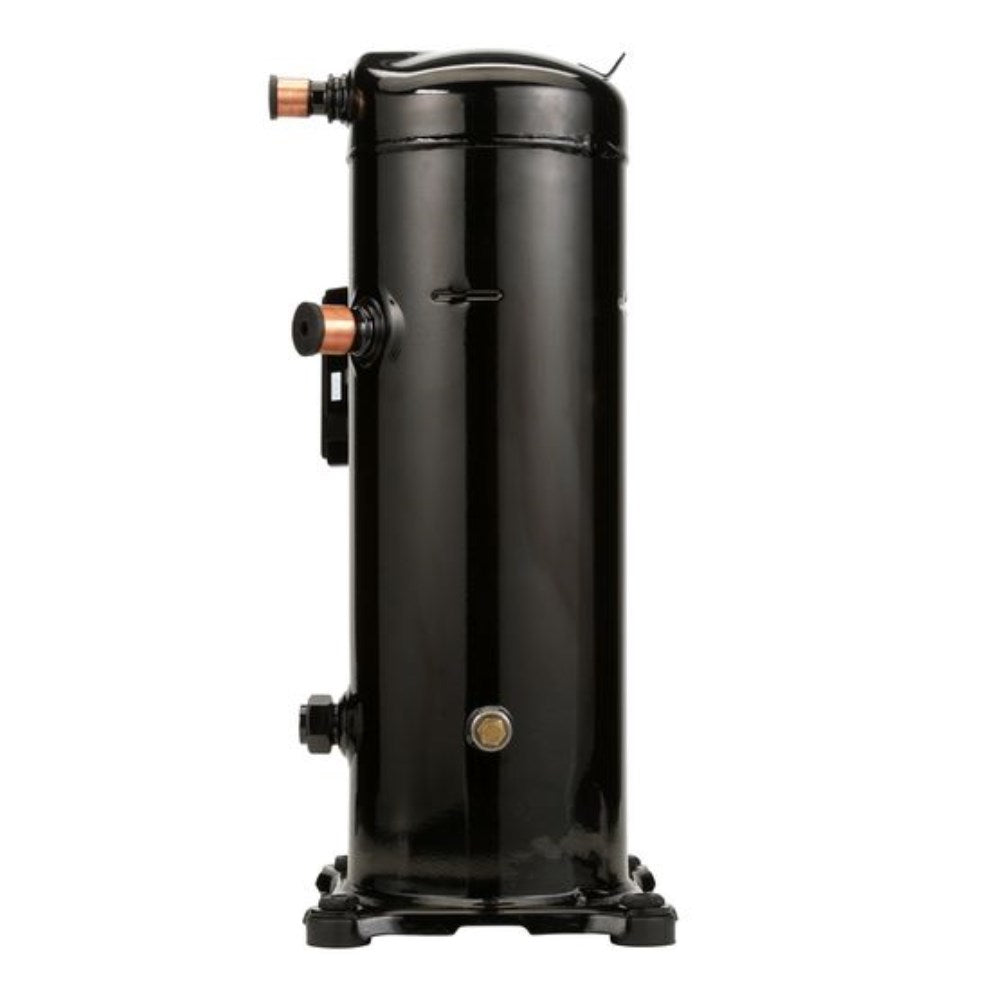

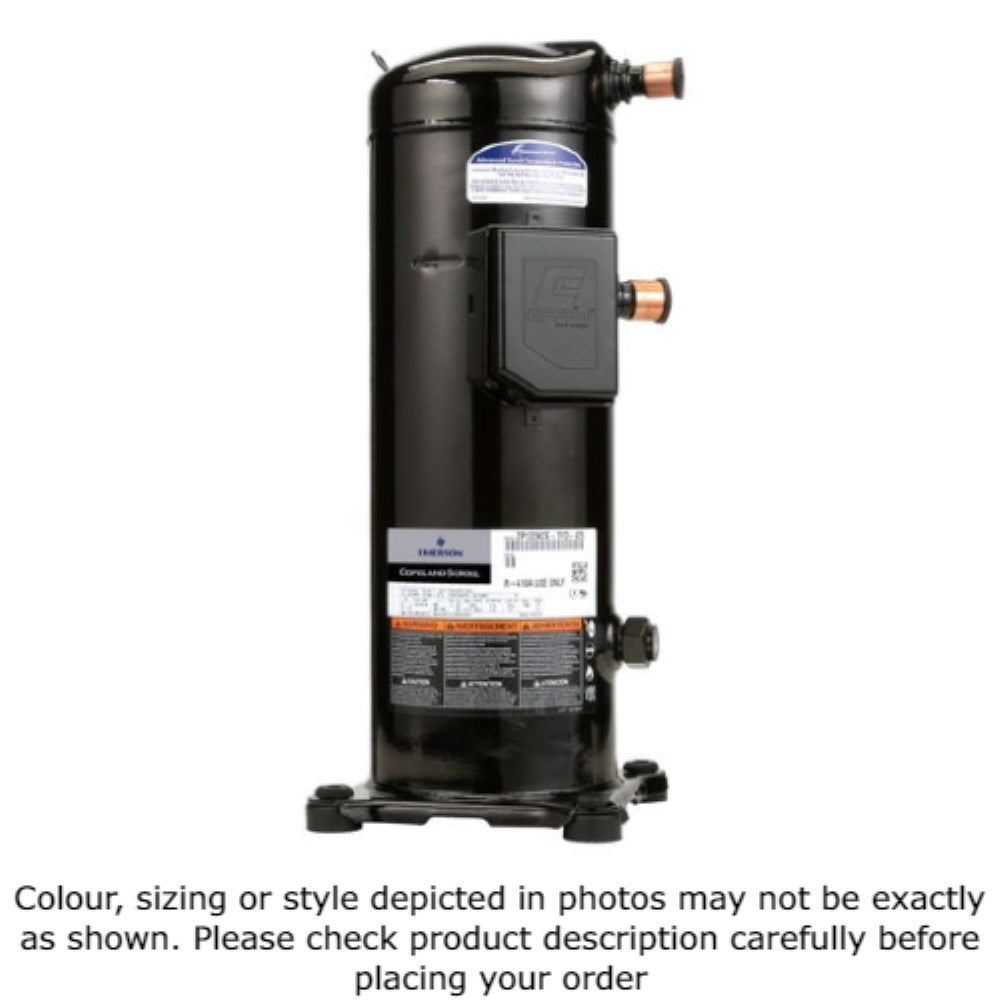

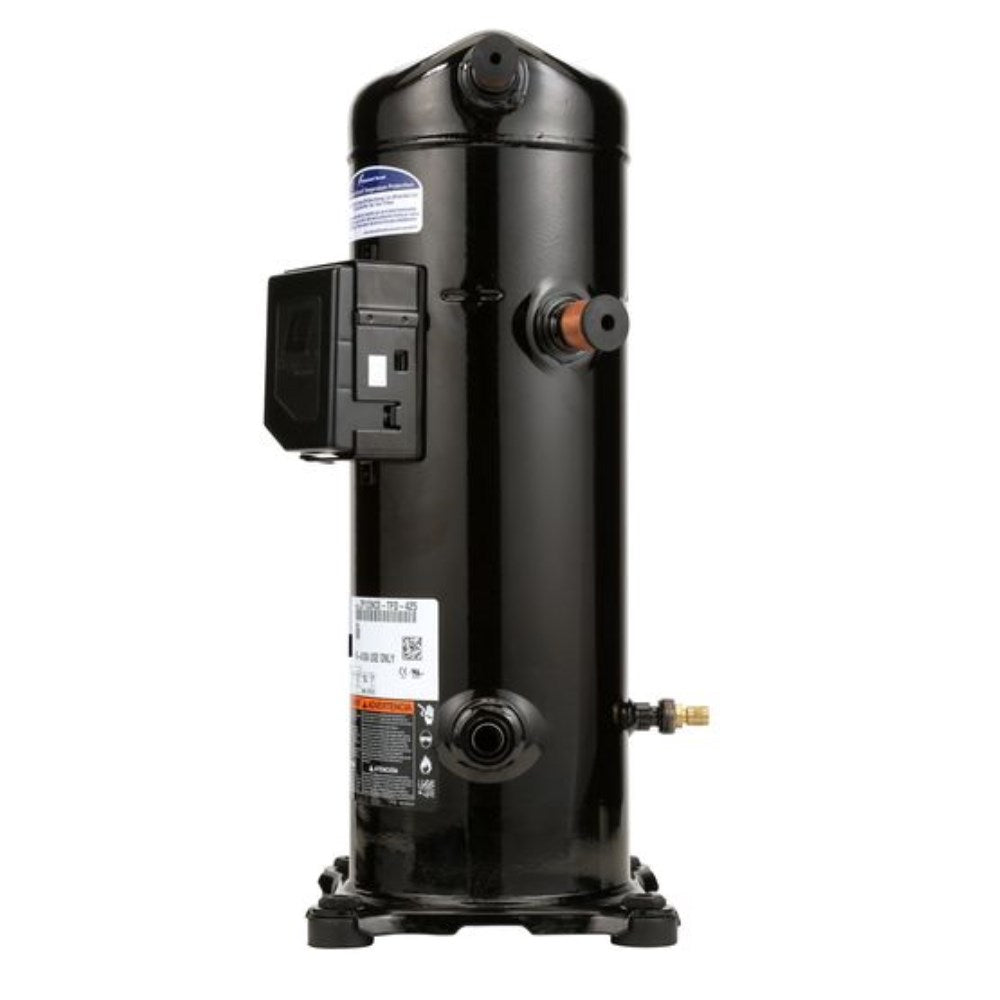

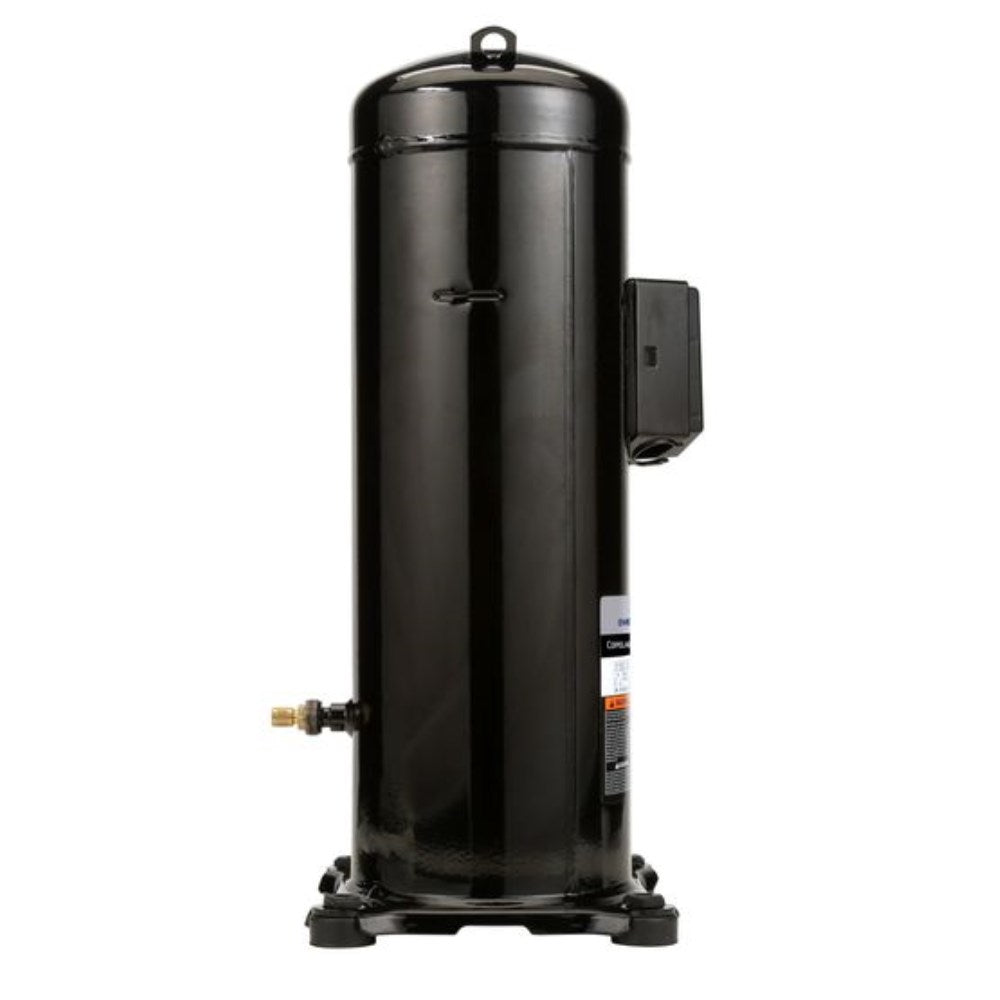

Copeland 154,000 BTU/Hr R410A A/C Scroll Compressor with Coresense and Rotalock | 575/3
Copeland 154,000 BTU/Hr R410A A/C Scroll Compressor with Coresense and Rotalock | 575/3
$ / EA
Description
154,000 BTU/Hr Nominal Capacity R410A Air Conditioning Scroll Compressor with Coresense and Suction and Discharge Rotalock Connections, POE Oil, 575/3/60, 3 Phase Motor with External Enhanced Protection
Documents
There are no documents available.
Specifications
- BrandCopeland
- Height (In.)22.21
- Hertz60 Hz
- Length (In.)12.93
- RPM3,500
- Weight (lbs)143
- Width (In.)11.73
- ManufacturerCopeland Canada
- Application TemperatureHigh Temperature, Air Conditioning
- RefrigerantR410A
- Bill of MaterialsMounting Parts, Suction and Discharge Rotalock Connections
- Capacity @ 35 F Evaporator Temperature120,001 to 144,000
- Capacity @ 45 F Evaporator Temperature144,001 to 168,000
- Compressor DesignScroll
- Compressor FamilyScroll Air Conditioning
- Compressor Locked Rotor Amps (High)109.00A
- Electrical Connection TypeTerminal Block
- Initial Oil Charge (oz.)114
- Liquid Line Size (In.)1-1/4 Rotalock
- Maximum Continuous Current (Amps)31.00A
- Motor Design3 Phase
- Motor Overload ProtectionExternal Enhanced
- Mounting Height (In.)23.02
- Mounting Length (In.)7-1/2
- Mounting Width (In.)7-1/2
- Oil or Lubricant TypePolyolester (POE)
- Oil Recharge (oz.)110
- R410A Capacity (Btu/Hr) @ 35 F Evaporator Temperature138,000
- R410A Capacity (Btu/Hr) @ 45 F Evaporator Temperature155,000
- Suction Line Size (In.)1-3/4 Rotalock
- Voltage (V)575/3
