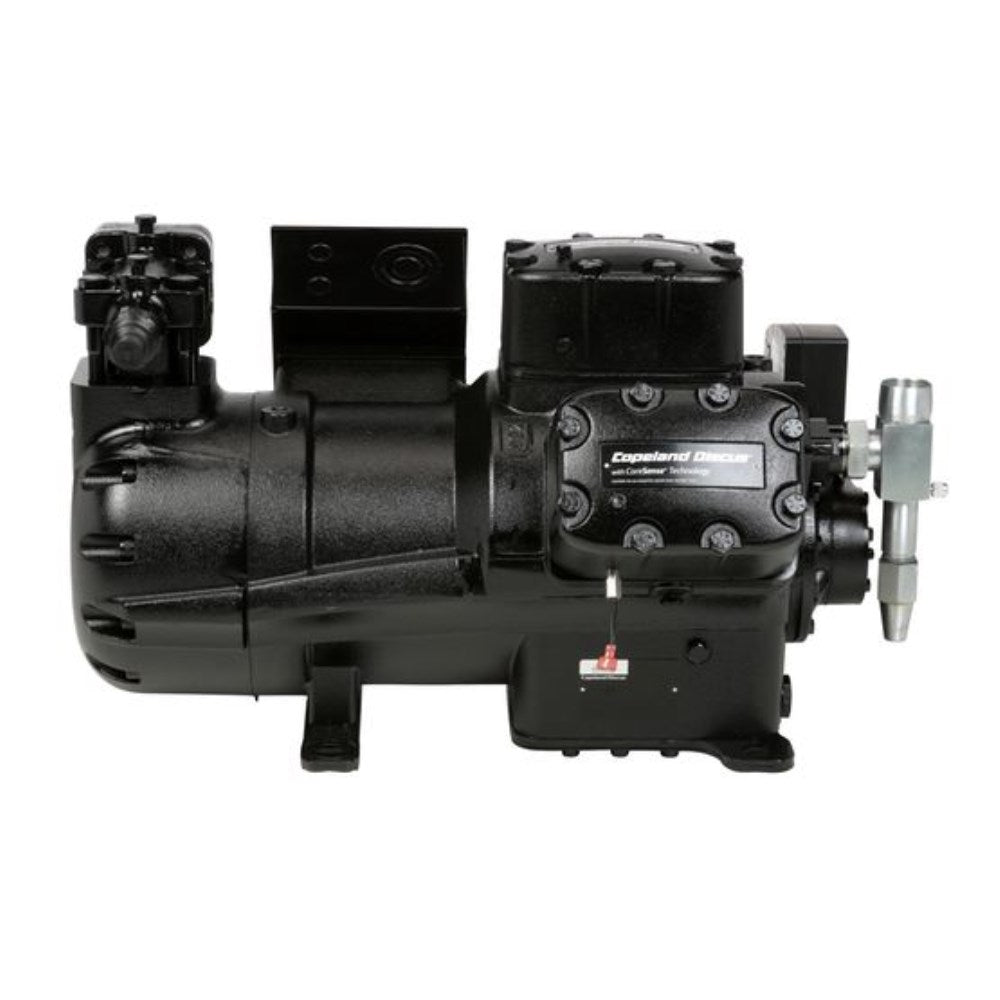

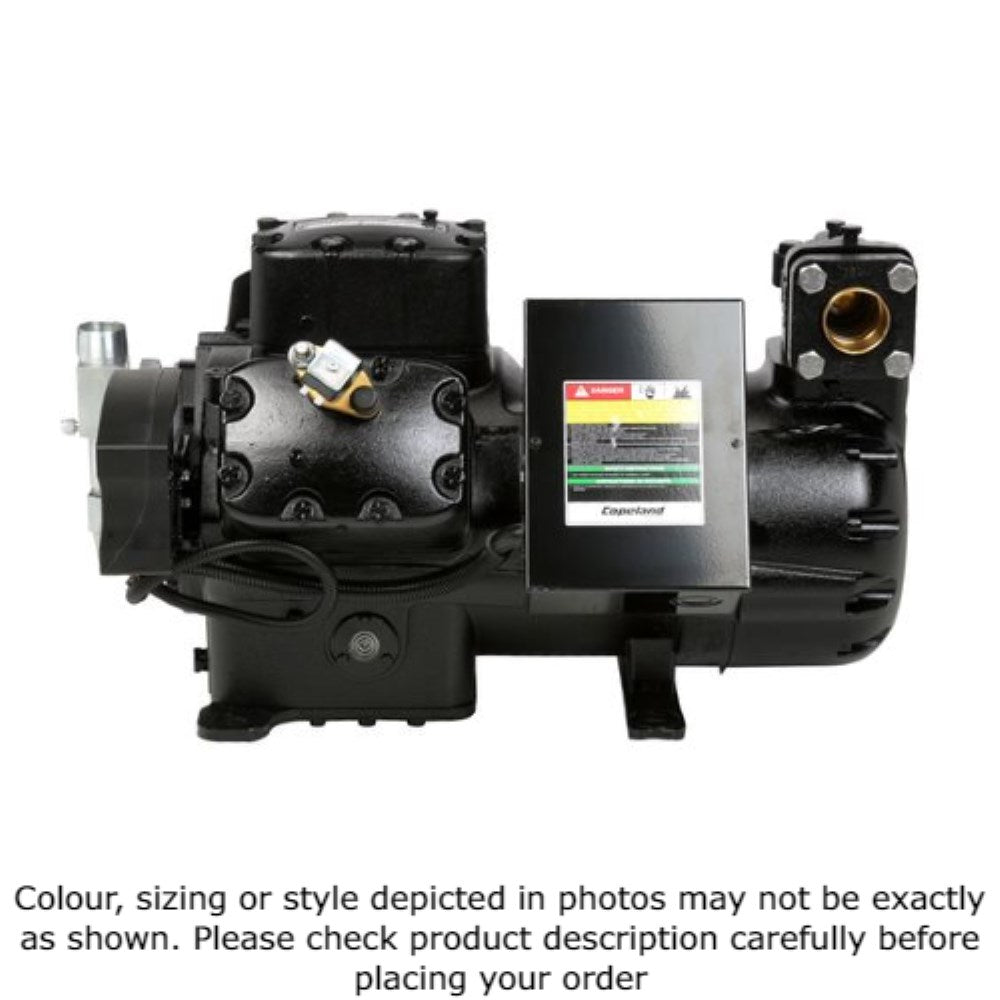

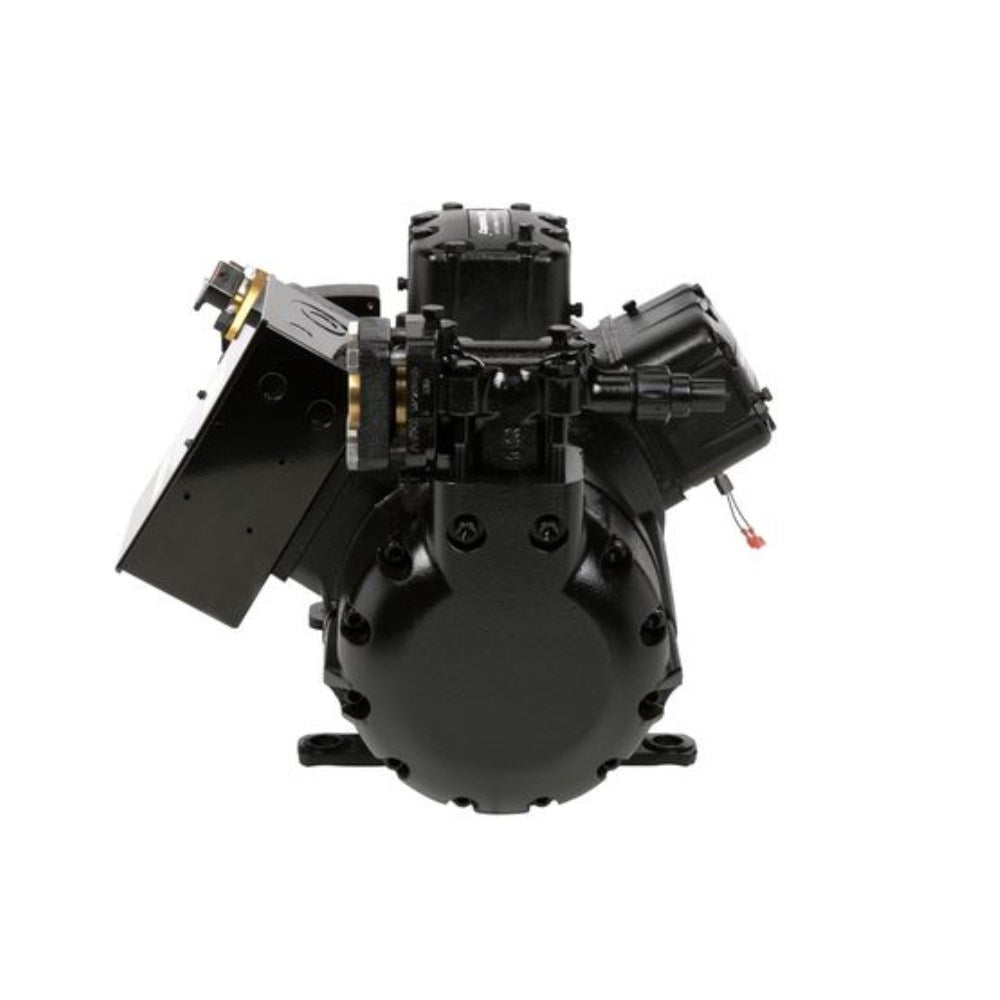

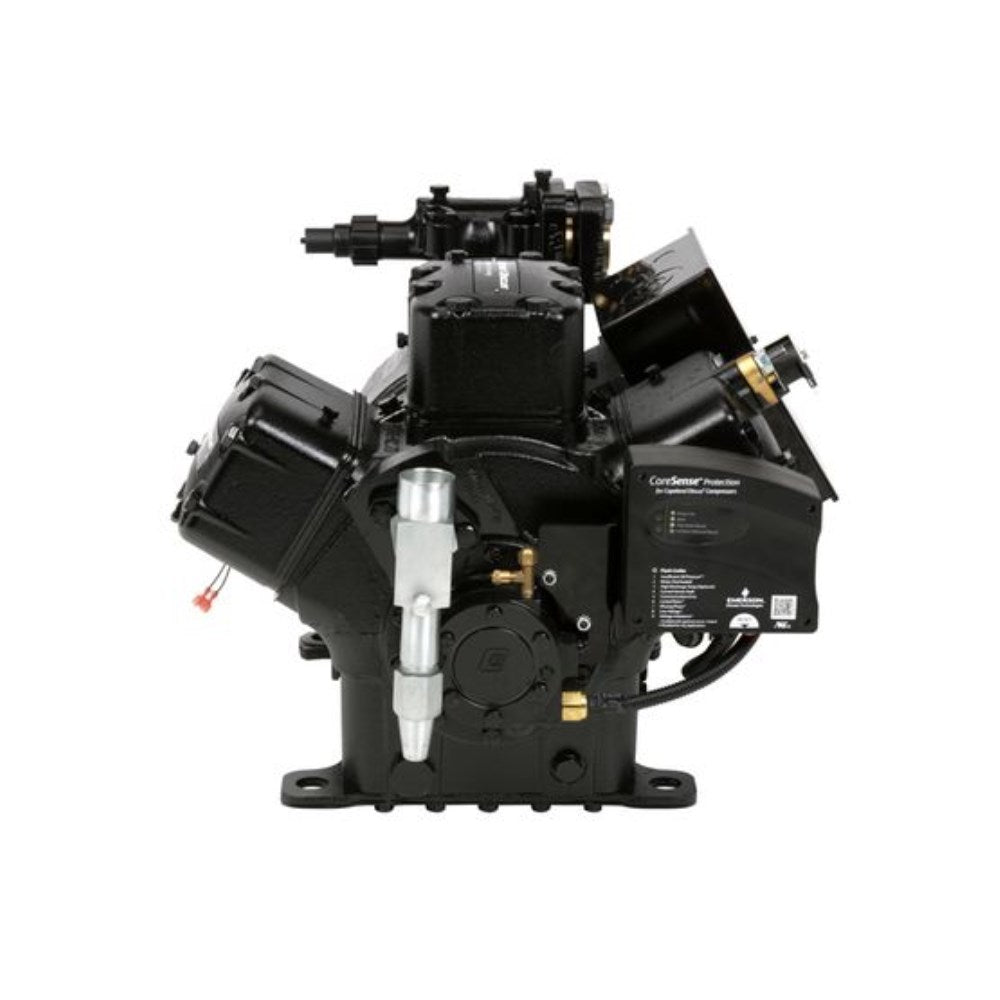

Copeland 47,000 BTU/Hr Low Temp. Discus II Compressor | 208-230/460/3

4DA3F47KE-TSK-800-CPD MFG #: 4DA3F47KE-TSK-800
$14,179.00 / EA
  • Availability: 1+Alternate, 10+Alternate, 11+Alternate, 12+Alternate, 14, 14+Alternate, 15+Alternate, 16+Alternate, 17+Alternate, 2, 2+Alternate, 3+Alternate, 4+Alternate, 5+Alternate, 6+Alternate, 7+Alternate, 8+Alternate, 9+Alternate, 903, 903+Alternate
  • Brand: Emerson Copeland
  • Compressor Family: 4 Cylinder Discus
  • Hertz: 60 Hz
  • Initial Oil Charge (oz.): 135
  • Liquid Line Connection (In.): 1-1/8 Sweat Stub
  • Motor Design: 3 Phase
  • Motor Overload Protection: Internal Thermal
  • Mounting Height (In.): 19-1/4
  • Mounting Length (In.): 15
  • Mounting Width (In.): 12
  • Net Weight (lbs): 470
  • Oil or Lubricant Type: Polyolester (POE)
  • Oil Recharge (oz.): 125
  • Overall Height (In.): 17-1/2
  • Overall Length (In.): 25.47
  • Overall Width (In.): 21-1/4
  • R404A Capacity (BTU/Hr) @ -25 F Evaporator Temperature: 47200
  • R404A Capacity (BTU/Hr) @ -40 F Evaporator Temperature: 28200
  • R407A Capacity (BTU/Hr) @ -25 F Evaporator Temperature: 38300
  • R407A Capacity (BTU/Hr) @ -40 F Evaporator Temperature: 19450
  • R407C Capacity (BTU/Hr) @ -25 F Evaporator Temperature: 34100
  • R407C Capacity (BTU/Hr) @ -40 F Evaporator Temperature: 16800
  • R407F Capacity (BTU/Hr) @ -25 F Evaporator Temperature: 38300
  • R407F Capacity (BTU/Hr) @ -40 F Evaporator Temperature: 19450
  • R448A Capacity (BTU/Hr) @ -25 F Evaporator Temperature: 40,000
  • R448A Capacity (BTU/Hr) @ -40 F Evaporator Temperature: 21400
  • R449A Capacity (BTU/Hr) @ -25 F Evaporator Temperature: 40,000
  • R449A Capacity (BTU/Hr) @ -40 F Evaporator Temperature: 21400
  • R507 Capacity (BTU/Hr) @ -25 F Evaporator Temperature: 48600
  • R507 Capacity (BTU/Hr) @ -40 F Evaporator Temperature: 29100
  • Suction Line Connection (In.): 1-5/8 Sweat Stub
  • Voltage: 208-230/3, 460/3
  • Manufacturer: Emerson Copeland Canada
  • Compressor Type: Semi-Hermetic
  • Application Temperature: Low Temperature
  • Voltage: 208-230/3, 460/3
  • Refrigerant: R404A, R407A, R407C, R407F, R448A, R449A, R507
  • Capacity @ -25 F Evaporator Temperature: 24,001 to 36,000, 36,001 to 48,000, 48,001 to 60,000
  • Capacity @ -40 F Evaporator Temperature: 12,001 to 18,000, 18,001 to 24,000, 24,001 to 36,000
  • Disclaimer: For professional use only. Refer to all information, warnings and instructions on product and package labeling and accompanying documentation provided by the product manufacturer. Product must be used in accordance with such labeling and documentation.
4 Cylinder 47,000 BTU/Hr Nominal Capacity Low Temperature Semi-Hermetic Discus II Compressor, 208-230/460/3/60, POE Oil, 3 Phase Motor with Internal Thermal Protection
