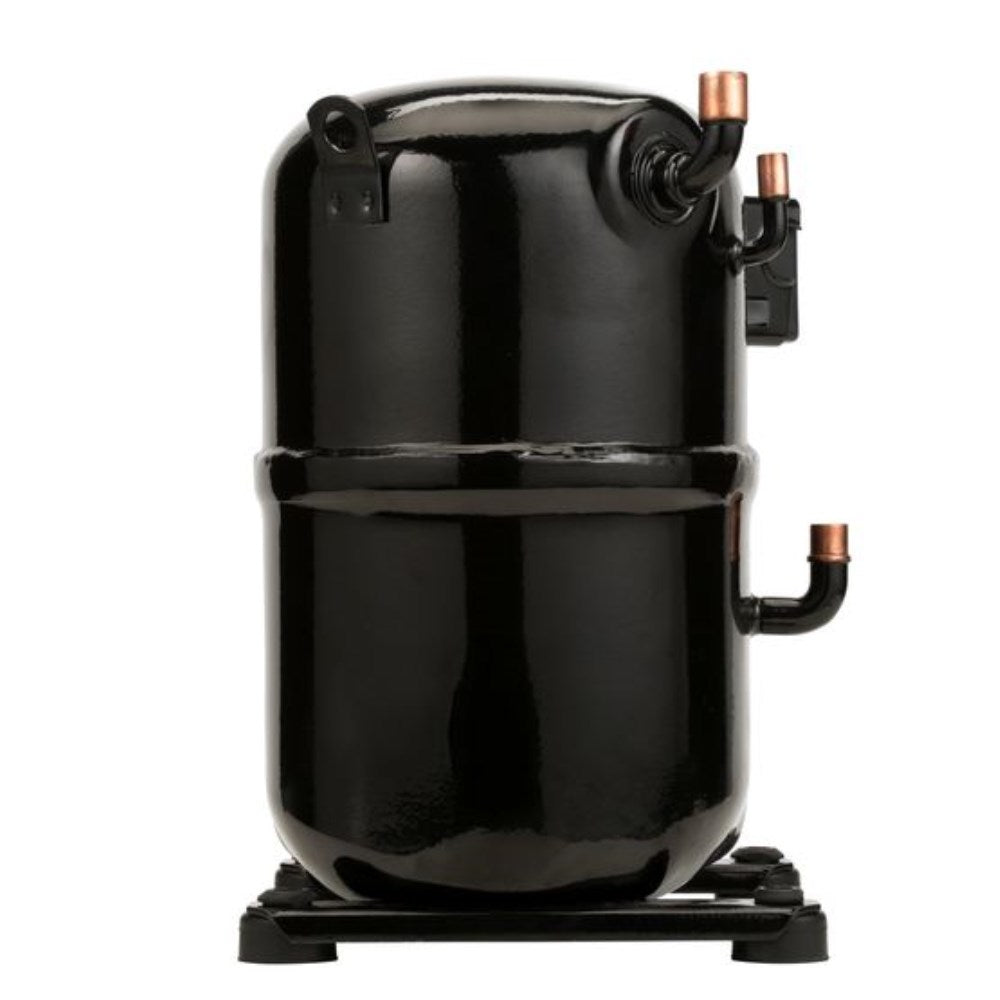

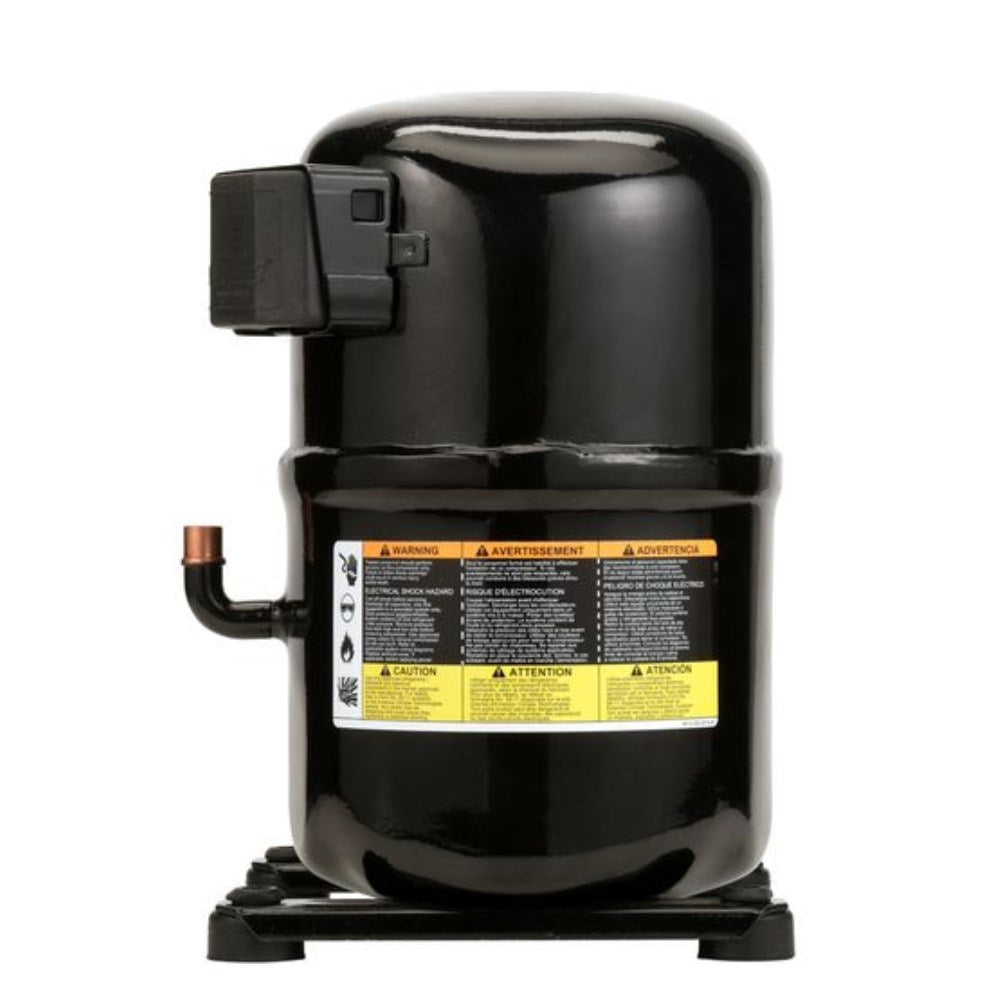

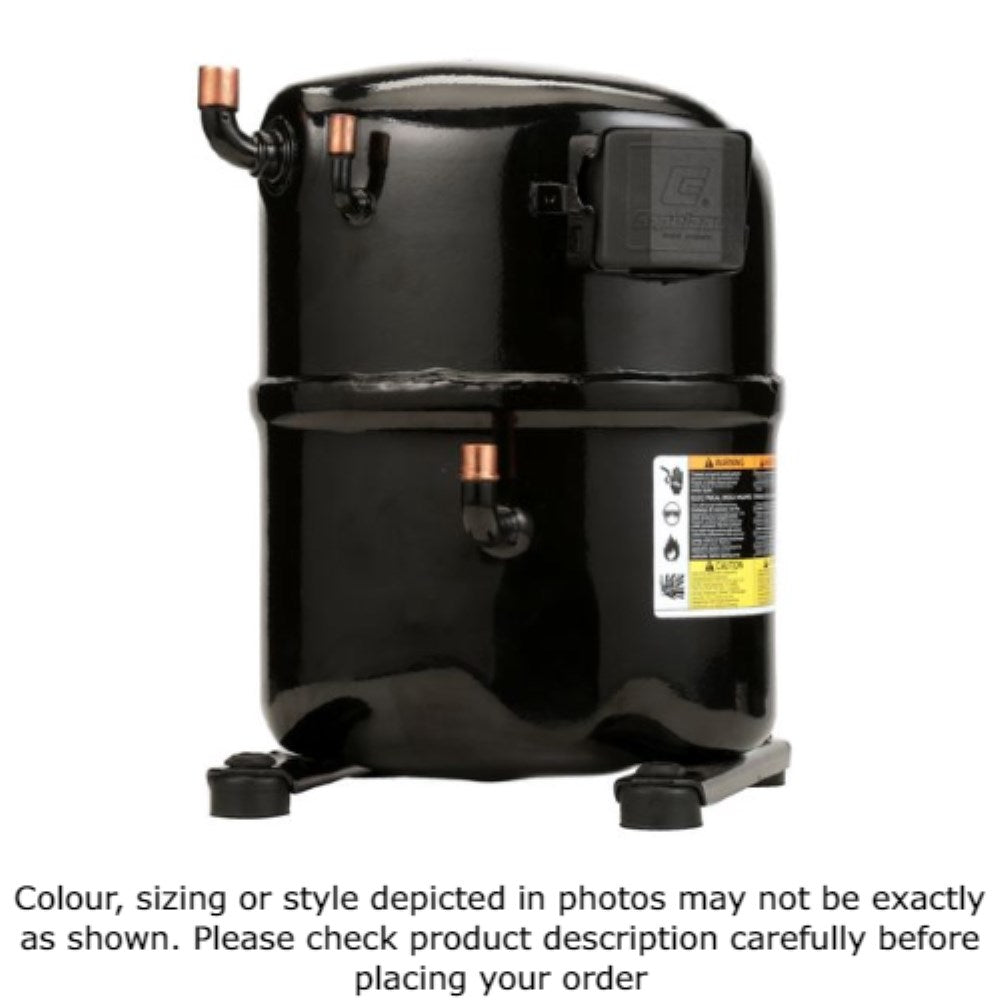

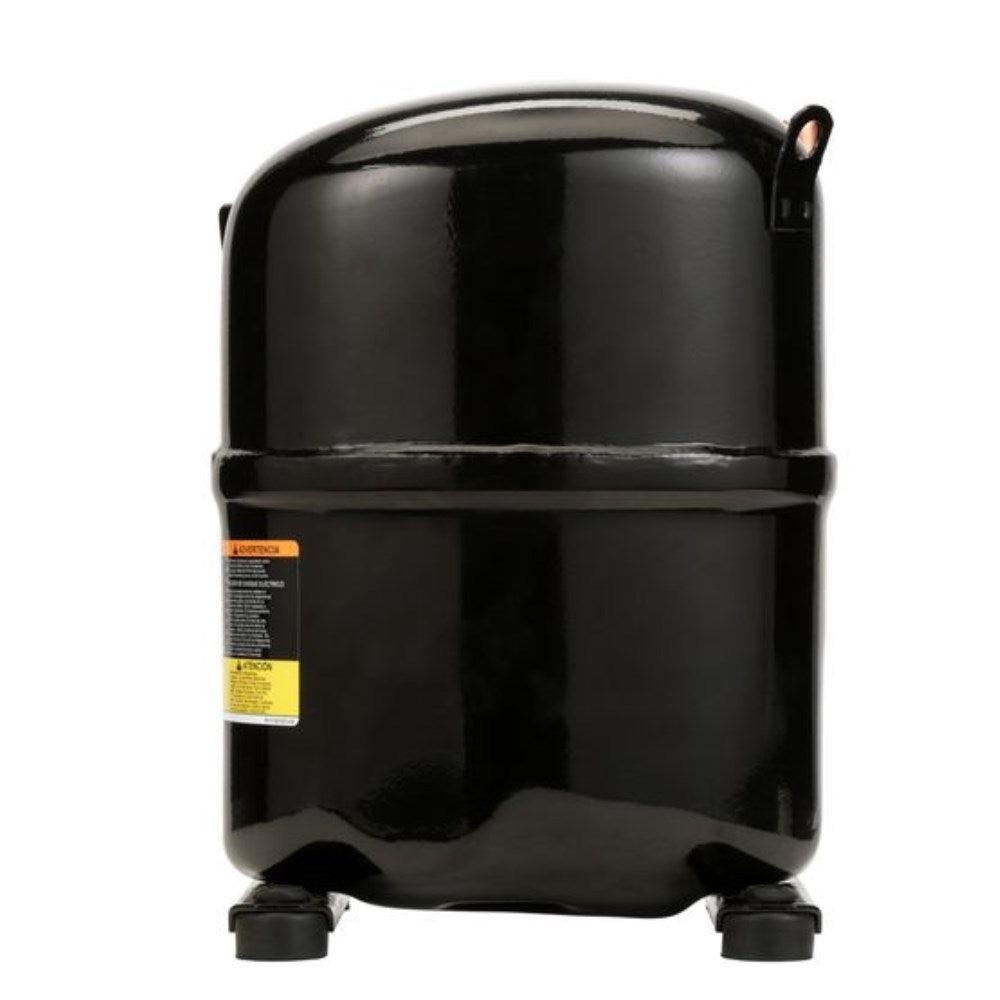

Copeland 9000 BTU/Hr Low Temp. Refrigeration Compressor with Sweat | 208-230/1

CF09K6E-PFV-945-CPD MFG #: CF09K6E-PFV-945
$3,028.00 / EA
  • Bill of Materials: Crankcase Heater, Mounting Parts, Single Phase Model Start Components, Suction and Discharge Sweat Connections
  • Brand: Emerson Copeland
  • Compressor Family: CF Low Temperature Refrigeration
  • Compressor Locked Rotor Amps (High): 87.00A
  • Electrical Connection Type: Flag Terminals
  • Hertz: 60 Hz
  • Initial Oil Charge (oz.): 45
  • Maximum Continuous Current (Amps): 23.40A
  • Motor Design: PSC
  • Motor Overload Protection: Internal Inherent
  • Mounting Height (In.): 14.19
  • Mounting Length (In.): 7-1/2
  • Mounting Width (In.): 7-1/2
  • Net Weight (lbs): 69
  • Oil or Lubricant Type: Polyolester (POE)
  • Oil Recharge (oz.): 43
  • Overall Height (In.): 13.81
  • Overall Length (In.): 10.23
  • Overall Width (In.): 9.65
  • R404A Capacity (BTU/Hr) @ -10 F Evaporator Temperature: 9800
  • R404A Capacity (BTU/Hr) @ -25 F Evaporator Temperature: 7040
  • Suction Line Connection (In.): 3/4 Sweat Stub
  • Voltage: 208-230/1
  • Manufacturer: Emerson Copeland Canada
  • Compressor Type: Hermetic
  • Application Temperature: Low Temperature
  • Voltage: 208-230/1
  • Refrigerant: R404A
  • Capacity @ -10 F Evaporator Temperature: 6001 to 12,000
  • Capacity @ -25 F Evaporator Temperature: 6001 to 12,000
  • Disclaimer: For professional use only. Refer to all information, warnings and instructions on product and package labeling and accompanying documentation provided by the product manufacturer. Product must be used in accordance with such labeling and documentation.
Copelaweld 9000 BTU/Hr Nominal Capacity Low Temperature Refrigeration Hermetic Compressor with Suction and Discharge Sweat Connections, POE Oil, 208-230/1/60, PSC Motor with Internal Inherent Protection
