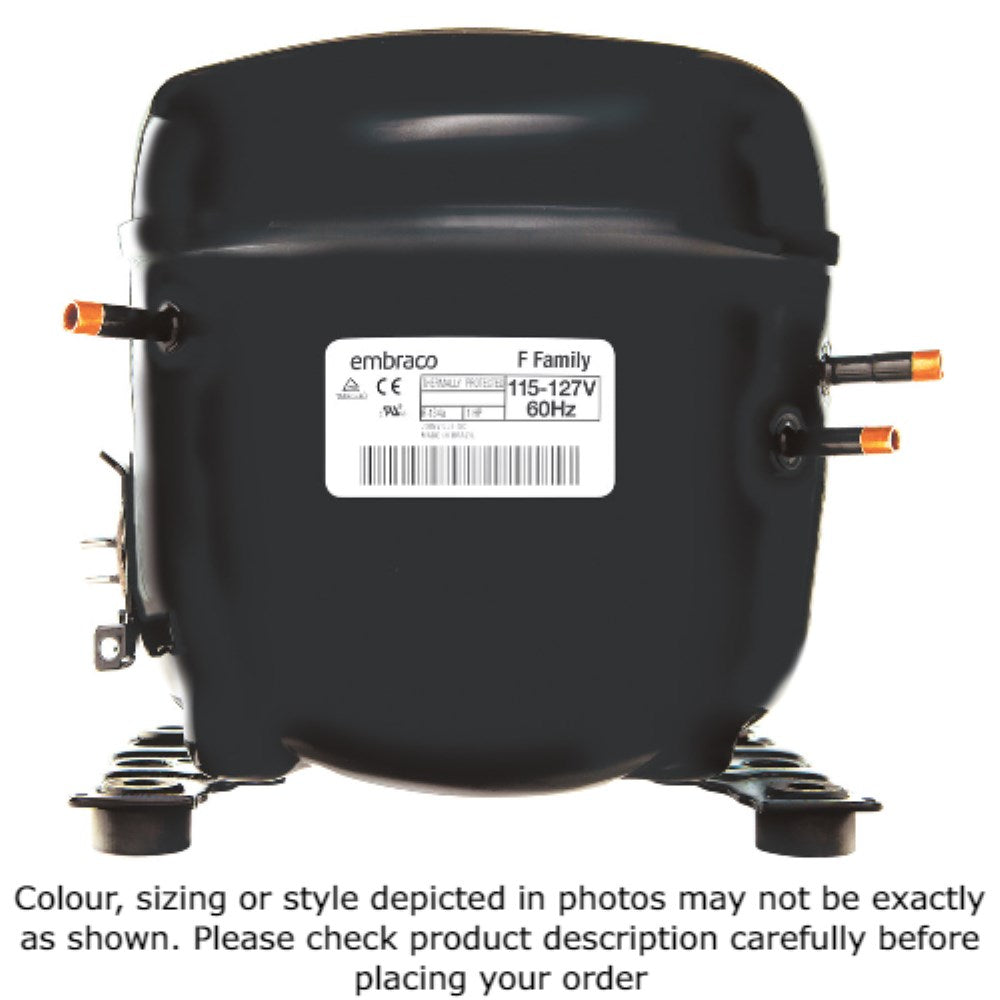

Embraco 1/4+ HP Low/Medium/High Back Pressure Compressor with High Start Torque | 115/1

FF10BX1-ALL MFG #: 30-FF10BX
$662.00 / EA
  • Availability: 4, 4+Alternate
  • Blended Capacity (BTU/Hr) @ -10 F Evaporator Temperature: 915 @ 130 F Condensing/90 F Liquid/90 F Ambient/90 F Suction
  • Blended Capacity (BTU/Hr) @ 14 F Evaporator Temperature: 1644
  • Blended Capacity (BTU/Hr) @ -22 F Evaporator Temperature: 625
  • Blended Capacity (BTU/Hr) @ 23 F Evaporator Temperature: 2012
  • Blended Capacity (BTU/Hr) @ 32 F Evaporator Temperature: 2442
  • Blended Capacity (BTU/Hr) @ 45 F Evaporator Temperature: 3200 @130 F Condensing/90 F Liquid/90 F Ambient/90 F Suction
  • Blended Capacity (BTU/Hr) @ 5 F Evaporator Temperature: 1328
  • Blended Capacity (BTU/Hr) @ 50 F Evaporator Temperature: 3510
  • Brand: Embraco
  • Compressor Application: Beer Coolers, Dehumidifiers, Drinking Water Coolers, Ice Machines, Reach In Refrigerators
  • Compressor Family: F Series
  • Compressor Horsepower Rating: 1/4 +
  • Hertz: 60 Hz
  • Locked Rotor Amps: 32.00A
  • Motor Design: Capacitor Start Induction Run (CSIR)
  • Overall Height (In.): 8.1
  • Overall Length (In.): 6.8
  • Overall Width (In.): 8.02
  • RPM: 3,500
  • Starting Torque: High
  • Suitable Replacement for: Tecumseh AEA3430AXA, Tecumseh AEA4430AXA
  • Voltage: 103-135 V
  • Manufacturer: Alltemp Products Company Limited
  • Compressor Type: Hermetic
  • Application Temperature: Low Temperature, Medium Temperature, High Temperature
  • Voltage: 115/1
  • Refrigerant: R404A, R407A, R407C, R407F, R448A, R449A
  • Capacity @ 50 F Evaporator Temperature: 1 to 6000
  • Capacity @ 45 F Evaporator Temperature: 1 to 6000
  • Capacity @ -10 F Evaporator Temperature: 1 to 6000
  • Disclaimer: For professional use only. Refer to all information, warnings and instructions on product and package labeling and accompanying documentation provided by the product manufacturer. Product must be used in accordance with such labeling and documentation.
1/4+ HP Low/Medium/High Back Pressure Compressor, Blend Refrigerants, 115/1/60, High Starting Torque
