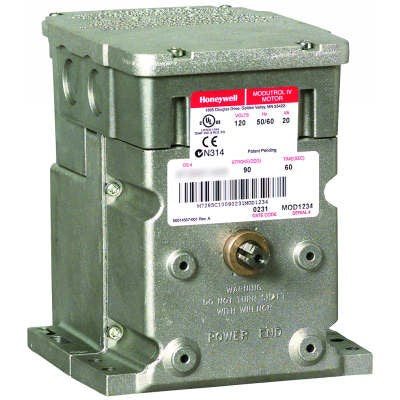

Honeywell 150 lb/in Non-Spring Return Proportional Control Actuator | 24V
Description
Read more
Specification
BrandHoneywell
Manufacturer["Honeywell"]
ModelM9184D1021/U-HON
Voltage (V)24 V
Manufacturer NumberM9184D1021/U
Depth (in)7.3125
Weight (lbs)6.5
Width (in)5.5
Length (in)6.4375
Mounting StyleFoot Mounted
RotationCW
AdjustableorfixedstrokeAdjustable
ElectricalconnectiontypeQuick-Connect Terminals
FailsafemodeNon-Spring Return (NSR)
FeedbackNo
Maximumambienttemperature150 F (60 C)
Maximumangleofrotation90 to 160 Degrees
Minimumambienttemperature-40 F (-40 C)
Nominaltimingsec30 to 60
Torqueratinglbin150
Disclaimer
For professional use only. Refer to all information, warnings and instructions on Product and package labeling and accompanying documentation provided by the Product manufacturer. Product must be used in accordance with such labeling and documentation.
