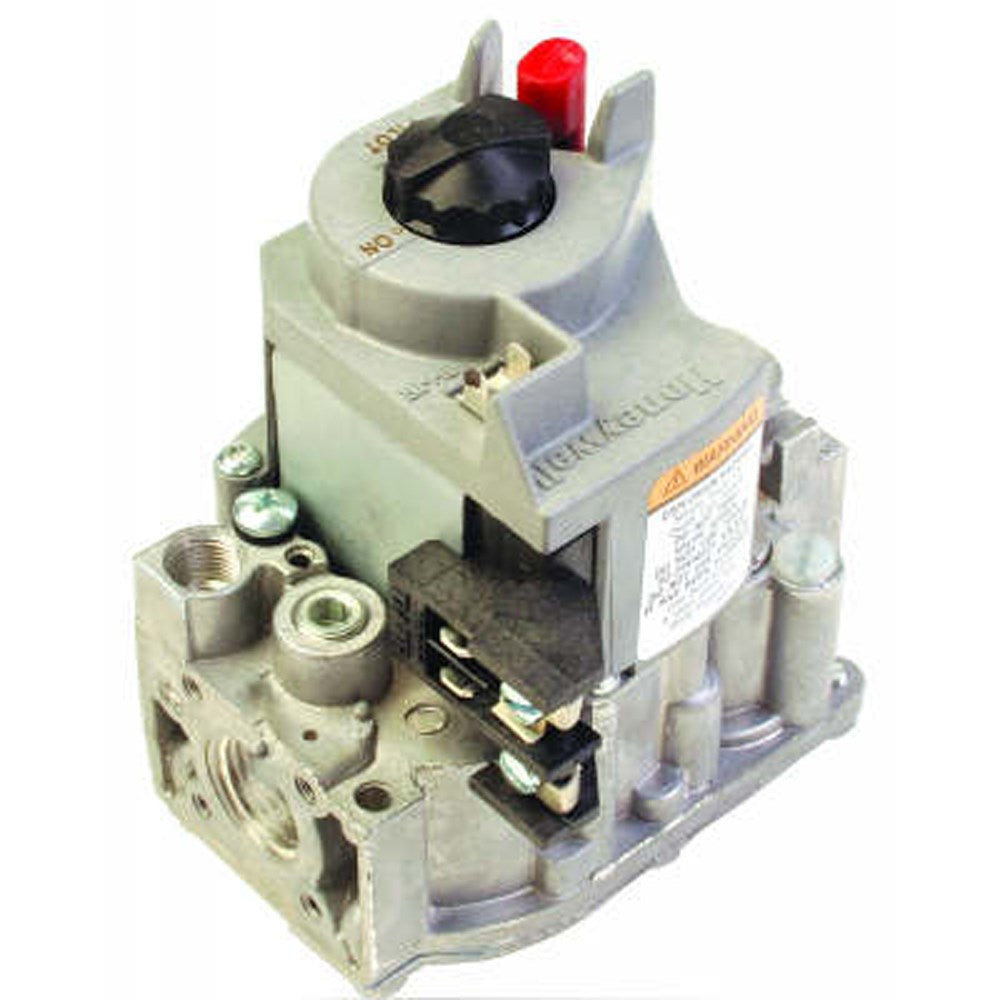

Resideo Single Stage Standing Pilot Combination Gas Valve | 24 VAC | Standard Opening

SKU #:VR8200A2322-RESMFG #:VR8200A2322/U
Resideo

Resideo Single Stage Standing Pilot Combination Gas Valve | 24 VAC | Standard Opening

SKU #:VR8200A2322-RESMFG #:VR8200A2322/U
$537.00 / EA

    Description

    Single Stage, 24 VAC, Standard Opening, Standing Pilot Combination Gas Valve, 1/2" X 1/2" Inlet/Outlet, Setpoint 3.5" WC. Resideo is in association with Honeywell Home.

    Documents

    There are no documents available.

    Specifications

    • BrandResideo
    • Electrical Connection1/4 Quick-Connect Male Terminals
    • Gas Valve Body StyleStraight-Through
    • Hertz60 Hz
    • LP Conversion Kit IncludedYes
    • Maximum Operating Temperature175 F (79 C)
    • Minimum Operating Temperature0 F (-18 C)
    • Pilot Gas Connection Size (In.)1/4 OD
    • Pressure Setting Range (In. WC)3-1/2
    • Pressure Tap Connection Size (In.)1/8 NPT with Plug
    • Valve Capacity (BTU/Hr)130,000
    • ManufacturerResideo Technologies Inc.
    • Ignition TypeStanding Pilot
    • Gas Valve TypeStandard Opening
    • Number of Stages1
    • Coil Voltage24 VAC
    • Gas TypeNG/LP
    • Inlet Connection (In.)1/2
    • Outlet Connection (In.)1/2
    • DisclaimerFor professional use only. Refer to all information, warnings and instructions on product and package labeling and accompanying documentation provided by the product manufacturer. Product must be used in accordance with such labeling and documentation.
