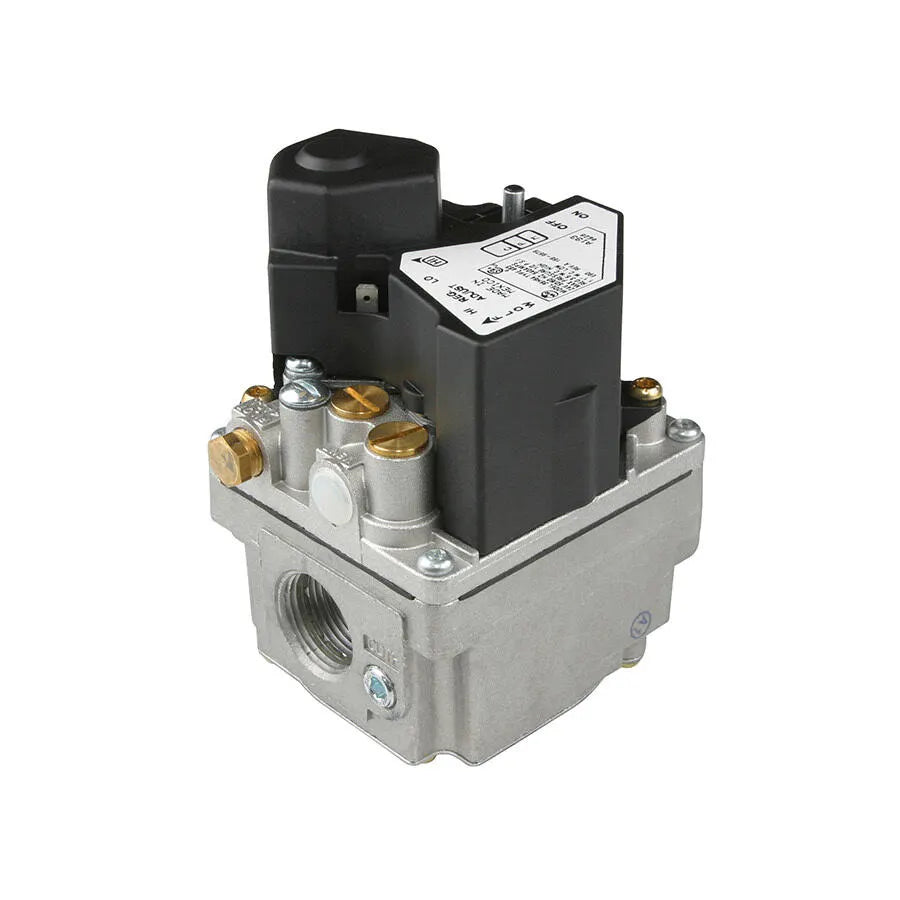

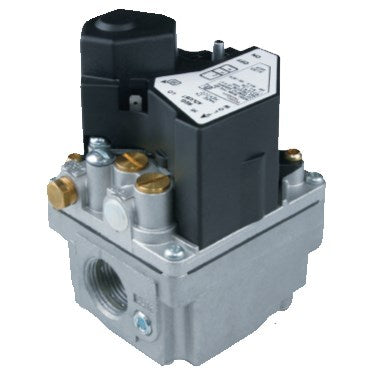

Copeland Universal Electronic Ignition Gas Valve | Fast Open | 3/4" X 3/4" | 24VAC
Description
Read more
Specification
BrandCopeland
Manufacturer["Copeland Canada"]
Model36H64-463-EME
Amperage0.54A
Inlet Connection Size0.75
Manufacturer Number36H64-463
Outlet Connection Size0.75
Gas TypeNG/LP
Gas Valve TypeFast Opening
Maximum Operating Temperature175 F (79 C)
Minimum Operating Temperature-40 F (-40 C)
CompressorstagesTwo Stage
GasvalvebodystyleStraight-Through
IgnitiontypeDirect Spark Ignition, Hot Surface Ignition, Proven and Intermittent Pilot
LpconversionkitincludedYes
Pilotgasconnectionsizein0.25 OD
Pressuresettingrangeinwc1.1/3.5
Pressuretapconnectionsizein0.125 NPT
ReducerbushingincludedYes
Valvecapacitybtuhr300000
Disclaimer
For professional use only. Refer to all information, warnings and instructions on Product and package labeling and accompanying documentation provided by the Product manufacturer. Product must be used in accordance with such labeling and documentation.
