Discontinued Model

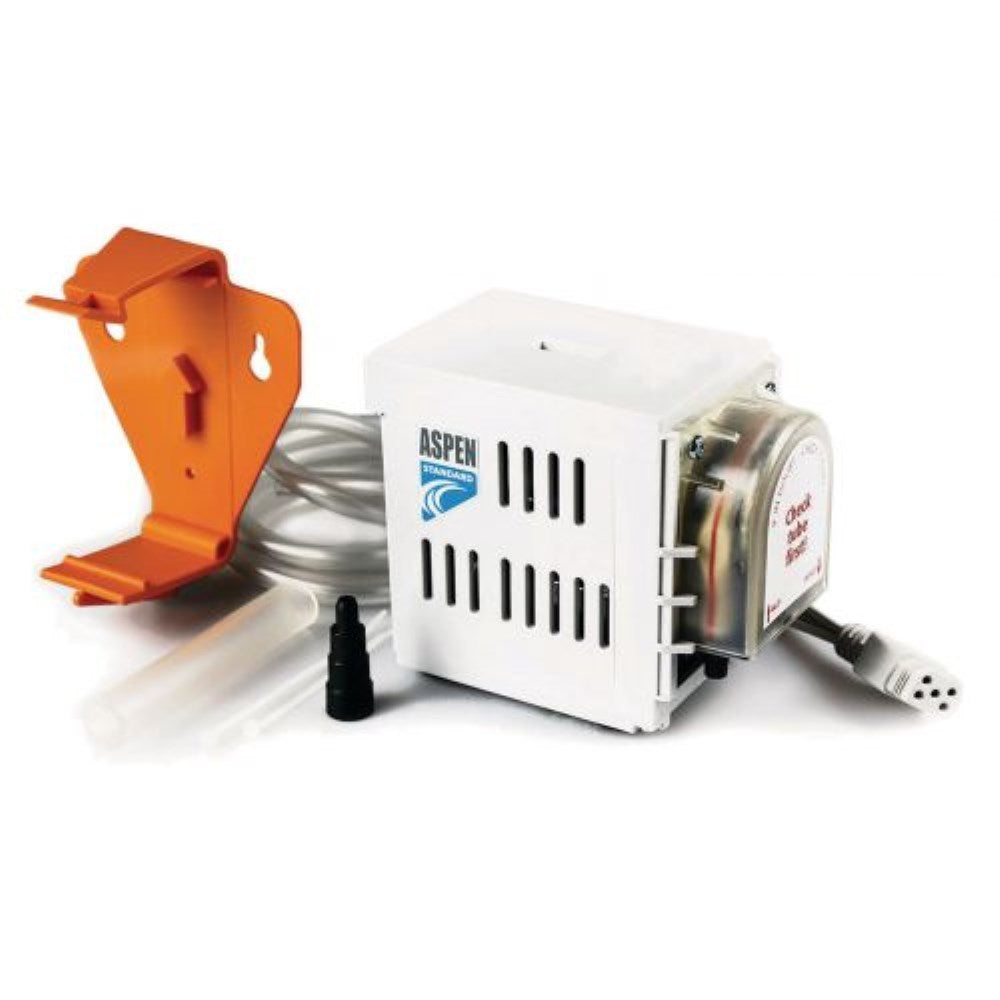

Aspen Universal Peristaltic Mini-Split Condensate Pump Kit without Reservoir | 230V
Description
Read more
Specification
BrandAspen Pumps Group
Manufacturer["RectorSeal"]
Model83966-REC
Voltage (V)240 V, 208-230 V
Amperage0.20A
Manufacturer Number83966
Wattage46
Height (in)4-1/2
Sound Pressure Level (dBA)47
Width (in)3
Package Contents(1) 6' Modular Power Cable, (1) Inlet Tube and Adaptor, (1) Universal Mounting Bracket, (1) 10' Temperature Sensor Leads, (1) 5' X 1/4" ID Vinyl Tubing
Length (in)5.25
Maximum Operating Temperature104 F (40 C)
Pump Performance (GPH at 10' Head)1.65
Pump Performance (GPH at 5' Head)1.65
Pump Product Type["Mini-Split/Ductless Condensate Pumps","Condensate Pumps"]
TubingIncluded
Pumpperformancegphat0head1.65
Pumpperformancegphat15head1.65
Pumpperformancegphat20head1.65
Pumpperformancegphat25head1.65
Pumpperformancegphat30head1.65
Pumpperformancegphat39head1.65
Documentation
Manuals
83966-installationmanual.pdfData Sheets
83966-submittal.pdfDisclaimer
For professional use only. Refer to all information, warnings and instructions on Product and package labeling and accompanying documentation provided by the Product manufacturer. Product must be used in accordance with such labeling and documentation.
