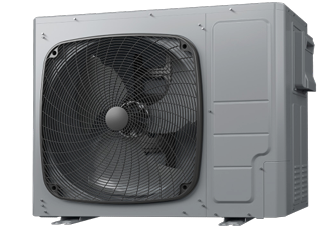

Manufacturer["Allied Air Enterprises"]
Model7SCP18V24P-ALD
Compressor DesignBLDC Rotary
Voltage (V)208-230
RefrigerantR454B
Efficiency SEER219
Manufacturer Number7SCP18V24P
Nominal Capacity (Tons)2
Airflow (CFM)3000
Compressor Rated Load Amps (208/230V)14.5
Compressor TypeBLDC Rotary
Depth (in)17.125
Factory Charge (lbs)3.5625
Fan Motor Rated Output (Watts)160
Height (in)30
HSPF2 Rating10
Max Fuse Size / Fusible Max30
Maximum Line Set Length (ft)150
Minimum Circuit Ampacity21
Refrigerant Charge (lbs)3.5625
Refrigerant ControlElectronic Expansion Valve
Shipping Weight (lbs)161
Sound Pressure Level (dBA)54
Suction Line Size (in)0.75
Weight (lbs)137
Width (in)40.25
Heat/Cool FunctionHeating and Cooling
Standard Outdoor Cooling Temperature Range5 F to 115 F (-15 C to 46 C)
Fanmotorfullloadamps208230v1.2
