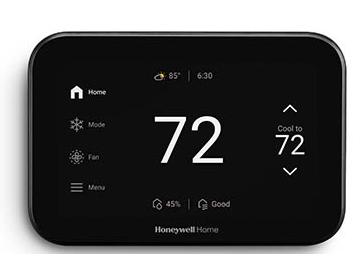

Elite Pro 1200 Smart Thermostat in Black, 5-Inch
Description
Read more
Specification
BrandResideo
Manufacturer["Resideo Technologies Inc."]
ModelTHX1200B6/U-RES
Manufacturer NumberTHX1200B6/U
CertificationsENERGY STAR Certified
ColourBlack
Depth (in)1.06
Height (in)4.92
Width (in)4.92
Package ContentsThermostat, UWP mounting system, Screws and anchors, R/C jumper, Quick Start Guide, Thermostat ID card, Wire labels, User Guide
Mounting StyleWall Mount
Operating Humidity Range5% to 90% RH (non-condensing)
Battery IncludedNo
Maximum Operating Temperature102 F (39 C)
Switch TypeSPDT
Frequency (Hz)50/60
Sensor TypeThermistor
TypeProgrammable
ChangeoverAuto
Current0.02-1.0
FanswitchpositionsAuto-On-Circulate-Follow Schedule
FeaturesTouchscreen
Powersupply24Vac
SensorelementThermistor
SystemswitchpositionsHeat-Off-Cool-Auto-Emergency Heat
ThermostatapplicationResidential
WificonnectionYes
