Discontinued Model

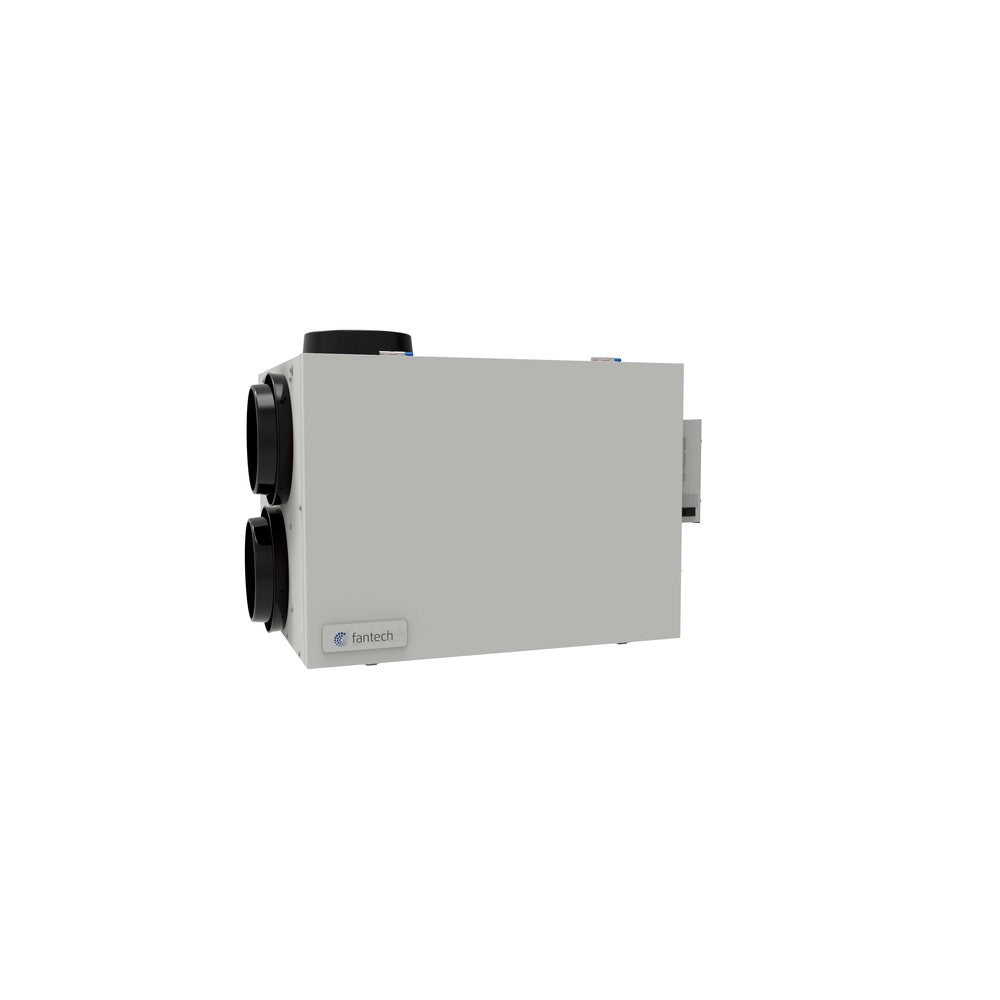

Fantech Horizontal Heat Recovery Ventilator | 8" Duct | 267 CFM | 120/1
Description
Read more
Specification
BrandFantech
Manufacturer["FANTECH LIMITED"]
ModelSHR260RD-FAN
Voltage (V)120/1
Amperage2.50A
Manufacturer Number99298
Airflow CFMNone
Wattage300
Cabinet Depth (in)25.25
Cabinet Width (in)20.5
Weight (lbs)79.4
Flow ConfigurationHorizontal
Length (in)32.875
Frequency (Hz)60 Hz
Airflowcfmat04inwc267
CabinetfinishPre-Painted
Cabinetlengthin27.875
Cabinetmaterial24 Gauge Galvanized Steel
Collardiameterin8 Round
CorematerialAluminum
Coresizein12 X 12 X 11.5
InsulationmaterialHigh Density Expanded Polystyrene
Nominalfiltersizein11.5 X 11.4 X 0.125
Numberoffilters4
RecoveryventilatortypeHeat Recovery
Documentation
Parts & Components
shr_260rd_partslist.pdfDisclaimer
For professional use only. Refer to all information, warnings and instructions on Product and package labeling and accompanying documentation provided by the Product manufacturer. Product must be used in accordance with such labeling and documentation.
