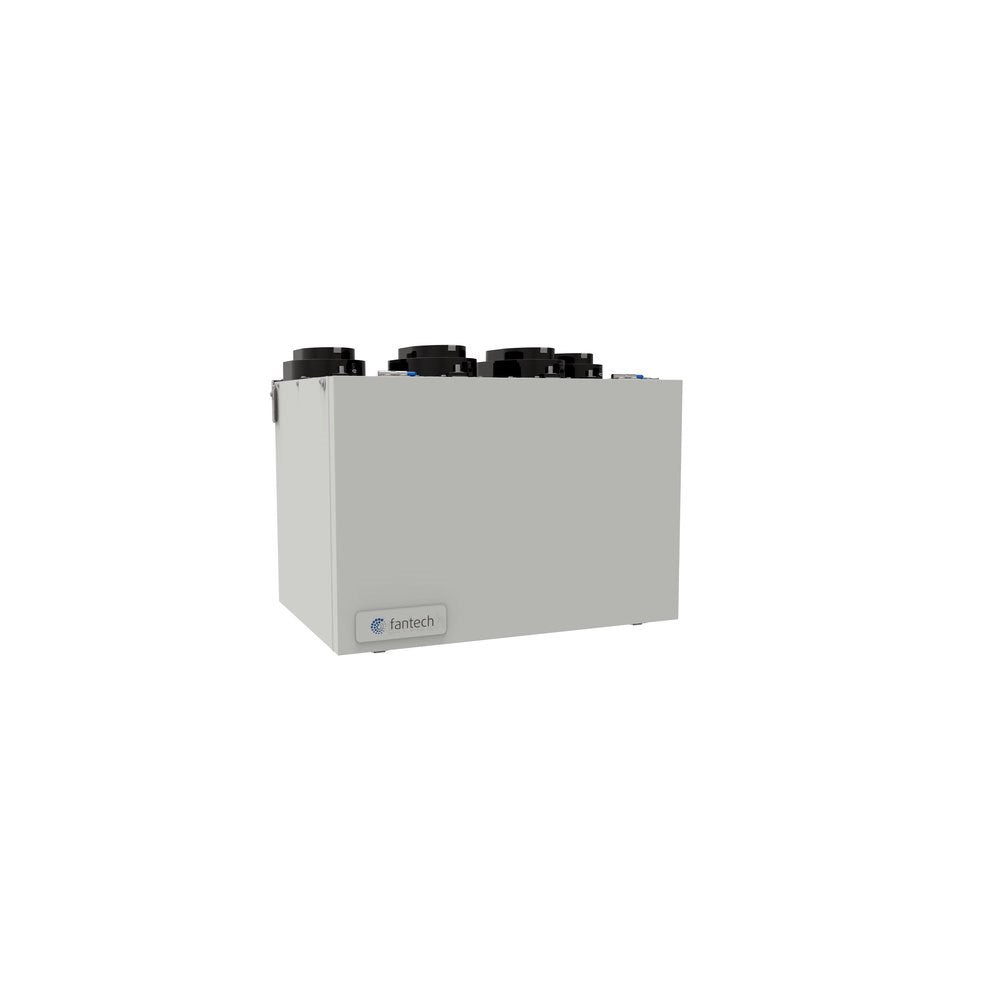

Fantech Vertical Heat Recovery Ventilator | 6" Duct | 159 CFM | 120/1
Description
Read more
Specification
BrandFantech
Manufacturer["FANTECH LIMITED"]
ModelVHR150-FAN
Voltage (V)120/1
Amperage1.20A
Manufacturer Number99203
Airflow CFMNone
Wattage156
Cabinet Depth (in)17.1875
Cabinet Width (in)16.25
Weight (lbs)48
Width (in)18.4375
Flow ConfigurationVertical
Frequency (Hz)60 Hz
Airflowcfmat04inwc159
CabinetfinishPre-Painted
Cabinetlengthin23.75
Cabinetmaterial24 Gauge Galvanized Steel
Collardiameterin6 Oval
CorematerialAluminum
Coresizein9 X 9 X 15
InsulationmaterialHigh Density Expanded Polystyrene
Nominalfiltersizein8.5 X 15 X 0.125
Numberoffilters2
RecoveryventilatortypeHeat Recovery
Documentation
Data Sheets
vhr150-vhr150r_dimensions_ecc94512-7538-4238-8daf-4ce66c466d80.pdf vhr150_spec_sheet.pdfParts & Components
vhr150_partslist.pdfDisclaimer
For professional use only. Refer to all information, warnings and instructions on Product and package labeling and accompanying documentation provided by the Product manufacturer. Product must be used in accordance with such labeling and documentation.
