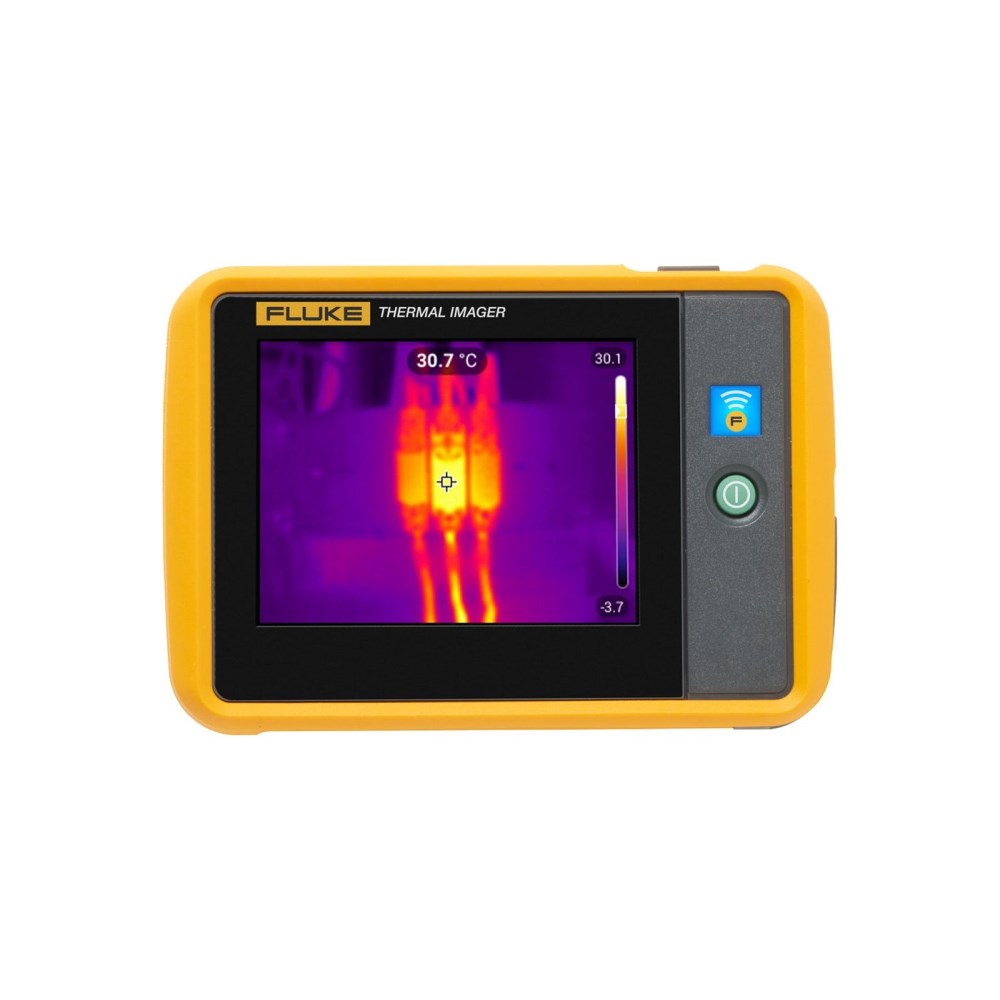

Fluke PTI120 Compact Pocket Thermal Camera
Description
Read more
Specification
BrandFluke
Manufacturer["Fluke Electronics Canada LP"]
ModelPTI120-FLU
Manufacturer Number5074148
Depth (in)1
Weight (lbs)0.51
Width (in)3.5
Battery Life (Hours)2
Length (in)5
Operating Humidity Range0 to 95% RH Non-Condensing
Maximum Temperature Measured150 C, 213 to 392 F (101 to 200 C)
Minimum Temperature Measured-20 C, -20 to -4 F (-29 to -20 C), -2 to 14 F (-19 to -10 C)
Battery IncludedYes
Maximum Operating Temperature122 F (50 C)
Minimum Operating Temperature14 F (-10 C)
Individual / SetIndividual
Power SourceBattery
Blendmode0 to 100% Continuous
CamerafocusFixed
Distancetospotratio130:1
Exportedimagefileformatis2
FeaturesWireless
Fieldofviewdegrees50 X 38 Thermal, 68 X 52 Visual
Framerate9 Hz
Imageresolutionpixels320 X 240
ImagingproducttypeStand Alone Thermal Cameras
Infraredresolutionpixels120 X 90
IngressprotectionipratingIP54
Maximumoperatingaltitudem2000
Radiofrequencycommunication2412 to 2462 MHz
TemperaturedisplayscaleCelsius Only
ThermalcolourpalettesHigh Contrast
Documentation
Manuals
pti120_usermanual.pdfData Sheets
pti120_tds.pdfDisclaimer
For professional use only. Refer to all information, warnings and instructions on Product and package labeling and accompanying documentation provided by the Product manufacturer. Product must be used in accordance with such labeling and documentation.
