Discontinued Model

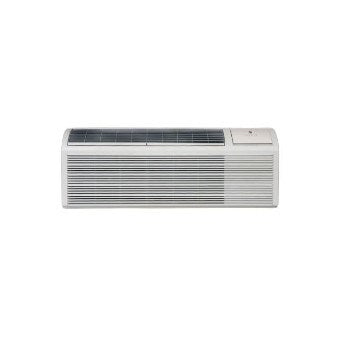

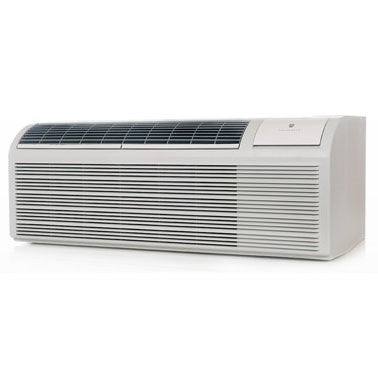

Friedrich ZoneAire Premier 7000 BTU/Hr Cool/Heat Pump PTAC | 208-230V
Description
Read more
Specification
BrandFriedrich
Manufacturer["Friedrich Air Conditioning"]
ModelPDH07K3SG-FRI
Voltage (V)208-230/1
Manufacturer NumberPDH07K3SG
Airflow CFM345
Cooling Capacity (BTU/Hr)7000
Depth (in)21.5
Energy Efficiency Rating (EER)13.0/13.0
Heating Capacity (BTU/Hr)6000/5800, 6000
Height (in)16
Weight (lbs)133
Width (in)42
Heat/Cool FunctionHeating and Cooling
Frequency (Hz)60 Hz
Compressorlockedrotoramps13.00A
Compressorratedloadamps2.50A
Coolingamperage2.70/2.90A
Coolingwattage550/535
Cutoutdimensionsin16.25 X 42.25

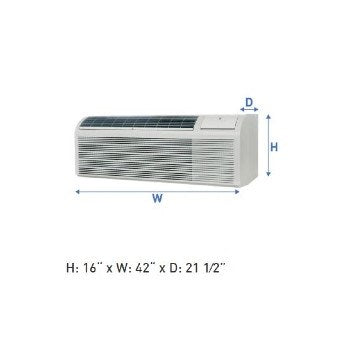

Dimensionswithfrontin16 X 42 X 21.5
Heatingwattage485/470
Moistureremovalpintshr1.7
Nominalheatersizekw3.5
Sleevedimensionsin16 X 42 X 13.75
Documentation
Data Sheets
pdh07k3sg-spec.pdf zoneaire-20premier-20submittal-1caabf23_63f33e27-d2aa-4c97-bbf6-f20c66fd2740.pdfParts & Components
pdh07k3sg_partslist.pdfDisclaimer
For professional use only. Refer to all information, warnings and instructions on Product and package labeling and accompanying documentation provided by the Product manufacturer. Product must be used in accordance with such labeling and documentation.
