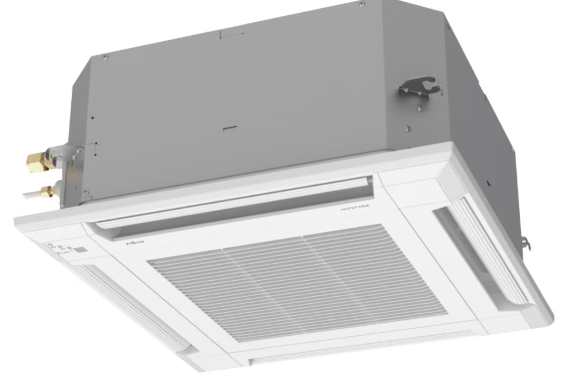

Fujitsu 12,000 Compact Cassette Indoor Unit
Description
Read more
Specification
BrandFujitsu
Manufacturer["FUJITSU GENERAL AMERICA INC"]
ModelACUH12KUAS-FUJ
Compressor DesignTwin BLDC Rotary Inverter
RefrigerantR32
Capacity (BTU/Hr)12000
Efficiency EER214.1
Efficiency SEER223.7
Manufacturer NumberACUH12KUAS
Nominal Capacity (Tons)1
ZoningMulti-Zone
Compressor TypeTwin BLDC Rotary Inverter
Cooling Airflow (H/M/L/SL)HIGH 359, MED 312, LOW 277, QUIET 241
Cooling Capacity (BTU/Hr)12000
Depth (in)22.44 (22-7/16)
Drain Connection (in)1.00 (1)
Enhanced Low Ambient Outdoor Cooling Temperature Range-5 to 122 F (-21 to 50 C)
Heating Airflow (H/M/L/SL, CFM)HIGH 359, MED 312, LOW 277, QUIET 241
Height (in)9.63 (9-5/8)
HSPF2 Rating11.5
Max Fuse Size / Fusible Max15
Minimum Circuit Ampacity11.7
Minimum Outdoor Cooling Temperature-5 F (-21 C)
Outdoor Heating Temperature Range-5 to 75 F (-21 to 24 C)
Sound Pressure Level (dBA)37
Suction Line Size (in)0.38 (3/8)
Weight (lbs)33
Width (in)22.44 (22-7/16)
Fan TypeTurbo Fan
Heat/Cool FunctionHeating and Cooling
Indoor Unit StyleCeiling Cassette
Standard Outdoor Cooling Temperature Range-5 to 122 F (-21 to 50 C)
CompatibleoutdoorunitsmultizoneAOUH18KWAS2, AOUH24KWAS3, AOUH36KWAS4, AOUH45KWAS5
CompatibleoutdoorunitssinglezoneAOUH12KUAS1
ControltypeHand Held Remote
EvaporatorfantypeBLDC Motor With Cross-Flow Fan
Fanmotoroutput54
FanspeedsHIGH 359, MED 312, LOW 277, QUIET 241
Maximumcoolingairflowcfm359
Maximumheatingairflowcfm359
Minindoornoiseleveldba29
TemperaturecontrolRemote controller
Voltagev208-230
Documentation
Manuals
ACUH12KUAS-FUJinstall.pdfData Sheets
ACUH12KUAS-FUJsubmittal.pdfTechnical & Engineering Tools
ACUH12KUAS-FUJdesandtech.pdfDisclaimer
For professional use only. Refer to all information, warnings and instructions on Product and package labeling and accompanying documentation provided by the Product manufacturer. Product must be used in accordance with such labeling and documentation.
