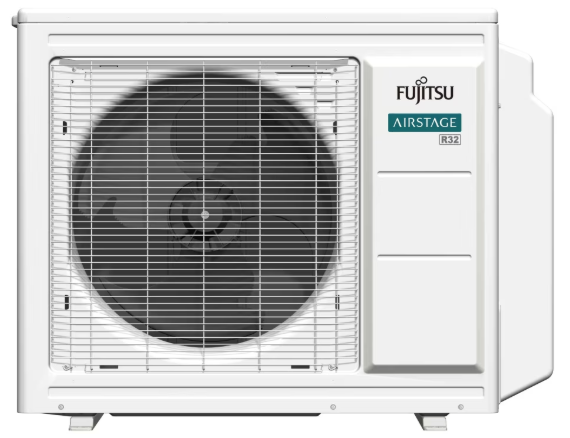

Fujitsu 18,000 Btu/Hr Multi-Zone Outdoor Unit
Description
Read more
Specification
BrandFujitsu
Manufacturer["FUJITSU GENERAL AMERICA INC"]
ModelAOUH18KWAS2-FUJ
Compressor DesignTwin BLDC Rotary Inverter
RefrigerantR32
Efficiency EER213.2
Efficiency SEER222
Manufacturer NumberAOUH18KWAS2
Nominal Capacity (Tons)1.5
Wattage49
ZoningMulti-Zone
Compatible Indoor Units (Wall Mount)ASUH07KPAS, ASUH09KPAS, ASUH12KPAS, ASUH15KPAS
Compressor TypeTwin BLDC Rotary Inverter
Cooling Airflow (H/M/L/SL)1,336
Depth (in)12.38 (12-3/8)
Drain Connection (in)0.5 (1/2)
Factory Charge (lbs)3.06
Heating Capacity (BTU/Hr)22,000
Height (in)28.19 (28-3/16)
HSPF2 Rating10.5
Max Fuse Size / Fusible Max15
Maximum Line Set Length (ft)164
Minimum Circuit Ampacity14.9
Minimum Outdoor Cooling Temperature14 F (-10 C)
Minimum Outdoor Heating Temperature5 F (-15 C)
Outdoor Heating Temperature Range5 to 75 F (-15 to 24 C)
Shipping Weight (lbs)119
Sound Pressure Level (dBA)48
Suction Line Size (in)0.38 (3/8) x 2
Weight (lbs)99
Width (in)32.31 (32-5/16)
Fan TypePropeller
Heat/Cool FunctionHeating and Cooling
Rated Cooling Capacity (BTU/Hr)18000
Standard Outdoor Cooling Temperature Range14 to 122 F (-10 to 50 C)
CoiltypeFin & Tube
CompatibleindoorunitsairhandlerAMUH12KUAS
CompatibleindoorunitscassetteACUH07KUAS, ACUH09KUAS, ACUH12KUAS
CompatibleindoorunitsslimductADUH07KUAS, ADUH09KUAS, ADUH12KUAS
Coolingtemperaturerangef14F - 115F
Dimensions28-3/16 x 32-5/16 x 12-3/8
Maximumheatingairflowcfm1,271
Numberofindoorunitsconnectionratio2
Voltagev208-230
