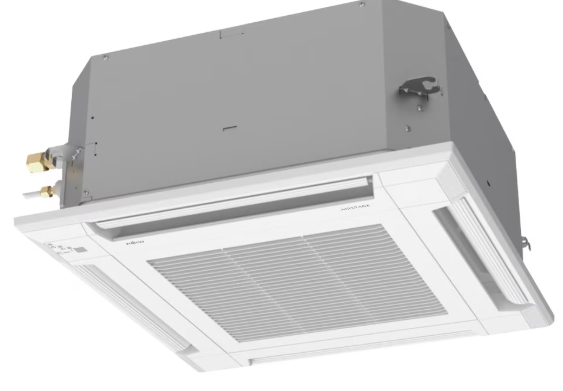

Fujitsu 18,000 Compact Cassette Indoor Unit
Description
Read more
Specification
BrandFujitsu
Manufacturer["FUJITSU GENERAL AMERICA INC"]
ModelACUH18KUAS-FUJ
Compressor DesignTwin BLDC Rotary Inverter
RefrigerantR32
Capacity (BTU/Hr)18000
Efficiency EER212.6
Efficiency SEER221.9
Manufacturer NumberACUH18KUAS
Nominal Capacity (Tons)1.5
ZoningMulti-Zone
Compressor TypeTwin BLDC Rotary Inverter
Cooling Airflow (H/M/L/SL)HIGH 441, MED 341, LOW 288, QUIET 241
Cooling Capacity (BTU/Hr)18000
Depth (in)22.44 (22-7/16)
Drain Connection (in)1.00 (1)
Enhanced Low Ambient Outdoor Cooling Temperature Range-5 to 122 F (-21 to 50 C)
Heating Airflow (H/M/L/SL, CFM)HIGH 471, MED 400, LOW 341, QUIET 265
Height (in)9.63 (9-5/8)
HSPF2 Rating11.3
Max Fuse Size / Fusible Max20
Minimum Circuit Ampacity14.8
Minimum Outdoor Cooling Temperature-5 F (-21 C)
Outdoor Heating Temperature Range-5 to 75 F (-21 to 24 C)
Sound Pressure Level (dBA)42
Suction Line Size (in)0.50 (1/2)
Weight (lbs)35
Width (in)22.44 (22-7/16)
Fan TypeTurbo Fan
Heat/Cool FunctionHeating and Cooling
Indoor Unit StyleCeiling Cassette
Standard Outdoor Cooling Temperature Range-5 to 122 F (-21 to 50 C)
CompatibleoutdoorunitsmultizoneAOUH24KWAS3, AOUH36KWAS4, AOUH45KWAS5
CompatibleoutdoorunitssinglezoneAOUH18KUAS1
ControltypeHand Held Remote
EvaporatorfantypeBLDC Motor With Cross-Flow Fan
Fanmotoroutput54
FanspeedsHIGH 471, MED 400, LOW 341, QUIET 265
Maximumcoolingairflowcfm441
Maximumheatingairflowcfm471
Minindoornoiseleveldba29
TemperaturecontrolRemote controller
Voltagev208-230
Documentation
Manuals
ACUH18KUAS-FUJinstall.pdfData Sheets
ACUH18KUAS-FUJsubmittal.pdfTechnical & Engineering Tools
ACUH18KUAS-FUJdesandtech.pdfDisclaimer
