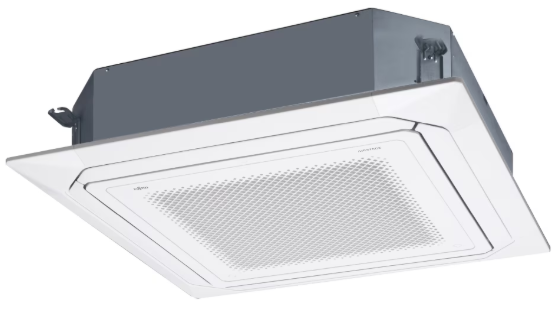

Fujitsu 24,000 Large-Cassette Indoor Unit
Specification
BrandFujitsu
Manufacturer["FUJITSU GENERAL AMERICA INC"]
ModelAUUH24KUAS-FUJ
Compressor DesignTwin BLDC Rotary Inverter
RefrigerantR32
Efficiency EER213.1
Efficiency SEER223.2
Manufacturer NumberAUUH24KUAS
Nominal Capacity (Tons)2
ZoningSingle-Zone
Compressor TypeTwin BLDC Rotary Inverter
Cooling Airflow (H/M/L/SL)H: 677, M: 618, L: 577, Quiet: 512
Cooling Capacity (BTU/Hr)24000
Depth (in)33.06 (33-1/16)
Drain Connection (in)0.81 (13/16) (I.D.), 1.06 (1-1/16) (O.D.)
Heating Airflow (H/M/L/SL, CFM)H: 677, M: 618, L: 577, Quiet: 512
Height (in)9.69 (9-11/16)
HSPF2 Rating11
Max Fuse Size / Fusible Max20
Minimum Circuit Ampacity15.9
Outdoor Heating Temperature Range-5 to 75 F (-21 to 24 C)
Sound Pressure Level (dBA)36
Suction Line Size (in)0.50 (1/2)
Weight (lbs)53
Width (in)33.06 (33-1/16)
Fan TypePropeller Fan
Heat/Cool FunctionHeating and Cooling
Indoor Unit StyleCeiling Cassette
Standard Outdoor Cooling Temperature Range-5 to 122 F (-21 to 50 C)
Frequency (Hz)60
CompatibleoutdoorunitssinglezoneAOUH24KUAS1
Fanmotoroutput81
FanspeedsAuto, High, Med, Low, Quiet
Heatingoperatingtemperature-5 to 75 F (-21 to 24 C)
Heatingtemperaturerangef60 to 86 F (16 to 30 C)
Maximumcoolingairflowcfm677
Maximumheatingairflowcfm677
Minindoornoiseleveldba30
Voltagev208-230
Documentation
Manuals
AUUH24KUAS-FUJinstall.pdfDisclaimer
