Manufacturer["FUJITSU GENERAL AMERICA INC"]

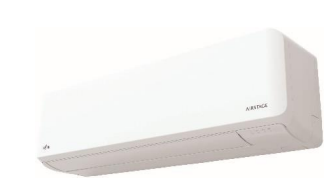

ModelASUH18KPAS-FUJ
Compressor DesignInverter Driven
RefrigerantR32
Capacity (BTU/Hr)18000 (Cooling) / 18000 (Heating)
Efficiency EER212.5
Efficiency SEER222
Manufacturer NumberASUH18KPAS
Nominal Capacity (Tons)1.5
ZoningSingle-Zone
Airflow (CFM)536
ColourWhite
Compressor TypeInverter Driven
Cooling Airflow (H/M/L/SL)536 / 483 / 377 / 259
Cooling Capacity (BTU/Hr)18000
Depth (in)9.43 (9-7/16)
Drain Connection (in)17/32
Heating Airflow (H/M/L/SL, CFM)506 / 430 / 347 / 277
Height (in)11
HSPF2 Rating10.5
Max Fuse Size / Fusible Max15
Minimum Circuit Ampacity11.9 A
Minimum Outdoor Cooling Temperature14°F (-10°C)
Outdoor Heating Temperature Range5 to 75°F (-15 to 24°C)
Sound Pressure Level (dBA)26-44 (Cooling) / 28-43 (Heating)
Suction Line Size (in)1/2
Weight (lbs)28 (12.5 kg)
Width (in)38.56 (38-9/16)
Fan TypeCross Flow Fan
Heat/Cool FunctionHeating and Cooling
Indoor Unit StyleWall Mount
Standard Outdoor Cooling Temperature Range14 to 122°F (-10 to 50°C)
Frequency (Hz)60
AirdirectioncontrolYes
CompatibleoutdoorunitssinglezoneAOUH18KPAS1
ControltypeHand Held Remote
EnclosurecolourWhite
EvaporatorfantypeBLDC Motor With Cross-Flow Fan
Fanmotoroutput59
Fanspeeds7 (Auto, High, Med-High, Med, Med-Low, Low, Quiet)
Heatingtemperaturerangef5 to 75°F (-15 to 24°C)
Maximumcoolingairflowcfm536
Maximumheatingairflowcfm506
Minindoornoiseleveldba26
Powerfrequency60
TemperaturecontrolYes
Voltagev208-230
