Manufacturer["FUJITSU GENERAL AMERICA INC"]
ModelASUH36KPAS-FUJ
Compressor DesignInverter Driven
RefrigerantR32
Capacity (BTU/Hr)33000 (Cooling) / 34000 (Heating)
Efficiency EER29.75
Efficiency SEER221
Manufacturer NumberASUH36KPAS
Nominal Capacity (Tons)2.75
ZoningSingle-Zone
Airflow (CFM)806
ColourWhite
Compressor TypeInverter Driven
Cooling Airflow (H/M/L/SL)806 / 653 / 518 / 418
Cooling Capacity (BTU/Hr)33000
Depth (in)11
Drain Connection (in)17/32
Heating Airflow (H/M/L/SL, CFM)742 / 612 / 483 / 418
Height (in)13.37 (13-3/8)
HSPF2 Rating10
Max Fuse Size / Fusible Max30
Minimum Circuit Ampacity18.4 A
Minimum Outdoor Cooling Temperature14°F (-10°C)
Outdoor Heating Temperature Range5 to 75°F (-15 to 24°C)
Sound Pressure Level (dBA)32-51 (Cooling) / 32-48 (Heating)
Suction Line Size (in)5/8
Weight (lbs)36 (16.5 kg)
Width (in)45.25 (45-1/4)
Fan TypeCross Flow Fan
Heat/Cool FunctionHeating and Cooling

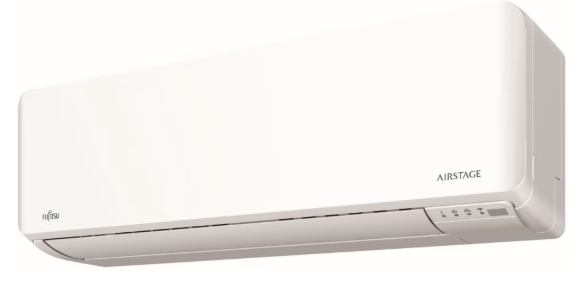

Indoor Unit StyleWall Mount
Standard Outdoor Cooling Temperature Range14 to 122°F (-10 to 50°C)
Frequency (Hz)60
AirdirectioncontrolYes
CompatibleoutdoorunitssinglezoneAOUH36KPAS1
ControltypeHand Held Remote
EnclosurecolourWhite
EvaporatorfantypeBLDC Motor With Cross-Flow Fan
Fanmotoroutput78
Fanspeeds7 (Auto, High, Med-High, Med, Med-Low, Low, Quiet)
Heatingtemperaturerangef5 to 75°F (-15 to 24°C)
Maximumcoolingairflowcfm806
Maximumheatingairflowcfm742
Minindoornoiseleveldba32
Powerfrequency60
TemperaturecontrolYes
Voltagev208-230
