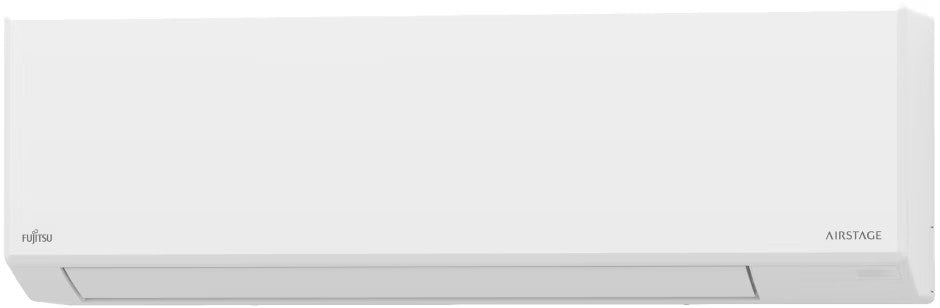

Fujitsu R32 Altair 300 9,000 BTU/Hr 115v Wall Mount Heat Pump IDU
Specification
BrandFujitsu
Manufacturer["FUJITSU GENERAL AMERICA INC"]
ModelASLH09KNAS-FUJ
Compressor DesignInverter Driven
Voltage (V)115
RefrigerantR32
Capacity (BTU/Hr)9000
Efficiency EER210.55
Efficiency SEER217
Manufacturer NumberASLH09KNAS
Nominal Capacity (Tons)0.75
ZoningSingle-Zone
Cooling Airflow (H/M/L/SL)365, 288, 212, 141
Cooling Capacity (BTU/Hr)9000
Depth (in)8.5625
Heating Airflow (H/M/L/SL, CFM)365, 300, 241, 153
Height (in)9.8125 (9-13/16)
Max Fuse Size / Fusible Max20
Minimum Circuit Ampacity18.3
Minimum Outdoor Cooling Temperature50 F (10 C)
Outdoor Heating Temperature Range5 to 75 F (-15 to 24 C)
Suction Line Size (in)0.375
Weight (lbs)15
Width (in)30.3125
Fan TypeCross Flow Fan
Heat/Cool FunctionHeating and Cooling
Indoor Unit StyleWall Mount
Standard Outdoor Cooling Temperature Range50 to 126 F (10 to 52 C)
Frequency (Hz)60
CompatibleoutdoorunitssinglezoneAOLH09KNAS1
Fanmotoroutput27
FanspeedsFour
Heatingoperatingtemperature5 to 75 F (-15 to 24 C)
Maximumcoolingairflowcfm365
Maximumheatingairflowcfm365
Minindoornoiseleveldba20
Powerfrequency60
Documentation
Manuals
Operational-manual-ASLH09KNAS-FUJ-67921483.pdf Installation-manual-ASLH09KNAS-FUJ-642bf078.pdfData Sheets
Submittal-ASLH09KNAS-FUJ-f4b39b1e.pdfParts & Components
Parts-list-ASLH09KNAS-FUJ-631dfe13.pdfDisclaimer
For professional use only. Refer to all information, warnings and instructions on Product and package labeling and accompanying documentation provided by the Product manufacturer. Product must be used in accordance with such labeling and documentation.
