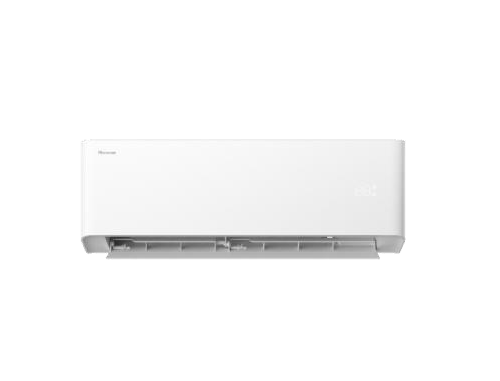

Manufacturer["Hisense HVAC"]
ModelAS-24U3RHB25E-HIS
Compressor DesignRotary
Voltage (V)208-230V
RefrigerantR32
Capacity (BTU/Hr)24000
Efficiency EER210.6
Efficiency SEER219.5
Manufacturer NumberAS-24U3RHB25E
Nominal Capacity (Tons)2
Airflow (CFM)706
ColourWhite
Compressor TypeRotary
Cooling Airflow (H/M/L/SL)706/647/500/441/412
Cooling Capacity (BTU/Hr)24000
Depth (in)9
Drain Connection (in)0.75
Height (in)12.7
HSPF2 Rating9
Max Fuse Size / Fusible Max25
Minimum Circuit Ampacity3
Minimum Outdoor Cooling Temperature5 F (-15 C)
Outdoor Heating Temperature Range-4 - 75 F (-20 - 24 C)
Sound Pressure Level (dBA)49/46/39/37/33
Weight (lbs)29
Width (in)42
Fan TypeCross Flow Fan
Heat/Cool FunctionHeating and Cooling
Indoor Unit StyleWall Mount
Motor TypeBLDC
Standard Outdoor Cooling Temperature Range5 - 118 F (-15 - 48 C)
Fan Motor TypeBLDC with Crossflow Fan
Frequency (Hz)60
AirfilterWashable
CompatibleoutdoorunitssinglezoneAO-24U3R26E2
ControltypeHand Held Remote
EnclosurecolourWhite
EvaporatorfantypeBLDC Motor With Cross-Flow Fan
Fanmotoroutput45
FanspeedsFour
Heatingoperatingtemperature-4 - 75 F (-20 - 24 C)
Heatingtemperaturerangef-79
Maximumcoolingairflowcfm706
Minindoornoiseleveldba33
Noiseleveldba33
Powerfrequency60
