Manufacturer["Hisense HVAC"]
ModelAS-36U3RHB25E-HIS
Compressor DesignRotary
Voltage (V)208-230V
RefrigerantR32
Capacity (BTU/Hr)36000
Efficiency EER29.45
Efficiency SEER220
Manufacturer NumberAS-36U3RHB25E
Nominal Capacity (Tons)3
Airflow (CFM)1059
ColourWhite
Compressor TypeRotary
Cooling Airflow (H/M/L/SL)1059/1018/882/712/647
Cooling Capacity (BTU/Hr)34600
Depth (in)10.71
Drain Connection (in)0.75
Height (in)14.1
HSPF2 Rating8.4
Max Fuse Size / Fusible Max30
Minimum Circuit Ampacity3
Minimum Outdoor Cooling Temperature5 F (-15 C)
Outdoor Heating Temperature Range-4 - 75 F (-20 - 24 C)
Refrigerant ControlElectronic Expansion Valve
Sound Pressure Level (dBA)50/48/43/39/36
Weight (lbs)40.8
Width (in)51.73
Fan TypeCross Flow Fan
Heat/Cool FunctionHeating and Cooling

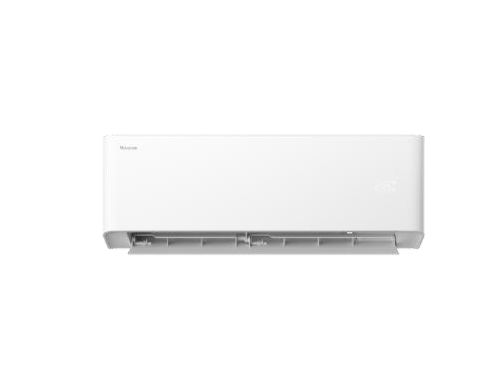

Indoor Unit StyleWall Mount
Motor TypeBLDC
Standard Outdoor Cooling Temperature Range5 - 118 F (-15 - 48 C)
Fan Motor TypeBLDC with Crossflow Fan
Frequency (Hz)60
AirfilterWashable
CompatibleoutdoorunitssinglezoneAO-36U3R26E2
ControltypeHand Held Remote
EnclosurecolourWhite
EvaporatorfantypeBLDC Motor With Cross-Flow Fan
Fanmotoroutput70
FanspeedsFour
Heatingoperatingtemperature-4 - 75 F (-20 - 24 C)
Heatingtemperaturerangef-79
Maximumcoolingairflowcfm1059
Minindoornoiseleveldba36
Powerfrequency60
