Discontinued Model

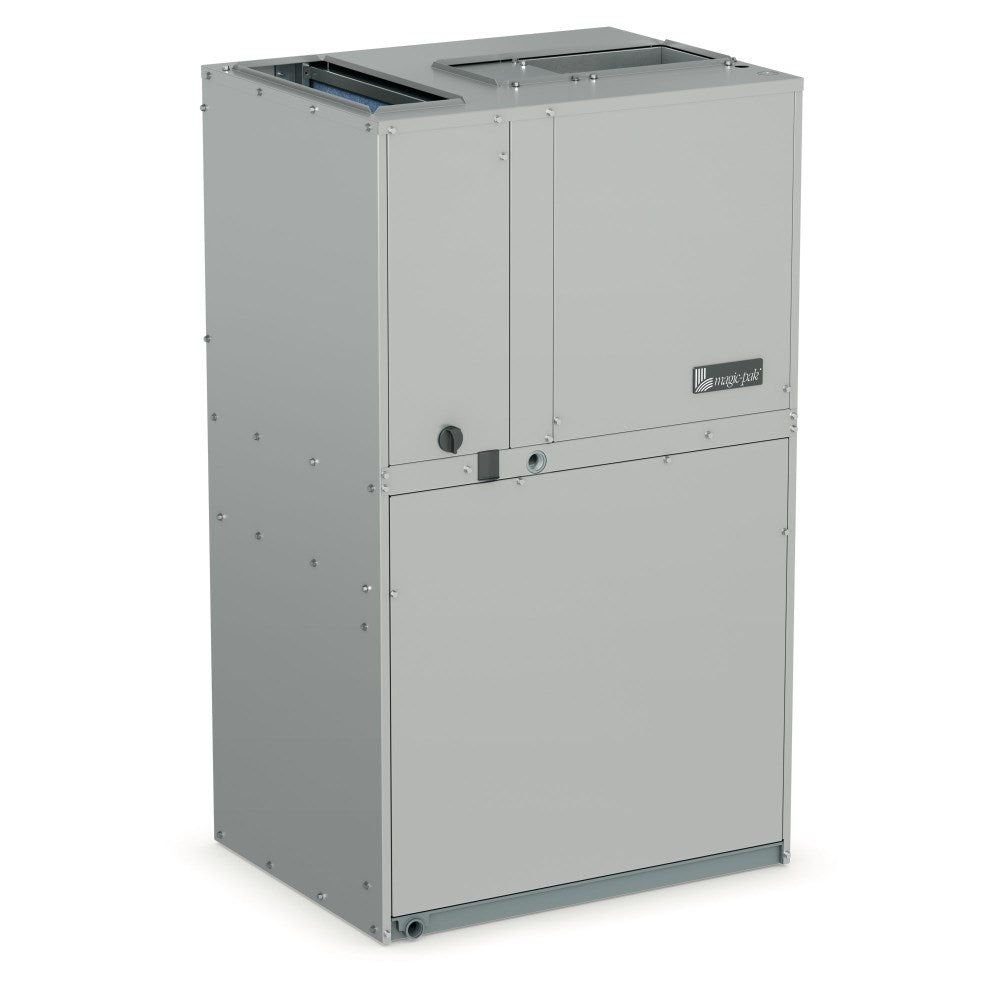

Magic Pak 1.5 Ton 11 EER 10 kW Packaged Heat Pump Unit | 208-230/1
Description
Read more
Specification
BrandMagicPak
Manufacturer["Allied Air Enterprises"]
Model10MHP4-11-181CP-ALD
Voltage (V)208-230/1
RefrigerantR410A
Manufacturer Number1.513024
Compressor Rated Load Amps (208/230V)6.70A
Cooling Capacity (BTU/Hr)18000
Depth (in)21.5
Drain Connection (in)0.75 NPT
Energy Efficiency Rating (EER)11
Height (in)47-7/8
Sound Pressure Level (dBA)73
Weight (lbs)219
Width (in)28
Blower Motor DesignConstant Torque ECM
Rated Cooling Capacity (BTU/Hr)17000
Frequency (Hz)60 Hz
Blowermotorratedloadampsat208230v1.00A
CabinetmaterialEmbossed Steel
CoiloptionsStandard
CompressorstagesSingle Stage
Compressorwarrantyperiod5 Years
Fanmotorratedloadamps208230v0.90
Fanmotorratedloadampsat208230v0.90
Fanmotorrpm1125
Heatingcapacitykw10
Maximumfuseampscircuit115.00A @ 208 V
Maximumfuseampscircuit250.00A @ 230 V
Minimumcircuitampacitycircuit110.30A @ 208 V
Minimumcircuitampacitycircuit243.30A @ 208 V
Motorhorsepower1/3
Netheatingcapacitybtuhrat17f9200
Netheatingcapacitybtuhrat47f16200
Nominalcoolingcapacitytons1.5
Nominalfiltersizein20 X 20 X 1
