Discontinued Model

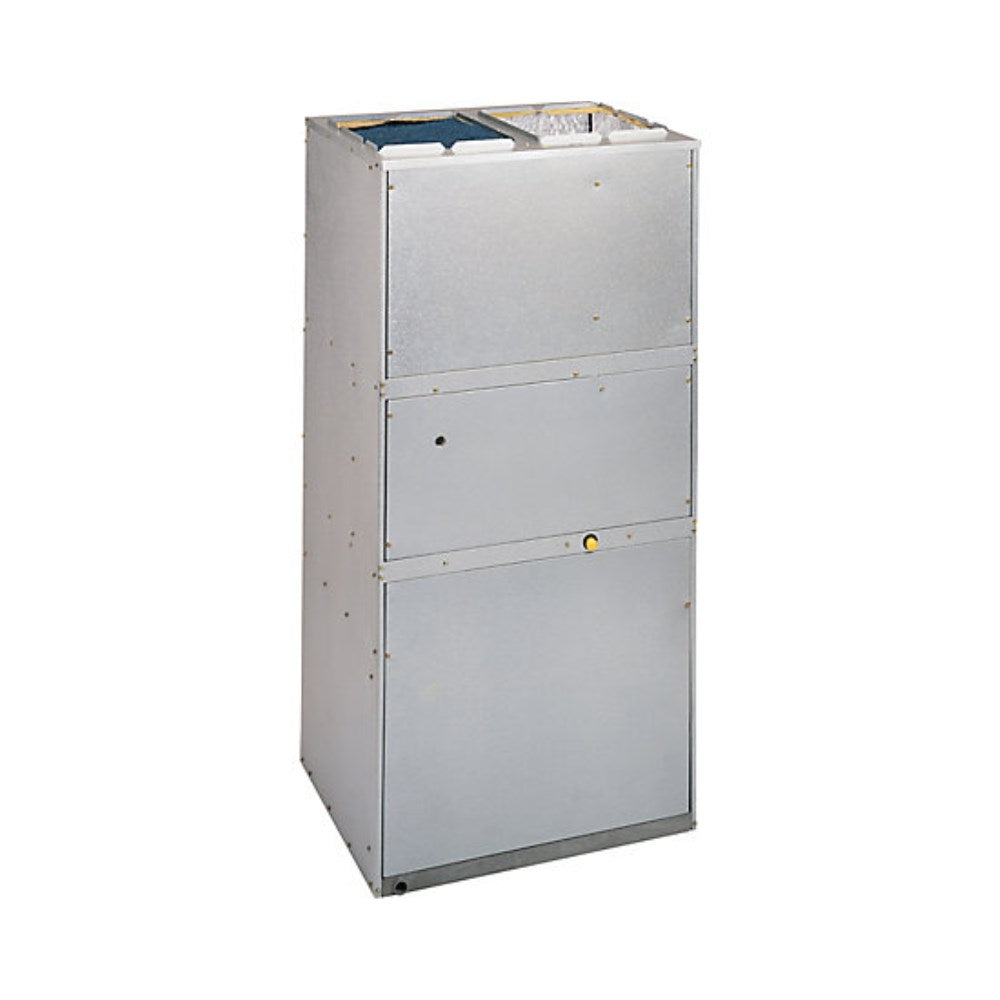

Magic Pak 1.5 Ton 11 EER Electric/Electric 7 kW Heat Packaged Unit with Coil Protection | 208-230/1
Description
Read more
Specification
BrandMagicPak
Manufacturer["Allied Air Enterprises"]
Model7MCE4-11-181CP-ALD
Voltage (V)208-230/1
RefrigerantR410A
Manufacturer Number1.523032
Cooling Capacity (BTU/Hr)18000
Depth (in)21.5
Drain Connection (in)0.75 NPT
Energy Efficiency Rating (EER)11
Height (in)43-7/8
Maximum Fuse (Amps)40.00A @ 230 V
Sound Pressure Level (dBA)73
Weight (lbs)207
Width (in)28
Blower Motor DesignConstant Torque ECM
Frequency (Hz)60 Hz
Blowermotorratedloadampsat208230v1.40A
CabinetmaterialEmbossed Steel
CoiloptionsCoil Corrosion Protection
Compressorratedloadampsat208230v6.70A
CompressorstagesSingle Stage
Compressorwarrantyperiod5 Years
Fanmotorhorsepowerrating1/8
Fanmotorratedloadamps208230v0.90
Fanmotorratedloadampsat208230v0.90
Fanmotorrpm1125
Heatingcapacitykw7
Motorhorsepower1/3
Nominalcoolingcapacitytons1.5
Nominalfiltersizein18 X 20 X 1
