Discontinued Model

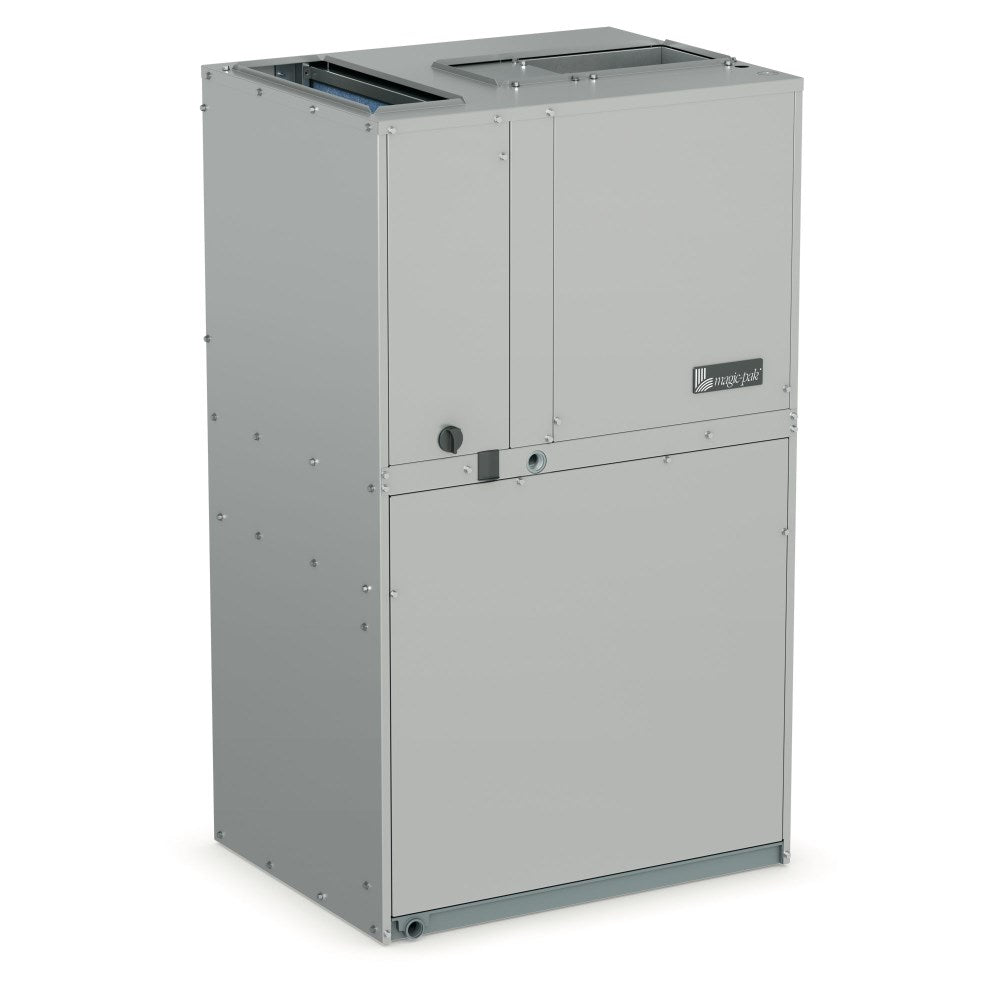

Magic Pak 1 Ton 11 EER 3 kW Packaged Heat Pump Unit | 208-230/1
Description
Read more
Specification
BrandMagicPak
Manufacturer["Allied Air Enterprises"]
Model3MHP4-11-121FP-ALD
Voltage (V)208-230/1
RefrigerantR410A
Manufacturer Number1.513002
Compressor Rated Load Amps (208/230V)5.10A
Cooling Capacity (BTU/Hr)12000
Depth (in)21.5
Drain Connection (in)0.75 NPT
Energy Efficiency Rating (EER)11
Height (in)43-7/8
Maximum Fuse (Amps)30.00A @ 230 V
Sound Pressure Level (dBA)73
Weight (lbs)202
Width (in)28
Blower Motor DesignConstant Torque ECM
Rated Cooling Capacity (BTU/Hr)12000
Frequency (Hz)60 Hz
Blowermotorratedloadampsat208230v0.60A
CabinetmaterialEmbossed Steel
CoiloptionsStandard
CompressorstagesSingle Stage
Compressorwarrantyperiod5 Years
Fanmotorratedloadamps208230v0.90
Fanmotorratedloadampsat208230v0.90
Fanmotorrpm1125
Heatingcapacitykw3
Motorhorsepower1/3
Netheatingcapacitybtuhrat17f6800
Netheatingcapacitybtuhrat47f11400
Nominalcoolingcapacitytons1
Nominalfiltersizein18 X 20 X 1
