Discontinued Model

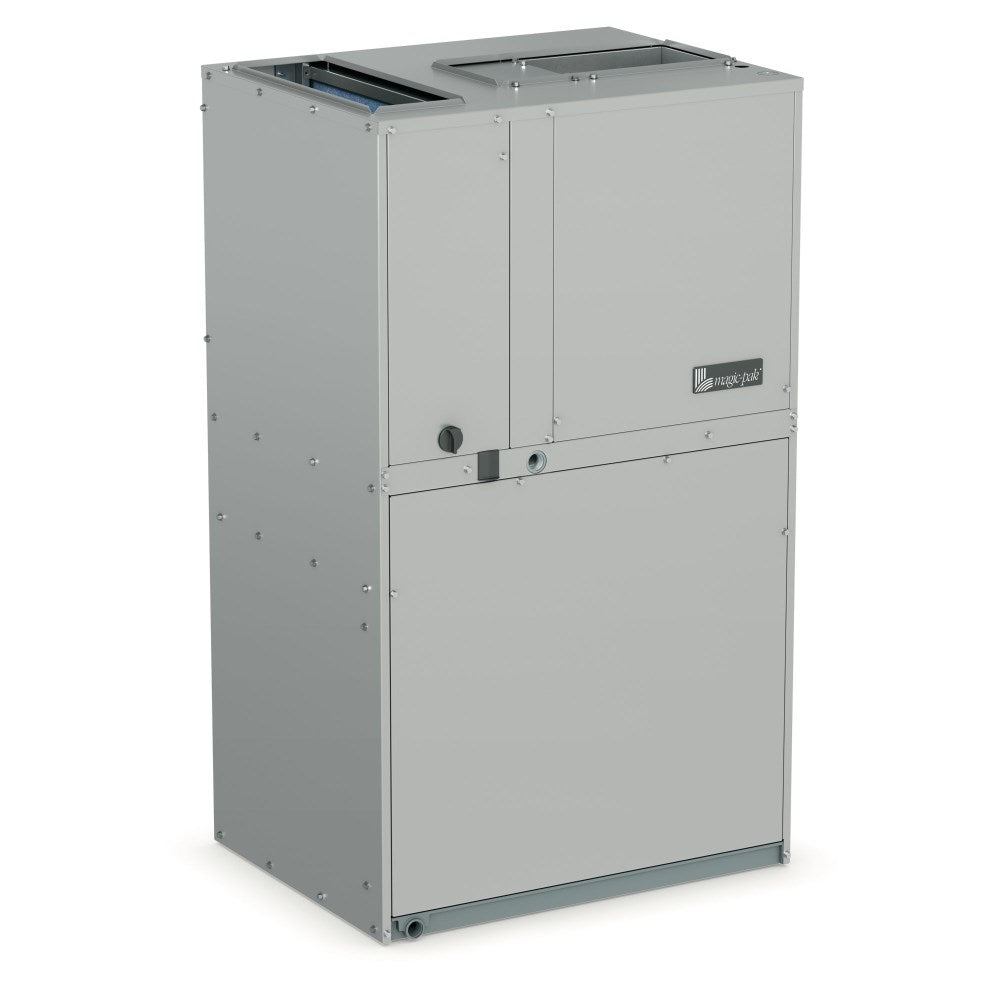

Magic Pak 1 Ton 11 EER 3 kW Packaged Heat Pump Unit with Coil Protection | 208-230/1
Description
Read more
Specification
BrandMagicPak
Manufacturer["Allied Air Enterprises"]
Model3MHP4-11-121CP-ALD
Voltage (V)208-230/1
RefrigerantR410A
Manufacturer Number1.513019
Compressor Rated Load Amps (208/230V)5.10A
Cooling Capacity (BTU/Hr)12000
Depth (in)21.5
Drain Connection (in)0.75 NPT
Energy Efficiency Rating (EER)11
Height (in)43-7/8
Maximum Fuse (Amps)30.00A @ 230 V
Sound Pressure Level (dBA)73
Weight (lbs)202
Width (in)28
Blower Motor DesignConstant Torque ECM
Rated Cooling Capacity (BTU/Hr)12000
Frequency (Hz)60 Hz
Blowermotorratedloadampsat208230v0.60A
CabinetmaterialEmbossed Steel
CoiloptionsCoil Corrosion Protection
CompressorstagesSingle Stage
Compressorwarrantyperiod5 Years
Fanmotorratedloadamps208230v0.90
Fanmotorratedloadampsat208230v0.90
Fanmotorrpm1125
Heatingcapacitykw3
Motorhorsepower1/3
Netheatingcapacitybtuhrat17f6800
Netheatingcapacitybtuhrat47f11400
Nominalcoolingcapacitytons1
Nominalfiltersizein18 X 20 X 1
Documentation
Disclaimer
For professional use only. Refer to all information, warnings and instructions on Product and package labeling and accompanying documentation provided by the Product manufacturer. Product must be used in accordance with such labeling and documentation.
