Discontinued Model

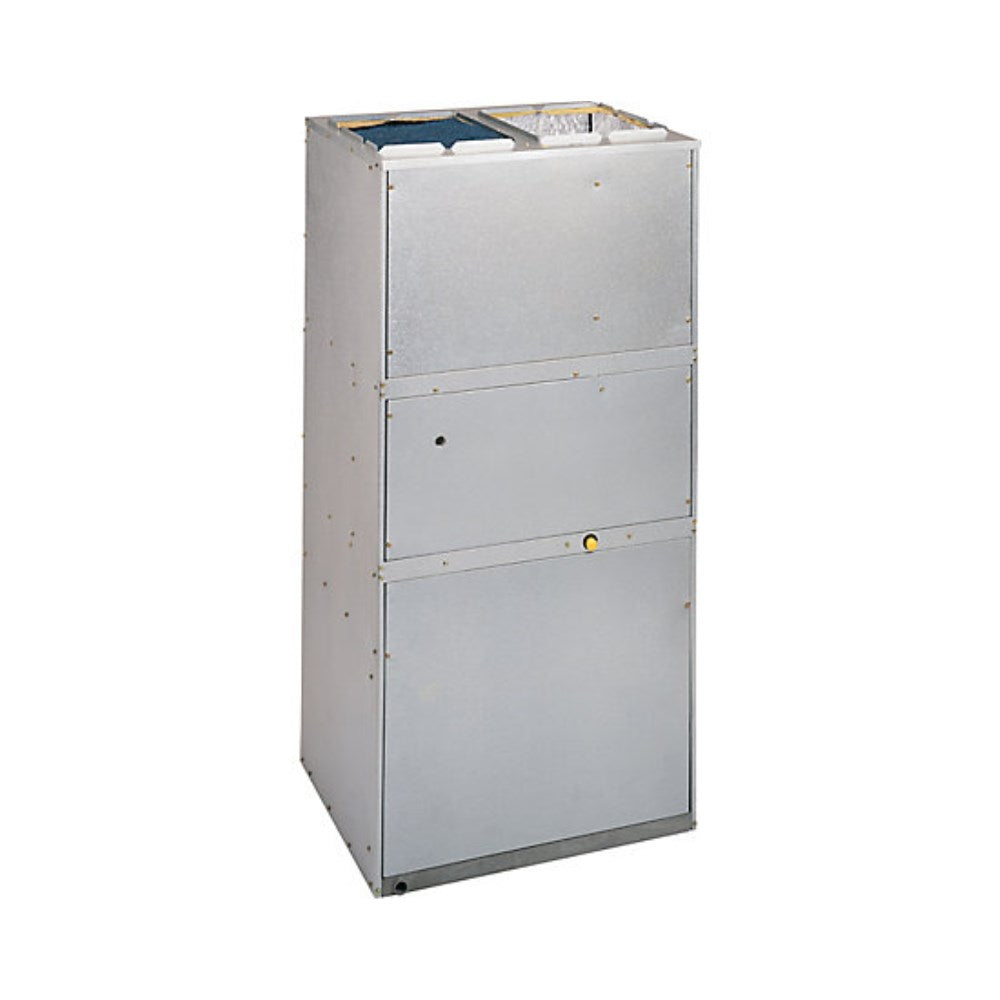

Magic Pak 2 Ton 11 EER Electric/Electric 7 kW Heat Packaged Unit | 208-230/1
Description
Read more
Specification
BrandMagicPak
Manufacturer["Allied Air Enterprises"]
Model7MCE4-11-241FP-ALD
Voltage (V)208-230/1
RefrigerantR410A
Manufacturer Number1.523013
Cooling Capacity (BTU/Hr)24000
Depth (in)24.375
Drain Connection (in)0.75 NPT
Energy Efficiency Rating (EER)11
Height (in)47-7/8
Maximum Fuse (Amps)40.00A @ 230 V
Sound Pressure Level (dBA)75
Weight (lbs)230
Width (in)28
Blower Motor DesignConstant Torque ECM
Frequency (Hz)60 Hz
Blowermotorratedloadampsat208230v1.80A
CabinetmaterialEmbossed Steel
CoiloptionsStandard
Compressorratedloadampsat208230v8.70A
CompressorstagesSingle Stage
Compressorwarrantyperiod5 Years
Fanmotorhorsepowerrating1/8
Fanmotorratedloadamps208230v0.90
Fanmotorratedloadampsat208230v0.90
Fanmotorrpm1050
Heatingcapacitykw7
Motorhorsepower1/3
Nominalcoolingcapacitytons2
Nominalfiltersizein20 X 22 X 1
