Discontinued Model

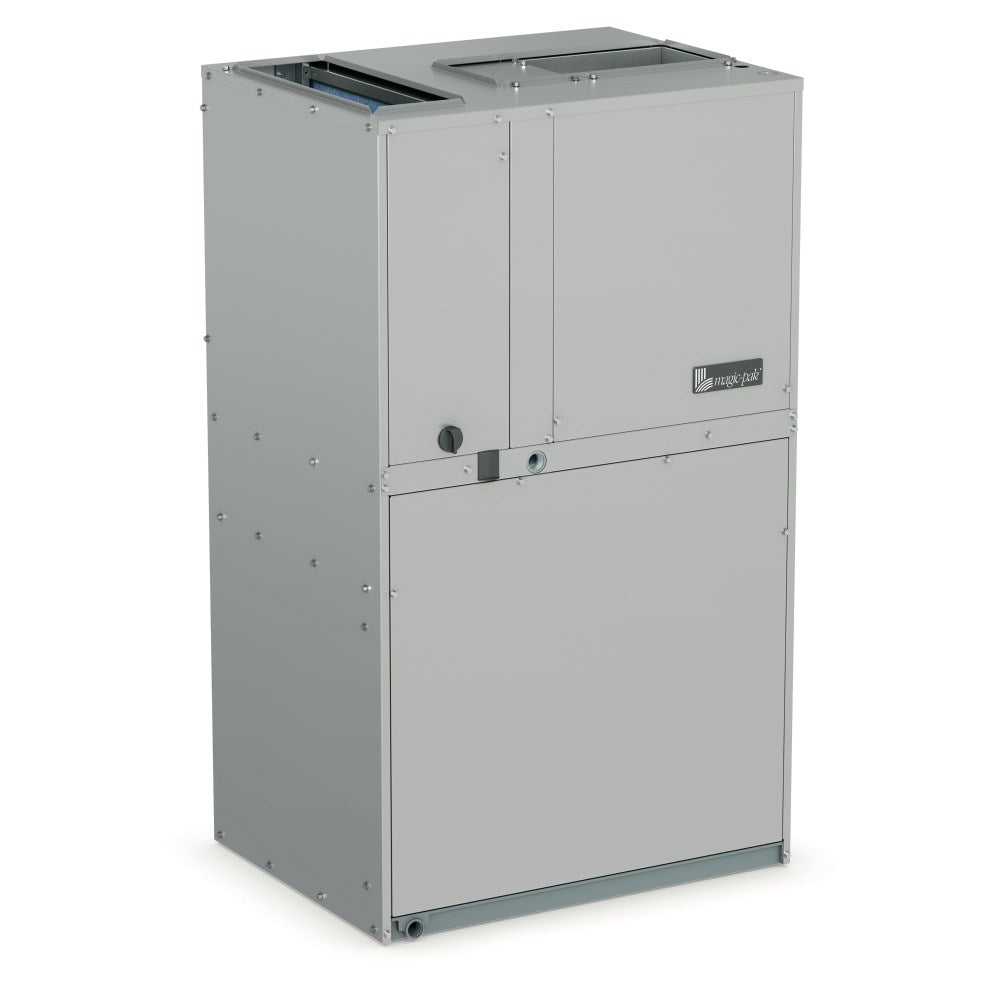

Magic Pak 3 Ton 11 EER 10 kW Packaged Heat Pump Unit | 208-230/1
Description
Read more
Specification
BrandMagicPak
Manufacturer["Allied Air Enterprises"]
Model10MHP4-11-361CP-ALD
Voltage (V)208-230/1
RefrigerantR410A
Manufacturer Number1.513033
Compressor Rated Load Amps (208/230V)14.70A
Cooling Capacity (BTU/Hr)36000
Depth (in)24.375
Drain Connection (in)0.75 NPT
Energy Efficiency Rating (EER)11
Height (in)67-7/8
Sound Pressure Level (dBA)79
Weight (lbs)298
Width (in)28
Blower Motor DesignConstant Torque ECM
Rated Cooling Capacity (BTU/Hr)34600
Frequency (Hz)60 Hz
Blowermotorratedloadampsat208230v2.80A
CabinetmaterialEmbossed Steel
CoiloptionsStandard
CompressorstagesSingle Stage
Compressorwarrantyperiod5 Years
Fanmotorratedloadamps208230v1.60
Fanmotorratedloadampsat208230v1.60
Fanmotorrpm1100
Heatingcapacitykw10
Maximumfuseampscircuit135.00A @ 208 V
Maximumfuseampscircuit250.00A @ 230 V
Minimumcircuitampacitycircuit122.70A @ 208 V
Minimumcircuitampacitycircuit243.30A @ 208 V
Motorhorsepower1/2
Netheatingcapacitybtuhrat17f20400
Netheatingcapacitybtuhrat47f32400
Nominalcoolingcapacitytons3
Nominalfiltersizein28 X 22 X 1
Documentation
Manuals
magicpak_mseries_mhp4-11eer_installationinstructions_5fedaf08-2f6c-40d1-a1ea-10d79ce0b392.pdfData Sheets
magicpak_mseries_mhp4-11eer_specsheet.pdfDisclaimer
For professional use only. Refer to all information, warnings and instructions on Product and package labeling and accompanying documentation provided by the Product manufacturer. Product must be used in accordance with such labeling and documentation.
