Discontinued Model

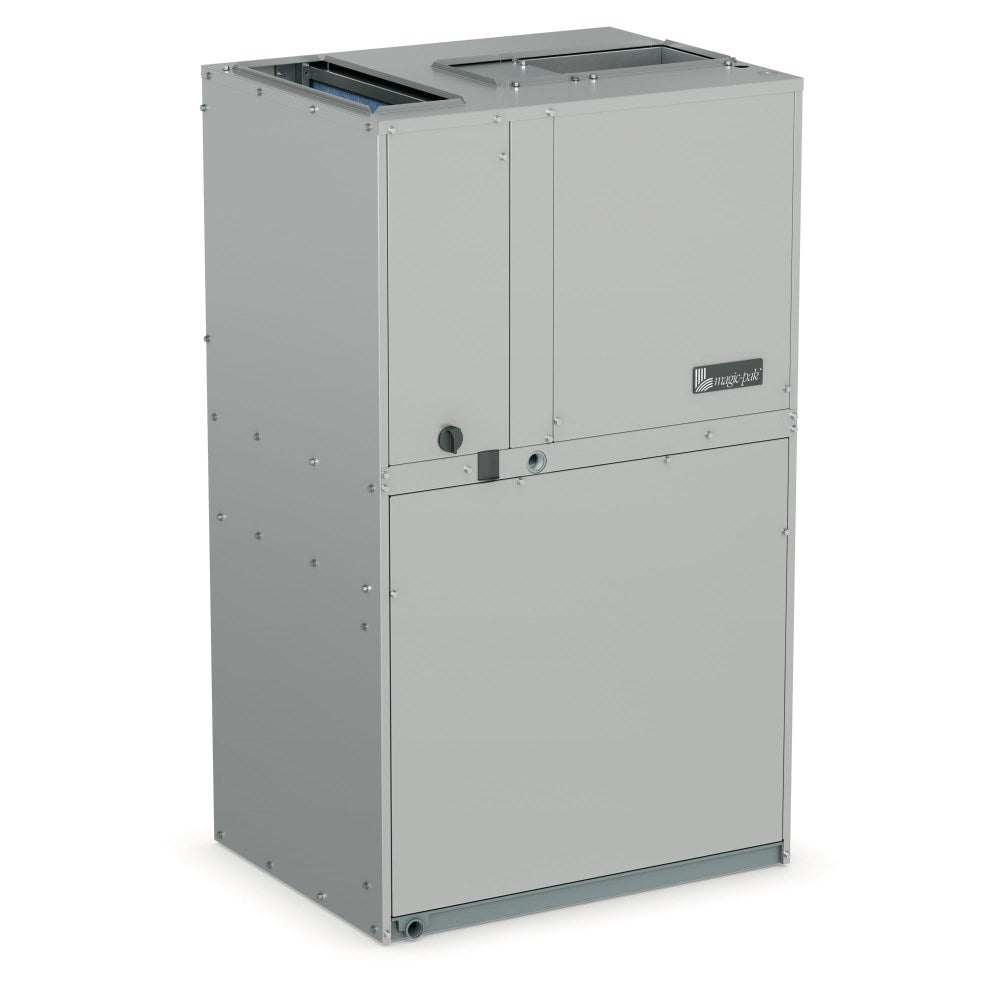

Magic Pak 3 Ton 11 EER 7 kW Packaged Heat Pump Unit with Coil Protection | 208-230/1
Description
Read more
Specification
BrandMagicPak
Manufacturer["Allied Air Enterprises"]
Model7MHP4-11-361CP-ALD
Voltage (V)208-230/1
RefrigerantR410A
Manufacturer Number1.513032
Compressor Rated Load Amps (208/230V)14.70A
Cooling Capacity (BTU/Hr)36000
Depth (in)24.375
Drain Connection (in)0.75 NPT
Energy Efficiency Rating (EER)11
Height (in)67-7/8
Sound Pressure Level (dBA)79
Weight (lbs)298
Width (in)28
Blower Motor DesignConstant Torque ECM
Rated Cooling Capacity (BTU/Hr)34600
Frequency (Hz)60 Hz
Blowermotorratedloadampsat208230v2.80A
CabinetmaterialEmbossed Steel
CoiloptionsCoil Corrosion Protection
CompressorstagesSingle Stage
Compressorwarrantyperiod5 Years
Fanmotorratedloadamps208230v1.60
Fanmotorratedloadampsat208230v1.60
Fanmotorrpm1100
Heatingcapacitykw7
Maximumfuseampscircuit135.00A @ 230 V
Maximumfuseampscircuit240.00A @ 230 V
Minimumcircuitampacitycircuit122.70A @ 230 V
Minimumcircuitampacitycircuit232.50A @ 208 V
Motorhorsepower1/2
Netheatingcapacitybtuhrat17f20400
Netheatingcapacitybtuhrat47f32400
Nominalcoolingcapacitytons3
Nominalfiltersizein28 X 22 X 1
