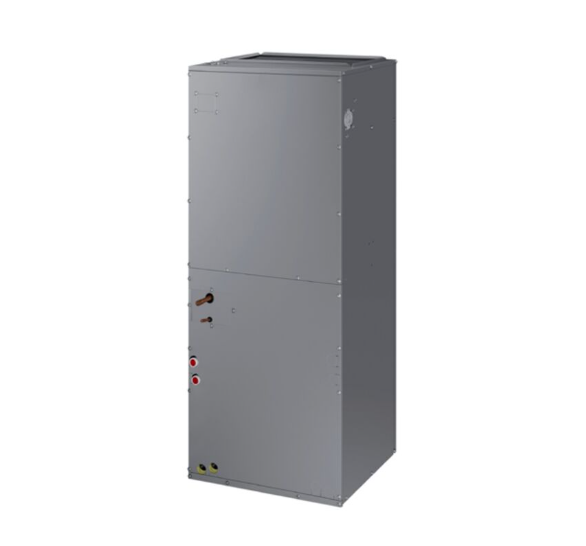

Multi-Position Air Handler, Single Zone, Heat Pump, Split System (Premium)
Description
Read more
Specification
BrandSamsung
Manufacturer["Samsung HVAC"]
ModelAC018DNZDCG/AA-SAM
Compressor DesignInverter Driven, Twin BLDC Rotary
Voltage (V)208-230
RefrigerantR32
Capacity (BTU/Hr)18000
Efficiency EER212
Efficiency SEER218
Manufacturer NumberAC018DNZDCG/AA
ZoningSingle-Zone
Airflow (CFM)636
Compressor TypeInverter Driven, Twin BLDC Rotary
Cooling Airflow (H/M/L/SL)477 / 583 / 636
Cooling Capacity (BTU/Hr)18000
Depth (in)21
Drain Connection (in)0.75
Enhanced Low Ambient Outdoor Cooling Temperature Range-4 - 122 F (-20 - 50 C)
Heating Airflow (H/M/L/SL, CFM)477 / 583 / 636
Height (in)48
HSPF2 Rating8.5
Max Fuse Size / Fusible Max25
Minimum Circuit Ampacity22.7
Outdoor Heating Temperature Range-13 - 75 F (-25 - 24 C)
Refrigerant ControlElectronic Expansion Valve
Sound Pressure Level (dBA)34 / 37 / 40
Weight (lbs)125.7
Width (in)21
Fan TypeDouble-inlet, forward curve, centrifugal
Heat/Cool FunctionHeating and Cooling
Indoor Unit StyleAir Handler
Motor TypeECM
Standard Outdoor Cooling Temperature Range23 - 122 F (-5 - 50 C)
Fan Motor TypeECM Constant-Torque
Frequency (Hz)60
CompatibleoutdoorunitssinglezoneAC018DXSCCG/AA
EvaporatorfantypeDouble-Inlet, Forward Curve Centrifugal (with ECM Motor)
Fanmotoroutput410
FanspeedsThree
Heatingtemperaturerangef-88
Maximumcoolingairflowcfm636
Maximumheatingairflowcfm636
Minindoornoiseleveldba34
Powerfrequency60
TemperaturecontrolMicrocomputer Control
