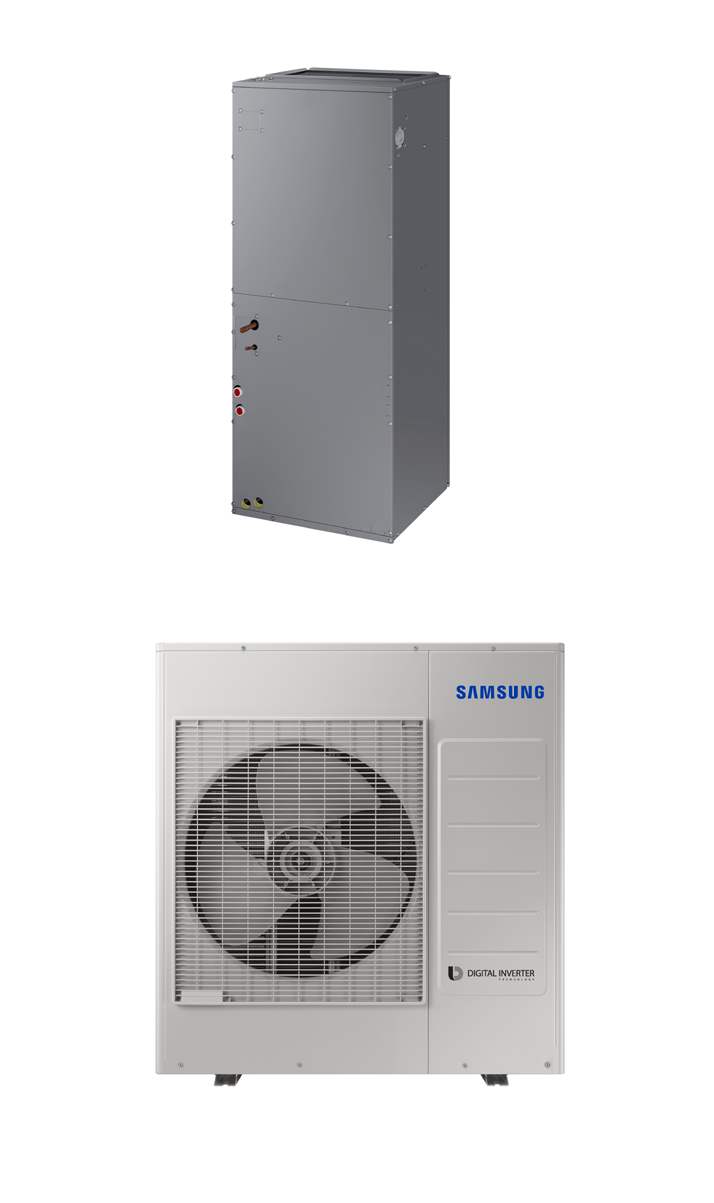

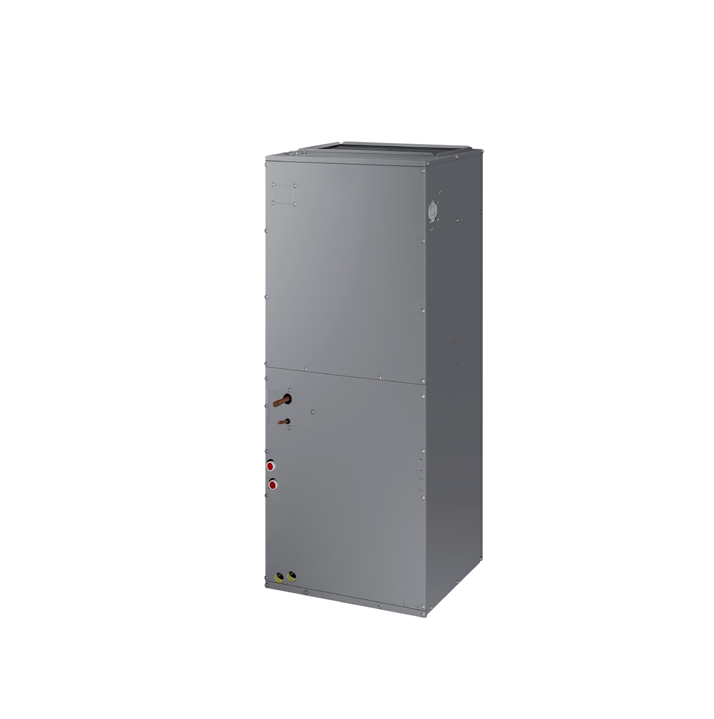

Multi-Position Air Handler, Single Zone, Heat Pump, Split System (Standard)
Description
Read more
Specification
BrandSamsung
Manufacturer["Samsung HVAC"]
ModelAC036DNZDCG/AA-SAM
Compressor DesignInverter Driven, Twin BLDC Rotary
Voltage (V)208-230
RefrigerantR32
Capacity (BTU/Hr)36000
Efficiency EER29.5
Efficiency SEER216
Manufacturer NumberAC036DNZDCG/AA
ZoningSingle-Zone
Airflow (CFM)1229
Compressor TypeInverter Driven, Twin BLDC Rotary
Cooling Airflow (H/M/L/SL)901 / 1,074 / 1,229
Cooling Capacity (BTU/Hr)36000
Depth (in)21
Drain Connection (in)0.75
Enhanced Low Ambient Outdoor Cooling Temperature Range0 - 122 F (-18 - 50 C)
Heating Airflow (H/M/L/SL, CFM)901 / 1,074 / 1,229
Height (in)48
HSPF2 Rating8.6
Max Fuse Size / Fusible Max30
Minimum Circuit Ampacity27.6
Outdoor Heating Temperature Range-4 - 75 F (-20 - 24 C)
Refrigerant ControlElectronic Expansion Valve
Sound Pressure Level (dBA)39 / 42 / 45
Weight (lbs)125.7
Width (in)21
Fan TypeDouble-inlet, forward curve, centrifugal
Heat/Cool FunctionHeating and Cooling
Indoor Unit StyleAir Handler
Motor TypeECM
Standard Outdoor Cooling Temperature Range23 - 122 F (-5 - 50 C)
Fan Motor TypeECM Constant-Torque
Frequency (Hz)60
CompatibleoutdoorunitssinglezoneAC036DXADCG/AA
EvaporatorfantypeDouble-Inlet, Forward Curve Centrifugal (with ECM Motor)
Fanmotoroutput410
FanspeedsThree
Heatingtemperaturerangef-79
Maximumcoolingairflowcfm1229
Maximumheatingairflowcfm1229
Minindoornoiseleveldba39
Powerfrequency60
TemperaturecontrolMicrocomputer Control
Documentation
Disclaimer
For professional use only. Refer to all information, warnings and instructions on Product and package labeling and accompanying documentation provided by the Product manufacturer. Product must be used in accordance with such labeling and documentation.
