Discontinued Model

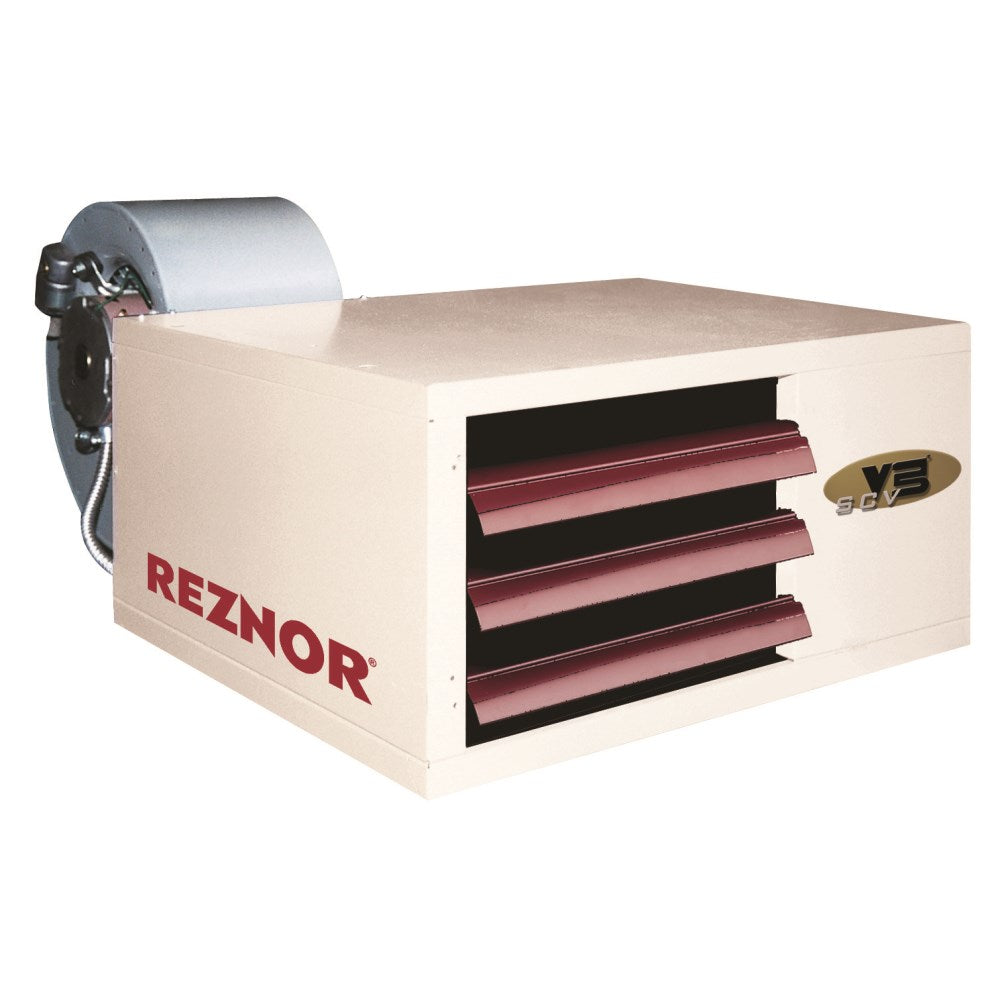

Reznor Separated Combustion High Static Unit Heater | 200,000 BTU/Hr | 115/1
Description
Read more
Specification
BrandReznor
Manufacturer["Nortek Global HVAC"]
ModelUDBS-200-REZ
Voltage (V)115/1
Manufacturer NumberUDBS-200
Airflow CFM3416
Gas TypeNatural Gas
Cabinet Depth (in)42
Cabinet Width (in)20.125
ColourWhite
Depth (in)60.125
Suction Line Size (in)0.5
Weight (lbs)335
Gas Valve TypeSingle Stage
Heat Exchanger MaterialAluminized Steel
Frequency (Hz)60 Hz
Horsepower Rating1/2
Blowersizein12 X 12
CabinetfinishHigh Gloss
Cabinetlengthin38.125
Combustionairinletdiameterin6 Round
Controlamps24v1.00A
HeaterbodystyleHorizontal
Heatingcapacityinputbtuhr200000
Heatingcapacityoutputbtuhr166000
Maximumoutputvelocityfpm1334
Maximumovercurrentprotection25.00A
Minimumairflowcfm2049
Minimumdischargeairtemperaturerise45 F (7 C)
Minimumoutputvelocityfpm800
Powerconsumptionwattsat115v485
Thermalefficiency83
Documentation
Manuals
udap_udbp_udas_udbs_gasconversionkitinstructions_2dab6802-1b5a-4834-a1a5-2f0e813395a2.pdf udap_udbp_udas_udbs_installationmanual_e0918fd7-c92a-44d1-b997-768316614a18.pdfBrochures
unitheatercatalog_fd08e59e-6121-4dfc-8044-2e42275a6aa1.pdf udap_udbp_udas_udbs_ueas_unitheaterbrochure_d9269e86-4540-44fb-86a0-e40586386c88.pdfParts & Components
udap_udbp_udas_udbs_partslist_1b4943ea-4a03-443d-8ed4-d97c7955697d.pdfDisclaimer
For professional use only. Refer to all information, warnings and instructions on Product and package labeling and accompanying documentation provided by the Product manufacturer. Product must be used in accordance with such labeling and documentation.
