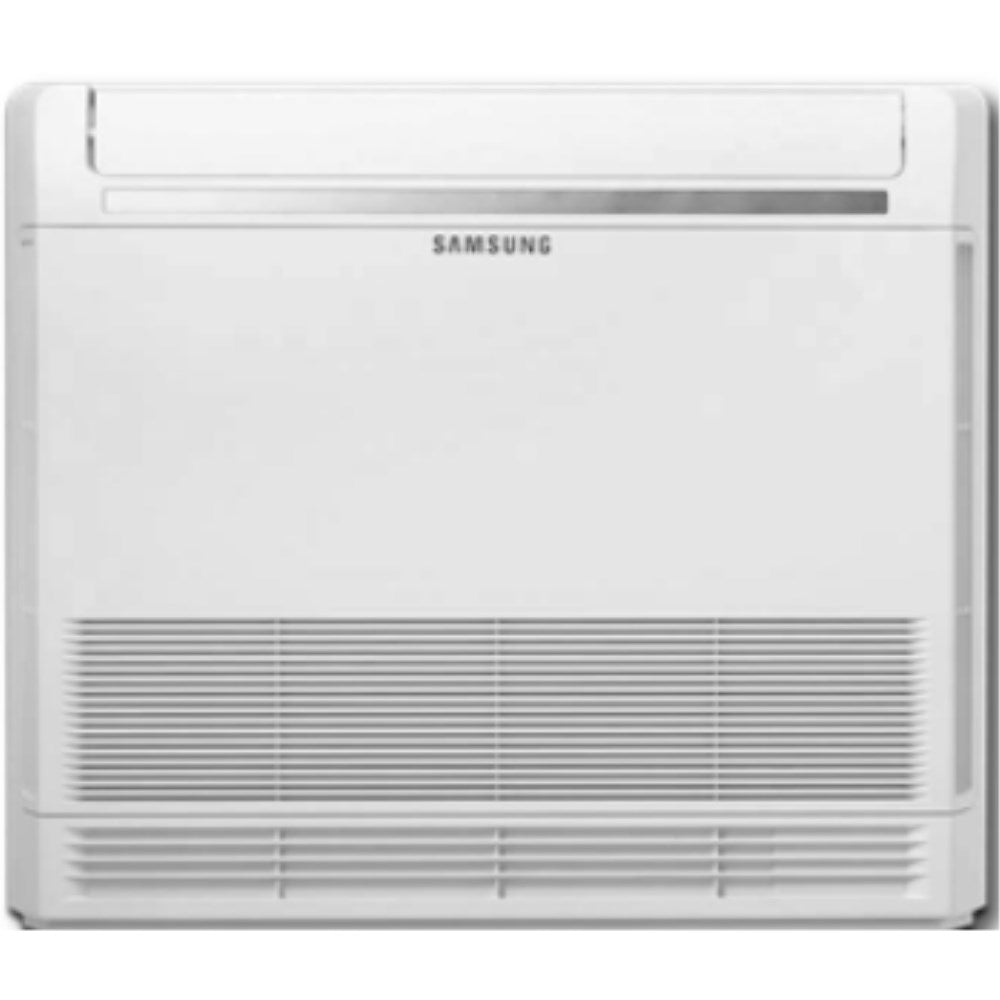

Samsung 12,000 BTU/Hr Multi-Zone Console Heat Pump | 208-230/1
Description
Read more
Replacement Product
Specification
BrandSamsung
Manufacturer["Samsung HVAC"]
ModelAJ012TNJDCH/AA-SAM
Voltage (V)208-230/1
RefrigerantR410A
Capacity (BTU/Hr)12000
Manufacturer NumberAJ012TNJDCH/AA
Nominal Capacity (Tons)1
ZoningMulti-Zone
Cooling Airflow (H/M/L/SL)220/254/300
Depth (in)7.8125
Drain Connection (in)1.25 OD
Height (in)24-7/16
Minimum Outdoor Cooling Temperature14 F (-10 C) and Warmer
Outdoor Heating Temperature Range-13 to 75 F (-25 to 24 C) Matched with any FJM Max Heat Compatible Outdoor, 5 to 75 F (-15 to 24 C) Matched with any FJM Compatible Outdoor
Sound Pressure Level (dBA)38/35/33
Suction Line Size (in)0.375 Flare
Weight (lbs)34.6
Width (in)28.375
Heat/Cool FunctionHeating and Cooling
Indoor Unit StyleFloor Mount
Standard Outdoor Cooling Temperature Range14 to 115 F (-10 to 46 C) Matched with any Compatible Outdoor
Frequency (Hz)60 Hz
CompatibleoutdoorunitsmultizoneAJ036TXS4CH/AA, AJ024TXS4CH/AA, AJ030TXS4CH/AA, AJ024TXJ3CH/AA, AJ020TXJ2CH/AA, AJ036TXJ4CH/AA, AJ048TXJ5CH/AA, AJ020TXS3CH/AA
EnclosurecolourWhite
MaximumcoolingairflowcfmNone
MaximumheatingairflowcfmNone
