Discontinued Model

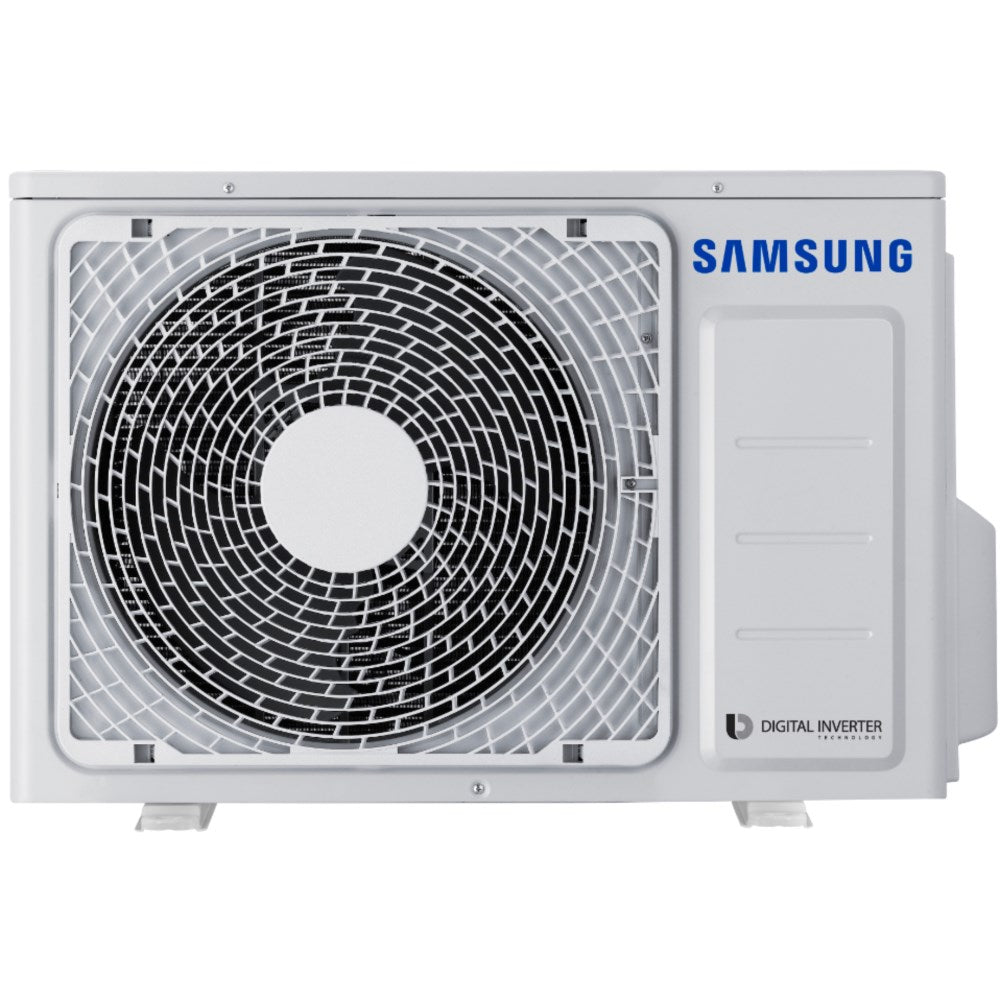

Samsung 12,000 BTU/Hr Outdoor Heat Pump Unit | 208-230/1
Description
Read more
Replacement Product
Samsung
Samsung WindFree 2.0 Outdoor Unit | 12,000 BTU/Hr | 208-230/1,2
- SKU
- AR12BSFCMWKXCV-SAM
- MFG
- AR12BSFCMWKXCV
Specification
BrandSamsung
Manufacturer["Samsung HVAC"]
ModelAR12TSFYBWKXCV-SAM
Compressor DesignBLDC Rotary
Voltage (V)208-230/1
RefrigerantR410A
Capacity (BTU/Hr)12000
Manufacturer NumberAR12TSFYBWKXCV
Nominal Capacity (Tons)1
Zoningzoning_Single-Zone
Compatible Indoor Units (Wall Mount)AR12TSFYBWKNCV
Compressor Rated Load Amps (208/230V)9.20A
Cooling Airflow (H/M/L/SL)300/335/371/385
Depth (in)11.25
Drain Connection (in)0.6875 OD
Energy Efficiency Rating (EER)12.05 EER with AR12TSFYBWKNCV
Energy Efficiency Rating (SEER)21.5 SEER with AR12TSFYBWKNCV, 21 to 21.99
Height (in)21-9/16
Maximum Fuse (Amps)20.00A
Maximum Line Set Length (ft)66
Minimum Outdoor Cooling Temperature50 F (10 C) and Warmer, 14 F (-10 C) and Warmer
Minimum Outdoor Heating Temperature-13 F (-25 C) or Warmer, 5 F (-15 C) or Warmer, -4 F (-20 C) or Warmer
Outdoor Heating Temperature Range-5 to 75 F (-21 to 24 C) Matched with AR12TSFYBWKNCV
Sound Pressure Level (dBA)46
Suction Line Size (in)0.375 Flare
Weight (lbs)69.9
Width (in)31.125
Heat/Cool FunctionHeating and Cooling
Standard Outdoor Cooling Temperature Range14 to 115 F (-10 to 46 C) Matched with AR12TSFYBWKNCV
Documentation
Manuals
wind-free-2-0_quantum-2.0_idu-odu-inst-manual_db68-08807a_english_1912023-e9d605c5_b3f63a59-e3c0-4829-9977-048dcef86149.pdf ar09tsfybwkncv_quantum-2-0_user-manual_rac024-00_191220_english-8c7076c2_5f9eba8c-569c-4db5-ad30-f5f81ffcc886.pdfParts & Components
exploded_views_and_part_list_ar12tsfybwkxcv_rxs12ybt.pdfDisclaimer
For professional use only. Refer to all information, warnings and instructions on Product and package labeling and accompanying documentation provided by the Product manufacturer. Product must be used in accordance with such labeling and documentation.
