Discontinued Model

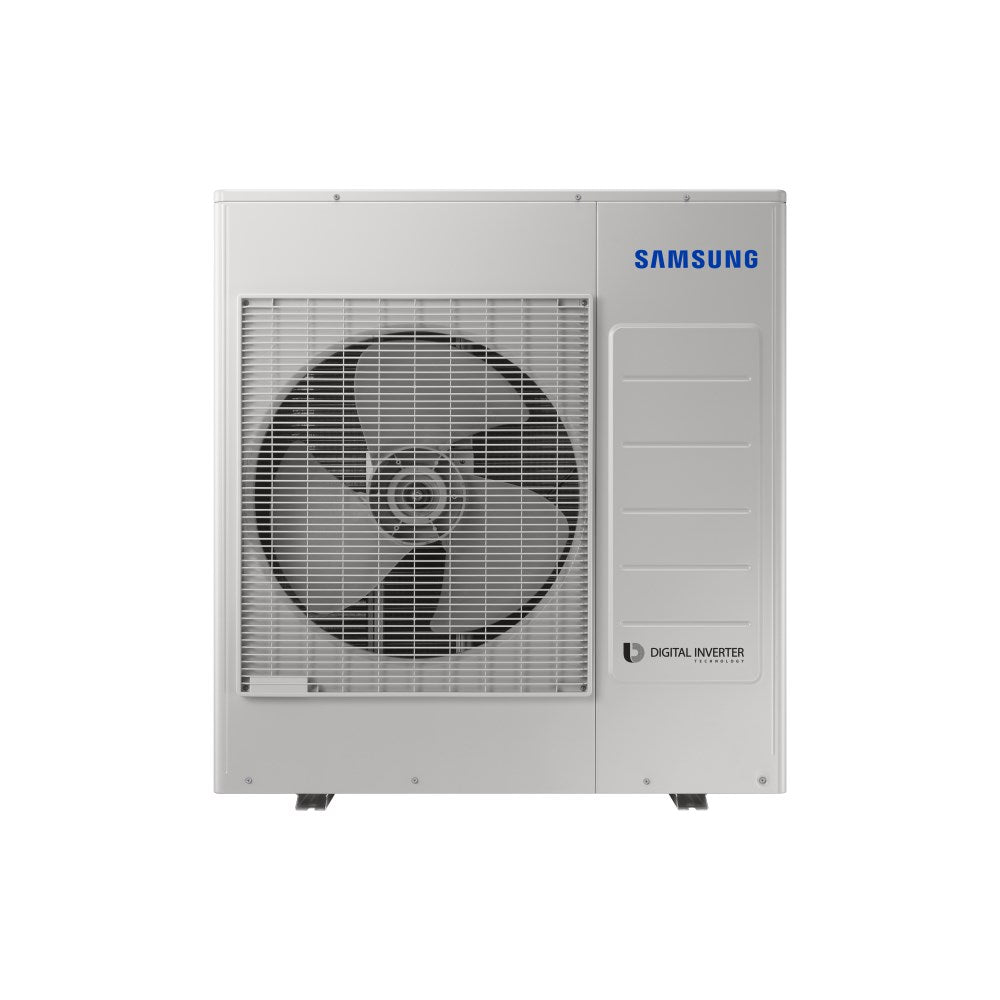

Samsung 24,000 BTU/Hr FJM 3 Port Multi-Zone Heat Pump Condensing Unit | 208-230/1
Description
Read more
Replacement Product
Specification
BrandSamsung
Manufacturer["Samsung HVAC"]
ModelAJ024TXJ3CH/AA-SAM
Compressor DesignInverter Driven, Twin BLDC Rotary
Voltage (V)208-230/1
RefrigerantR410A
Capacity (BTU/Hr)24000
Manufacturer NumberAJ024TXJ3CH/AA
Nominal Capacity (Tons)2
Zoningzoning_Multi-Zone
Compatible Indoor Units (Wall Mount)AR18TSFABWKNCV, AR18TSFYBWKNCV, AR15TSFABWKNCV, AR15TSFYBWKNCV, AR07TSFABWKNCV, AR07TSFYBWKNCV, AR09TSFABWKNCV, AR12TSFABWKNCV, AR12TSFYBWKNCV, AR09TSFYBWKNCV
Compressor Rated Load Amps (208/230V)13.30A
Depth (in)12.1875
Energy Efficiency Rating (EER)12.7 EER Non-Ducted, 11.4 EER Mixed, 10.1 EER Ducted
Energy Efficiency Rating (SEER)18 to 18.99, 18 SEER Mixed, 19 to 19.99, 17 SEER Ducted, 17 to 17.99, 19 SEER Non-Ducted
Height (in)31-7/16
Maximum Fuse (Amps)25.00A
Maximum Line Set Length (ft)230
Minimum Outdoor Cooling Temperature14 F (-10 C) and Warmer, 50 F (10 C) and Warmer
Minimum Outdoor Heating Temperature5 F (-15 C) or Warmer
Outdoor Heating Temperature Range5 to 75 F (-15 to 24 C)
Sound Pressure Level (dBA)48/51
Suction Line Size (in)0.5 X 2, 0.375 X 1
Weight (lbs)125.7
Width (in)34.625
Heat/Cool FunctionHeating and Cooling
Standard Outdoor Cooling Temperature Range14 to 115 F (-10 to 46 C)
CompatibleindoorunitscassetteAJ018TNNDCH/AA, AJ012TNNDCH/AA, AJ009TNNDCH/AA
CompatibleindoorunitsfloormountAJ009TNJDCH/AA, AJ018TNJDCH/AA, AJ015TNJDCH/AA, AJ012TNJDCH/AA
CompatibleindoorunitsslimductAJ012TNLDCH/AA, AJ018TNLDCH/AA, AJ009TNLDCH/AA
Documentation
Parts & Components
aj024txj3chaa-jxh24j3t-_exploded_view_parts_list-map-5a847026.pdfDisclaimer
