Discontinued Model

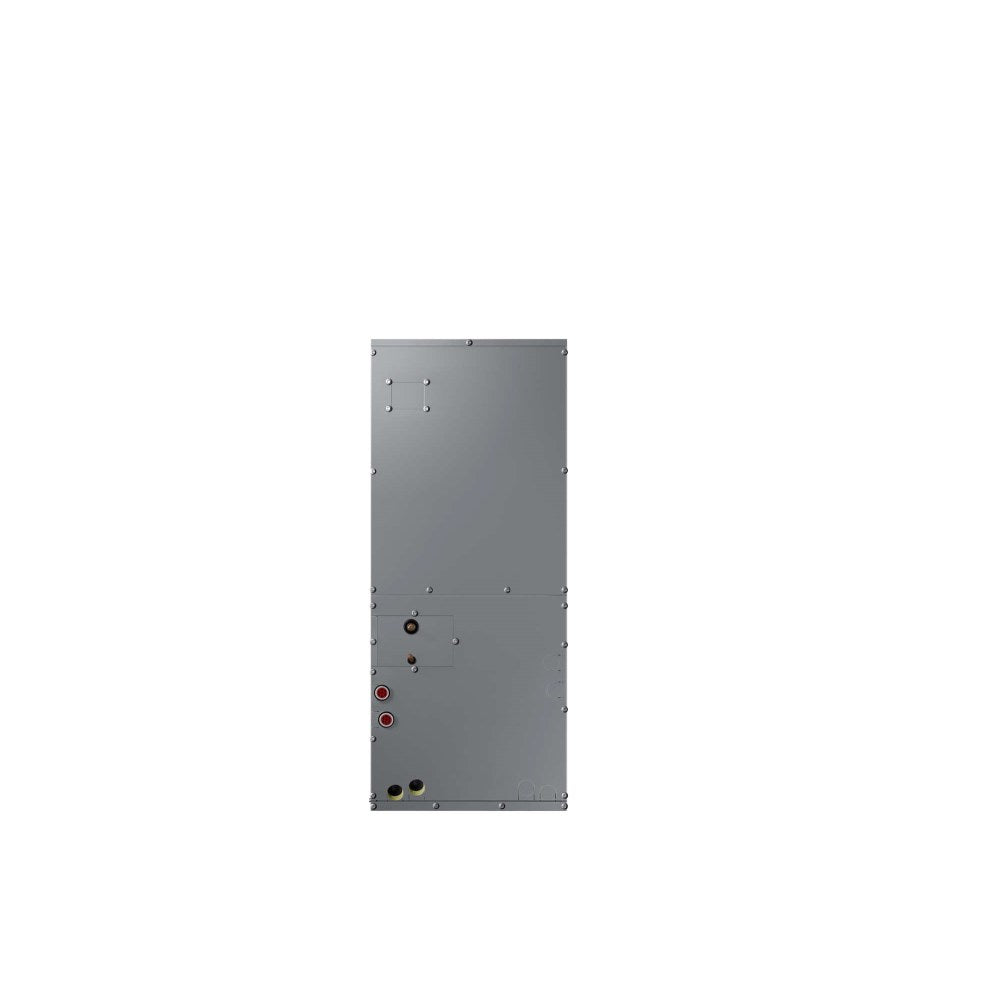

Samsung 24,000 BTU/Hr Multi-Position Air Handler | 208-230/1
Description
Read more
Specification
BrandSamsung
Manufacturer["Samsung HVAC"]
ModelAC024KNZDCH/AA-SAM
Voltage (V)208-230/1
RefrigerantR410A
Capacity (BTU/Hr)24000
Manufacturer NumberAC024KNZDCH/AA
Nominal Capacity (Tons)2
ZoningSingle-Zone
Cooling Airflow (H/M/L/SL)547/636/760
Depth (in)21
Drain Connection (in)0.75 FNPT
Height (in)43
Minimum Outdoor Cooling Temperature-5 F (-20 C) and Warmer
Modified Outdoor Cooling Temperature Range0 to 115 F (-18 to 46 C) Matched with AC024JXADCH/AA (Baffle Required)
Outdoor Heating Temperature Range-4 to 76 F (-20 to 24 C) Matched with AC024JXADCH/AA
Sound Pressure Level (dBA)41/38/35
Suction Line Size (in)0.625 Flare
Weight (lbs)98.1
Width (in)17.5
Heat/Cool FunctionHeating and Cooling
Indoor Unit StyleAir Handler
Standard Outdoor Cooling Temperature Range23 to 115 F (-5 to 46 C) Matched with AC024JXADCH/AA
Frequency (Hz)60 Hz
CompatibleoutdoorunitssinglezoneAC024JXADCH/AA
MaximumcoolingairflowcfmNone
MaximumheatingairflowcfmNone
Documentation
Manuals
ac-knzdchaa-mpah-installation-manual_english_180731-14bc9d66_ec86e0e5-dd3c-417c-b685-738501d635f5.pdf cac-mpah-service-manual_ac-00154e_1_160317_2-e160929c_aba658fa-427c-414a-9ce8-560d2a52955b.pdfDisclaimer
For professional use only. Refer to all information, warnings and instructions on Product and package labeling and accompanying documentation provided by the Product manufacturer. Product must be used in accordance with such labeling and documentation.
