Discontinued Model

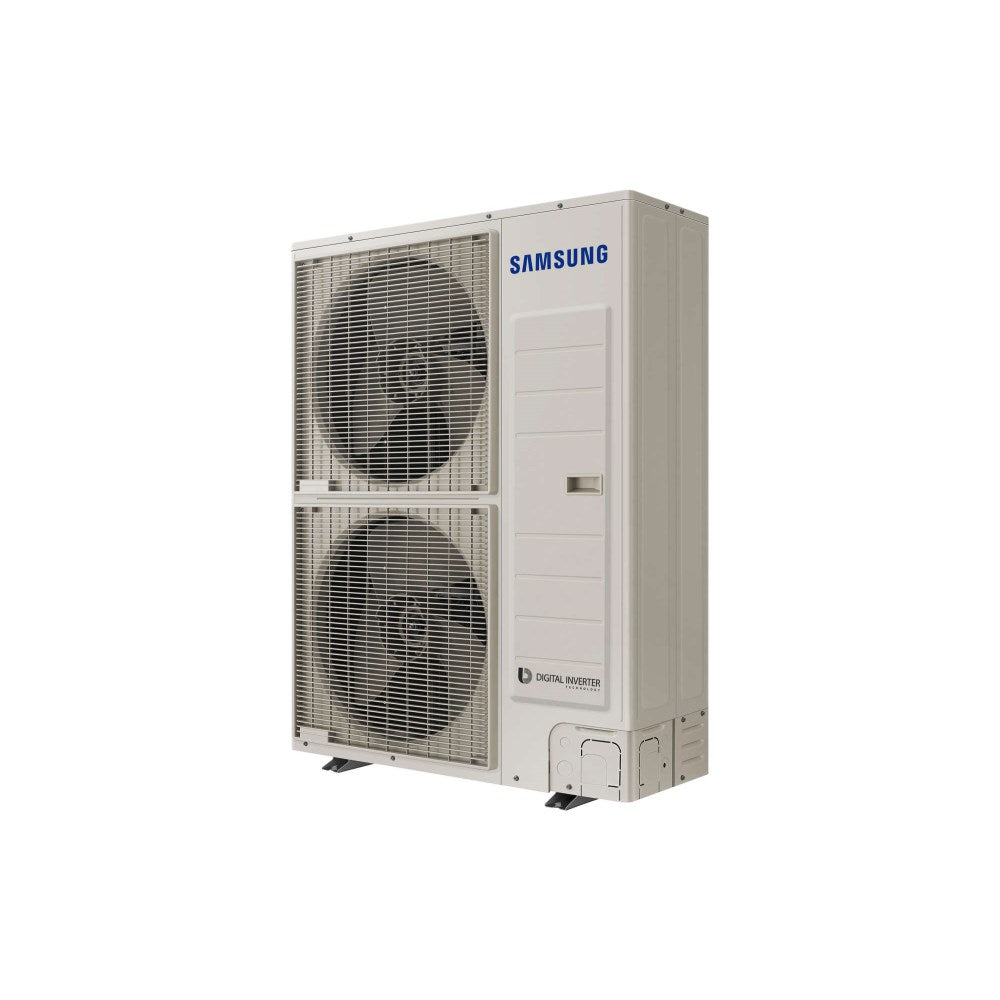

Samsung 36,000 BTU/Hr CAC MAX Heat Outdoor Heat Pump Unit | 208-230/1
Description
Read more
Replacement Product
Samsung
Samsung 36000 BTU | Max Outdoor Heat Pump | 208-230V
- SKU
- AC036BXSCCH/AA-SAM
- MFG
- AC036BXSCCH/AA
Specification
BrandSamsung
Manufacturer["Samsung HVAC"]
ModelAC036JXSCCH/AA-SAM
Compressor DesignInverter Driven, Twin BLDC Rotary
Voltage (V)208-230/1
RefrigerantR410A
Capacity (BTU/Hr)36000
Manufacturer NumberAC036JXSCCH/AA
Nominal Capacity (Tons)3
Zoningzoning_Single-Zone
Cooling Airflow (H/M/L/SL)848/989/1165 with AC036MNHDCH/AA, 620/840/1020 with AC036NN4DCH/AA, 883/1042/1165 with AC036KNZDCH/AA
Depth (in)13
Drain Connection (in)0.75 FNPT
Energy Efficiency Rating (EER)11 EER with AC036KNZDCH/AA, 12.9 EER with AC036NN4DCH/AA, 12.2 EER with AC036MNHDCH/AA
Energy Efficiency Rating (SEER)20 to 20.99, 20 SEER with AC036KNZDCH/AA, AC036MNHDCH/AA or AC036NN4DCH/AA
Height (in)55-7/8
Maximum Fuse (Amps)45.00A
Maximum Line Set Length (ft)246
Minimum Outdoor Cooling Temperature-5 F (-20 C) and Warmer, 50 F (10 C) and Warmer, 14 F (-10 C) and Warmer
Minimum Outdoor Heating Temperature-13 F (-25 C) or Warmer, -4 F (-20 C) or Warmer, 5 F (-15 C) or Warmer
Modified Outdoor Cooling Temperature Range-4 to 115 F (-20 to 46 C) Matched with AC036KNZDCH/AA, AC036MNHDCH/AA or AC036NN4DCH/AA (Wind Baffle Required)
Outdoor Heating Temperature Range-13 to 75 F (-25 to 24 C) Matched with AC036KNZDCH/AA, AC036MNHDCH/AA or AC036NN4DCH/AA
Sound Pressure Level (dBA)51/53
Suction Line Size (in)0.625 Flare
Weight (lbs)211.64
Width (in)37
Heat/Cool FunctionHeating and Cooling
Standard Outdoor Cooling Temperature Range23 to 115 F (-5 to 46 C) Matched with AC036KNZDCH/AA, AC036MNHDCH/AA or AC036NN4DCH/AA
CompatibleindoorunitsairhandlerAC036KNZDCH/AA
CompatibleindoorunitscassetteAC036NN4DCH/AA
CompatibleindoorunitsductedconcealedAC036MNHDCH/AA
Documentation
Data Sheets
ac036nn4dch_submittal_max-heat-cac-wind-free-4-way_01132020-fc55f402.pdf ac036knzdch_submittal_max-heat-cac-mpah_01132020-cad5ad53_38ea146c-2587-4756-a7c3-2b9d59ebfd3c.pdf ac036mnhdch_submittal_2020-max-heat-cac-duct_01102020-659c2806.pdfParts & Components
ac036jxscch-aa-exploded-parts-view_112015-2c24b7d4.pdfDisclaimer
