Discontinued Model

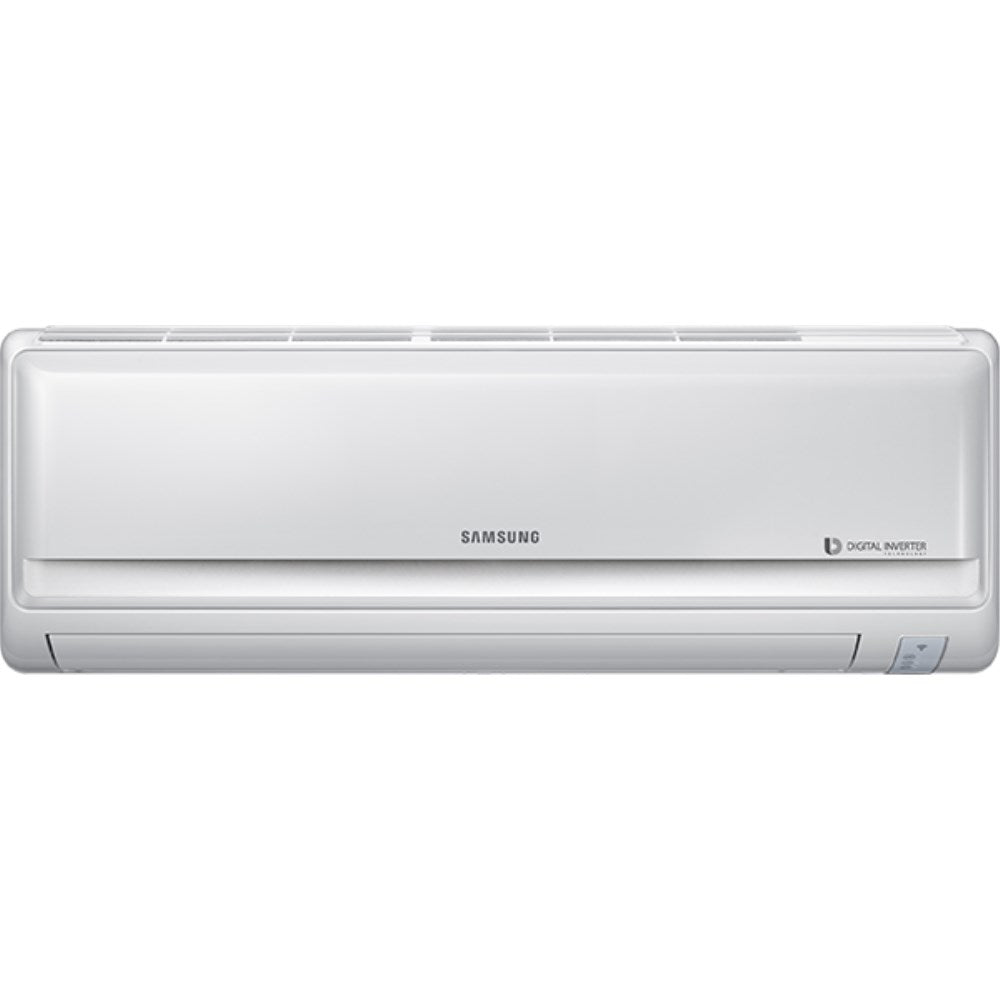

Samsung MAX 36,000 BTU/Hr 18 SEER Wall Mounted Heat Pump | 208-230/1
Description
Read more
Replacement Product
Samsung
Samsung 36,000 Btu/Hr Wall Mount 18 SEER Heat Pump
- SKU
- AR36BSHUMGMN/CV-SAM
- MFG
- AR36BSHUMGMN/CV
Specification
BrandSamsung
Manufacturer["Samsung HVAC"]
ModelAQN36VFUAGM/CV-SAM
Voltage (V)208-230/1
RefrigerantR410A
Capacity (BTU/Hr)36000
Manufacturer NumberAQN36VFUAGM/CV
Nominal Capacity (Tons)3
ZoningSingle-Zone
Cooling Airflow (H/M/L/SL)580/750/920
Depth (in)10
Drain Connection (in)0.6875 OD
Height (in)13-9/16
Minimum Outdoor Cooling Temperature-5 F (-20 C) and Warmer
Modified Outdoor Cooling Temperature Range0 to 115 F (-18 to 46 C) Matched with AQX36VFUAGM (Baffle Required)
Outdoor Heating Temperature Range5 to 75 F (-15 to 24 C) Matched with AQX36VFUAGM
Sound Pressure Level (dBA)49/33
Suction Line Size (in)0.625 Flare
Weight (lbs)40.12
Width (in)50.375
Heat/Cool FunctionHeating and Cooling
Indoor Unit StyleWall Mount
Standard Outdoor Cooling Temperature Range14 to 115 F (-10 to 46 C) Matched with AQX36VFUAGM
Frequency (Hz)60 Hz
CompatibleoutdoorunitssinglezoneAQX36VFUAGM
EnclosurecolourWhite
MaximumcoolingairflowcfmNone
MaximumheatingairflowcfmNone
Documentation
Manuals
max_installation_user-manual_32163a_4_english-dfcaea12_210dc197-5869-4fc9-933b-6b6b1cbd1cfe.pdf service-manual_max-series-d4409fe9.pdfDisclaimer
