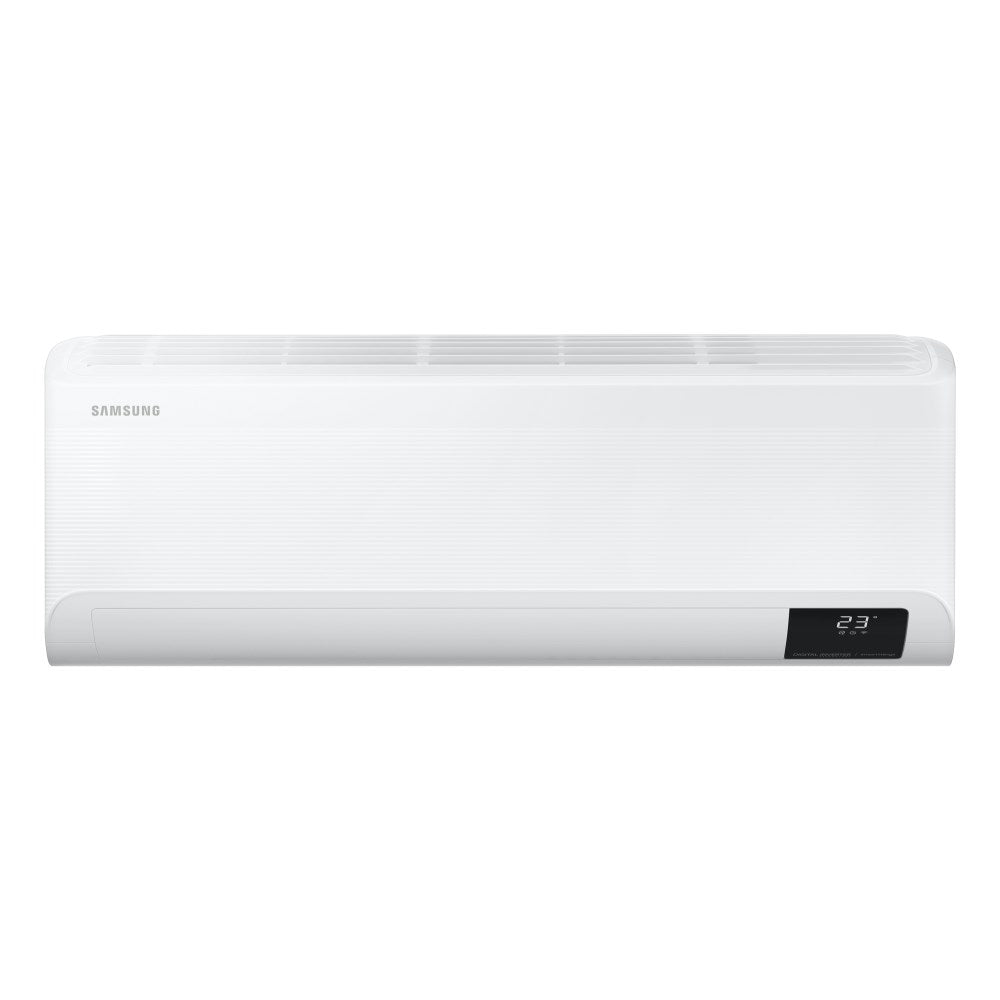

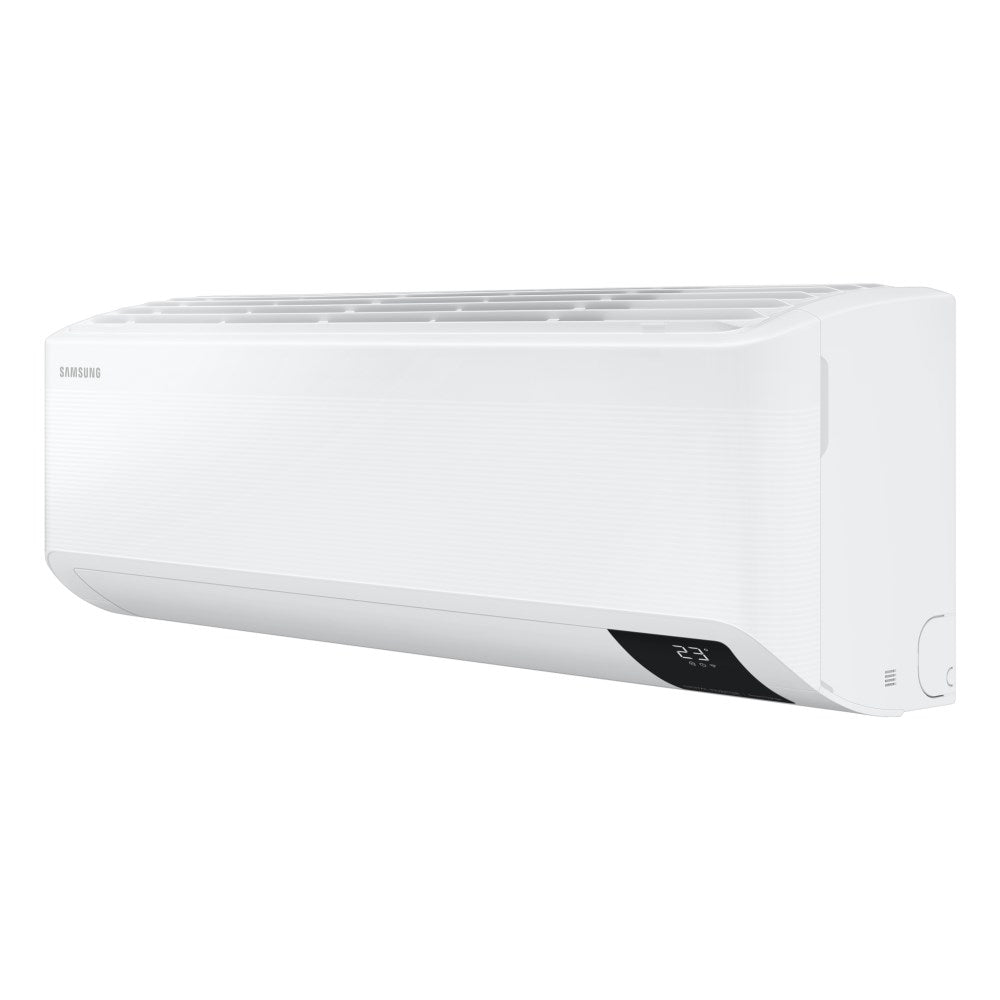

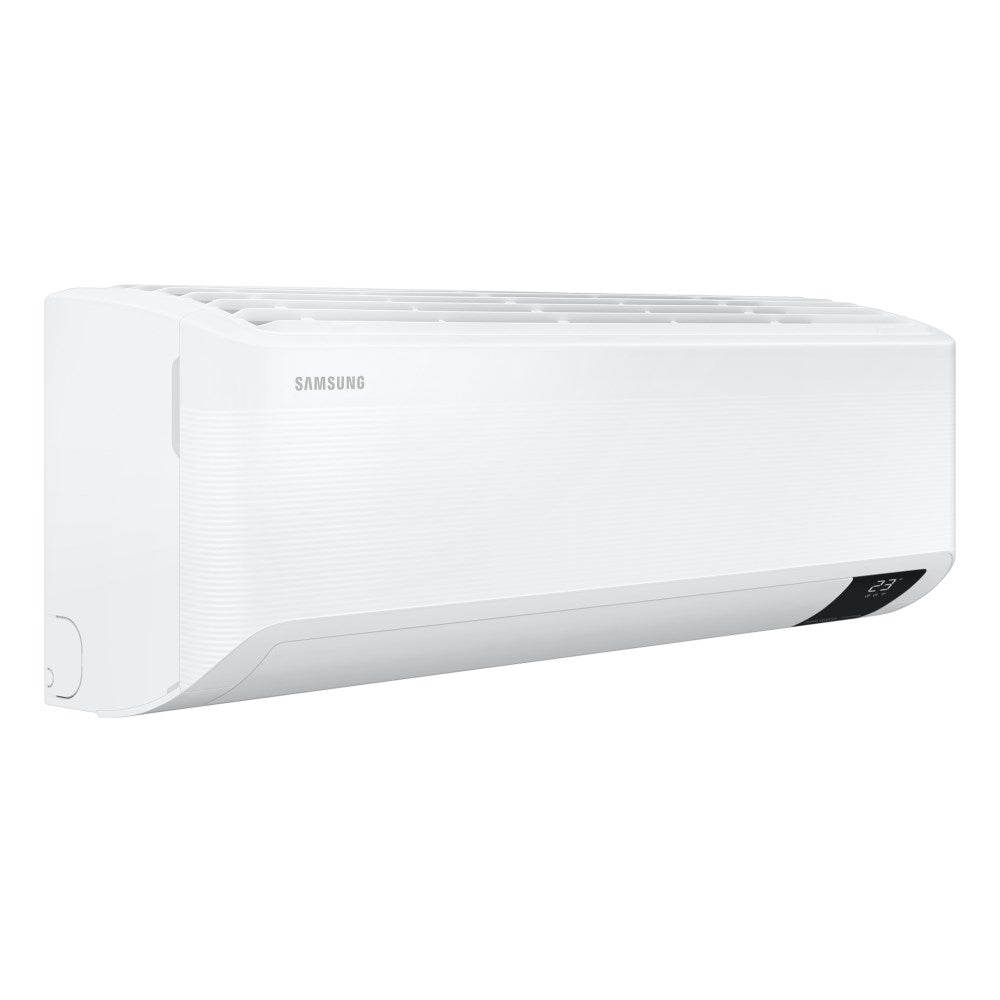

Samsung Quantum 2.0 15,000 BTU/Hr Wall Mounted Heat Pump with Wi-Fi | 208-230/1
Description
Read more
Replacement Product
Specification
BrandSamsung
Manufacturer["Samsung HVAC"]
ModelAR15TSFYBWKNCV-SAM
Voltage (V)208-230/1
RefrigerantR410A
Capacity (BTU/Hr)15000
Manufacturer NumberAR15TSFYBWKNCV
Nominal Capacity (Tons)1.25
ZoningMulti-Zone
Cooling Airflow (H/M/L/SL)260/313/366/406
Depth (in)8.4375
Drain Connection (in)0.6875 OD
Height (in)11-3/4
Minimum Outdoor Cooling Temperature14 F (-10 C) and Warmer
Outdoor Heating Temperature Range5 to 75 F (-15 to 24 C) Matched with any FJM Compatible Outdoor, -13 to 75 F (-25 to 24 C) Matched with any FJM Max Heat Compatible Outdoor
Sound Pressure Level (dBA)41/25
Suction Line Size (in)0.375 Flare
Weight (lbs)23.4
Width (in)35
Heat/Cool FunctionHeating and Cooling
Indoor Unit StyleWall Mount
Standard Outdoor Cooling Temperature Range14 to 115 F (-10 to 46 C) Matched with any Compatible Outdoor
Frequency (Hz)60 Hz
CompatibleoutdoorunitsmultizoneAJ036TXJ4CH/AA, AJ024TXJ3CH/AA, AJ020TXS3CH/AA, AJ048TXJ5CH/AA, AJ036TXS4CH/AA, AJ024TXS4CH/AA, AJ030TXS4CH/AA, AJ020TXJ2CH/AA
EnclosurecolourWhite
MaximumcoolingairflowcfmNone
MaximumheatingairflowcfmNone
