Discontinued Model

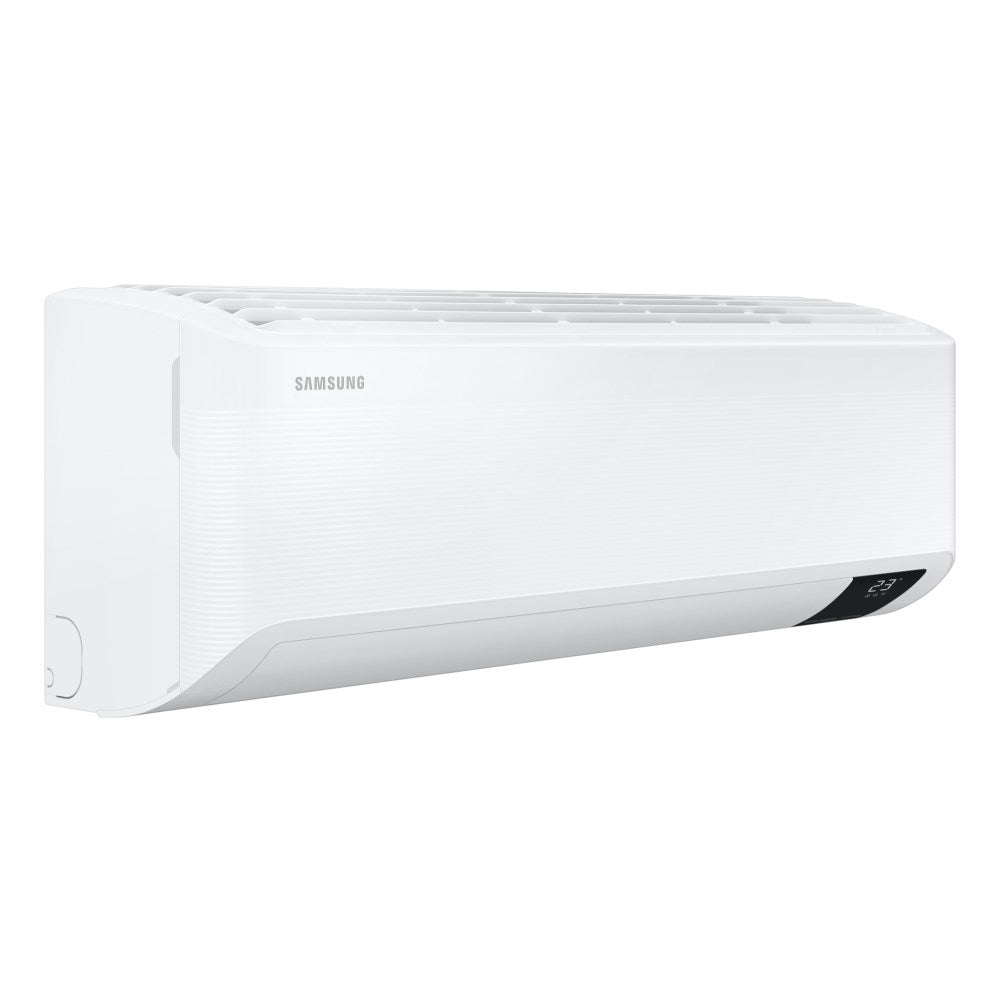

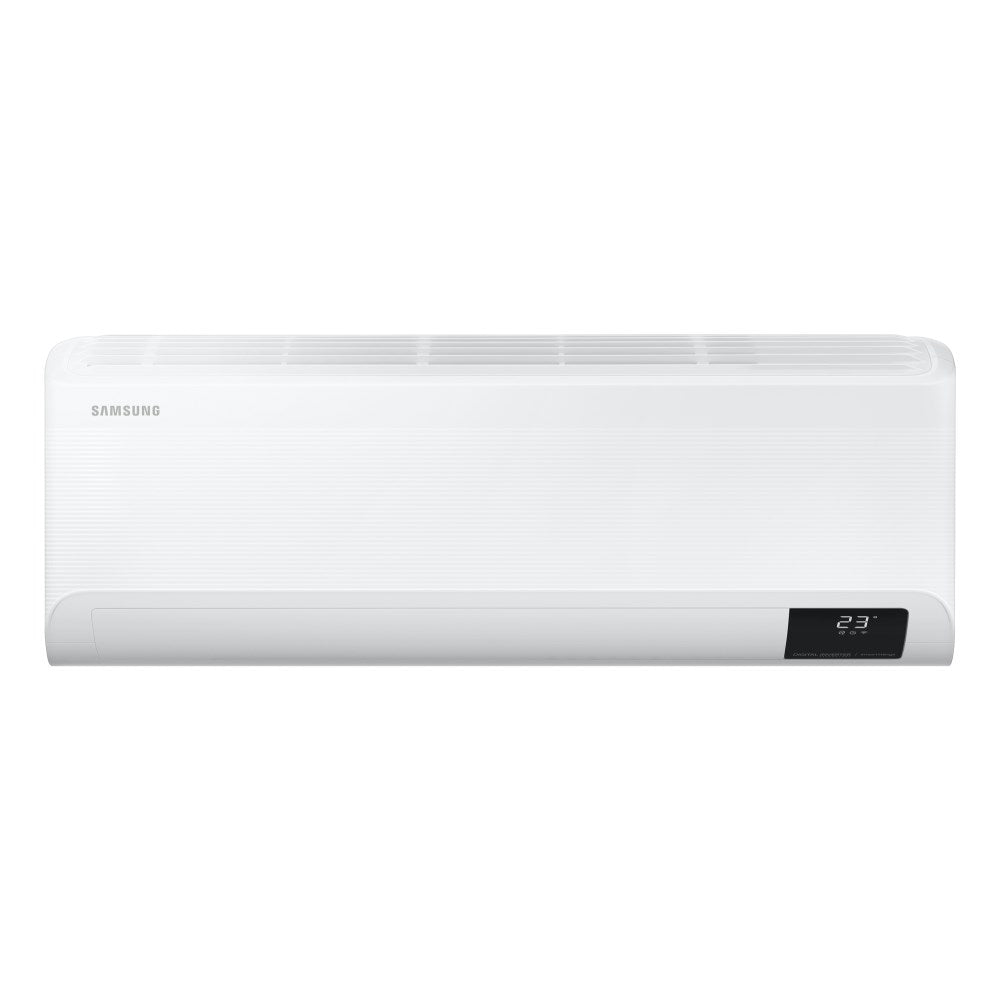

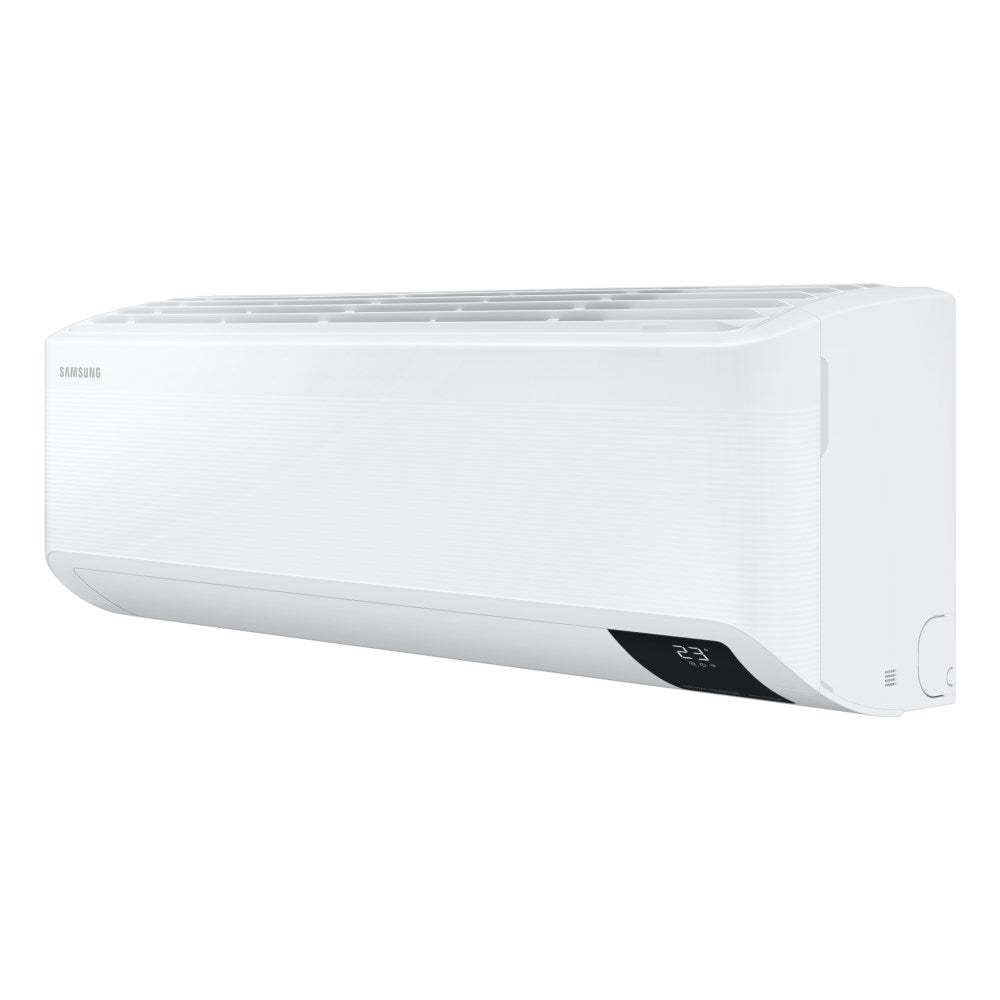

Samsung Quantum 2.0 18,000 BTU/Hr Wall Mounted Heat Pump with Wi-Fi | 208-230/1
Description
Read more
Replacement Product
Specification
BrandSamsung
Manufacturer["Samsung HVAC"]
ModelAR18TSFYBWKNCV-SAM
Voltage (V)208-230/1
RefrigerantR410A
Capacity (BTU/Hr)18000
Manufacturer NumberAR18TSFYBWKNCV
Nominal Capacity (Tons)1.5
Zoning["Single-Zone","Multi-Zone"]
Cooling Airflow (H/M/L/SL)459/509/558/583 Single Zone, 401/435/469/486 Multi-Zone
Depth (in)8.4375
Drain Connection (in)0.6875 OD
Height (in)11-13/16
Minimum Outdoor Cooling Temperature14 F (-10 C) and Warmer
Outdoor Heating Temperature Range-13 to 75 F (-25 to 24 C) Matched with any FJM Max Heat Compatible Outdoor, -5 to 75 F (-20 to 24 C) Matched with AR18TSFYBWKXCV, 5 to 75 F (-15 to 24 C) Matched with any FJM Compatible Outdoor
Sound Pressure Level (dBA)41/28
Suction Line Size (in)0.5 Flare
Weight (lbs)25.4
Width (in)41.5
Heat/Cool FunctionHeating and Cooling
Indoor Unit StyleWall Mount
Standard Outdoor Cooling Temperature Range14 to 115 F (-10 to 46 C) Matched with AR18TSFYBWKXCV or any FJM Compatible Outdoor
Frequency (Hz)60 Hz
CompatibleoutdoorunitsmultizoneAJ036TXS4CH/AA, AJ024TXS4CH/AA, AJ030TXS4CH/AA, AJ048TXJ5CH/AA, AJ036TXJ4CH/AA, AJ024TXJ3CH/AA
CompatibleoutdoorunitssinglezoneAR18TSFYBWKXCV
EnclosurecolourWhite
MaximumcoolingairflowcfmNone
MaximumheatingairflowcfmNone
Documentation
Manuals
wind-free-2-0_quantum-2.0_idu-odu-inst-manual_db68-08807a_english_08202020-87b54007_b236f7c4-ae72-48a2-9a49-7e51f43531f4.pdf wind-free-2-0_quantum-2.0_idu-odu-inst-manual_db68-08807a_english_1912023-e9d605c5_eaef9ca9-6416-4edf-b500-49ca0b009f8b.pdf ar09tsfybwkncv_quantum-2-0_user-manual_rac024-00_191220_english-8c7076c2_19f1bc49-a51e-4904-bba5-2efea8643f5b.pdf service-manual_aj0-t-_ac-00261e_1_20200123-2aa08431_5da042e3-d85b-4c2a-8301-4b148e826b0b.pdf wind-free-2_quantum-2_service_manual_qmd_cv_12262019-9efe95ad_4ed48357-0d9b-4726-8654-ff124a11b0c8.pdfData Sheets
ar18tsfybwkncv_ar18tsfybwkxcv-rns18ybt_rxs18ybt-_submittal_quantum-2-0_02132020-01be3a29.pdf ar18tsfybwkncv-rns18ybt-_multi-zone-submittal_quantum-2-0_03172020-7cb2b3fd.pdf ar18tsfybwkncv-rns18ybt-_multi-zone-submittal_quantum-2-0_07102020-9a6f148f.pdf ar18tsfybwkncv_ar18tsfybwkxcv-rns18ybt_rxs18ybt-_submittal_quantum-2-0_07142020-5aea7214.pdf tdb-free-joint-multi-for-america_ver1-1_04292020-6be901cf_945113f1-4f1d-40ff-b603-11d24a64e2c1.pdf tdb-free-joint-multi-max-heat_ver1-1_04292020-d2a3bf19_ceda8821-8b59-43d2-9bce-52b036ef9644.pdf tdb_wind-free-2_max-heat-2_quantum-2_ver-1.5_20200513-f46072ee_2112b125-0cea-41de-a474-cdca11c2f883.pdfBrochures
73583_samsung_2020_literature_update_fjm_brochure_hr_4c04177b-89a6-44e6-af20-12ae97ed224d.pdf 72919-01_samsung_rac_brochure_march2020_final_24fd11b0-3e57-4f72-9651-d27859a30d83.pdfParts & Components
exploded_views_and_part_list_ar18tsfybwkncv_rns18ybt.pdfDisclaimer
For professional use only. Refer to all information, warnings and instructions on Product and package labeling and accompanying documentation provided by the Product manufacturer. Product must be used in accordance with such labeling and documentation.
