Discontinued Model

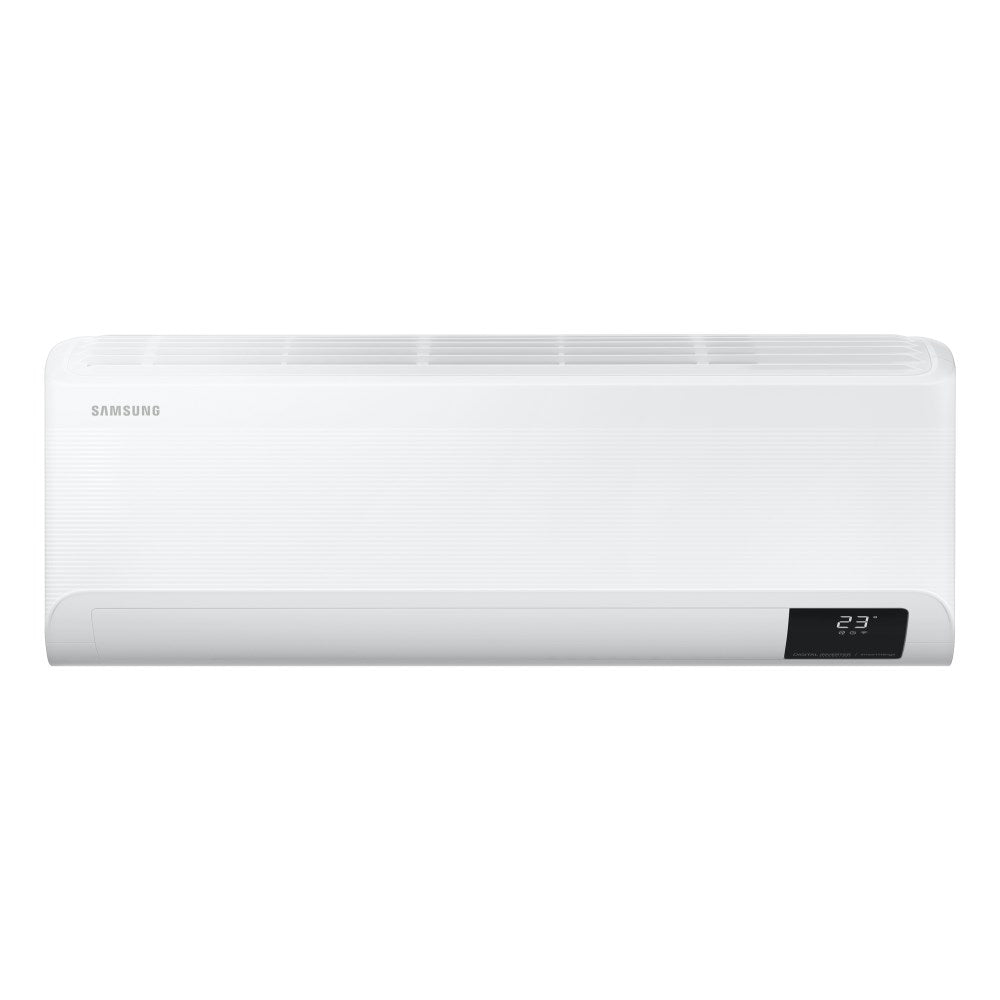

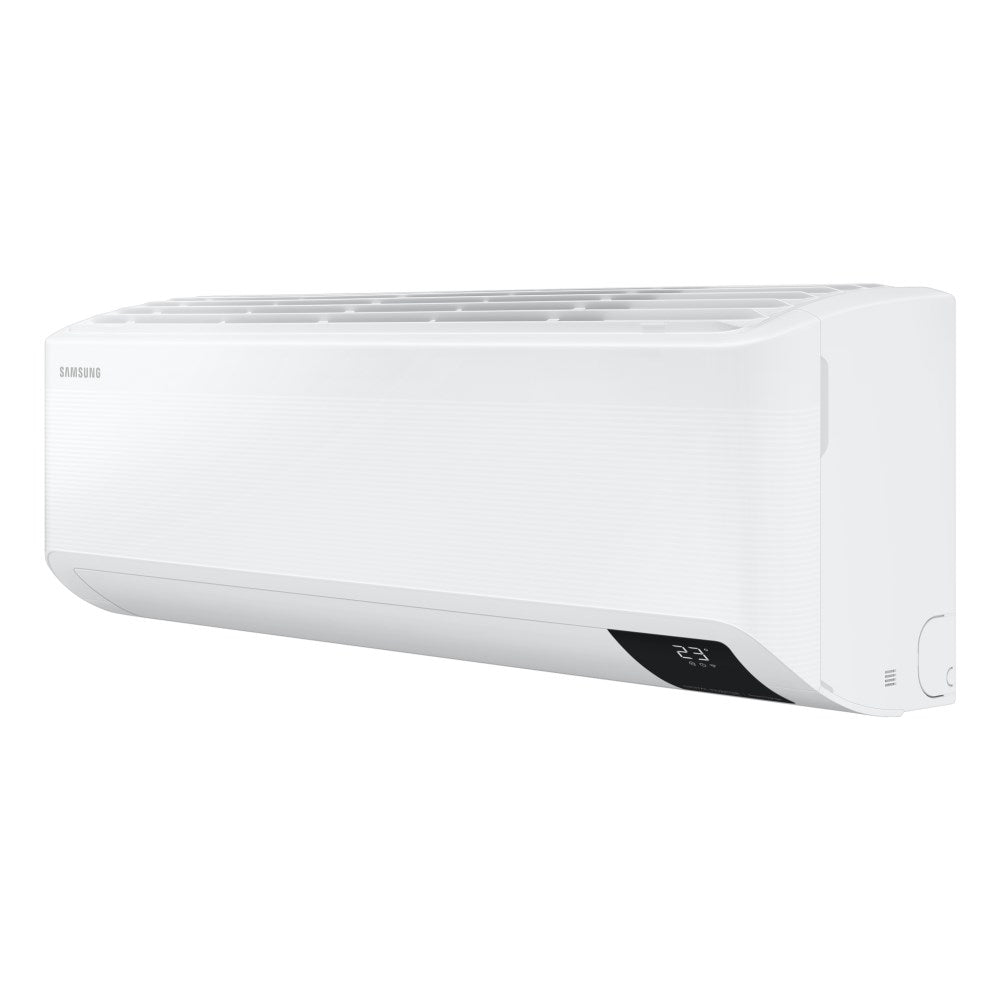

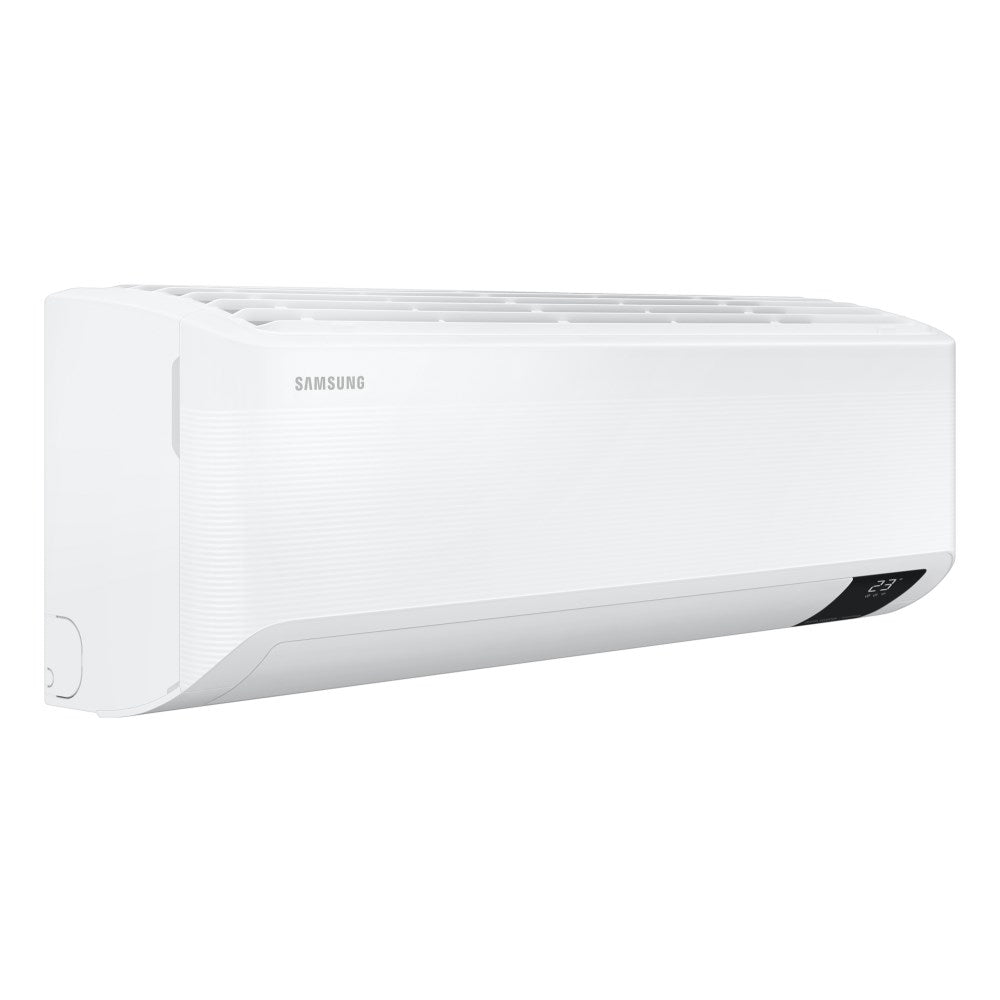

Samsung Quantum 2.0 7,000 BTU/Hr Wall Mounted Heat Pump with Wi-Fi | 208-230/1
Description
Read more
Replacement Product
Specification
BrandSamsung
Manufacturer["Samsung HVAC"]
ModelAR07TSFYBWKNCV-SAM
Voltage (V)208-230/1
RefrigerantR410A
Capacity (BTU/Hr)7000
Manufacturer NumberAR07TSFYBWKNCV
Nominal Capacity (Tons)3/5
ZoningMulti-Zone
Cooling Airflow (H/M/L/SL)309/322/336/350
Depth (in)8.4375
Drain Connection (in)0.6875 OD
Height (in)11-3/4
Minimum Outdoor Cooling Temperature14 F (-10 C) and Warmer
Outdoor Heating Temperature Range5 to 75 F (-15 to 24 C) Matched with any FJM Compatible Outdoor, -13 to 75 F (-25 to 24 C) Matched with any FJM Max Heat Compatible Outdoor
Sound Pressure Level (dBA)37/23
Suction Line Size (in)0.375 Flare
Weight (lbs)20.1
Width (in)32.3125
Heat/Cool FunctionHeating and Cooling
Indoor Unit StyleWall Mount
Standard Outdoor Cooling Temperature Range14 to 115 F (-10 to 46 C) Matched with any Compatible Outdoor
Frequency (Hz)60 Hz
CompatibleoutdoorunitsmultizoneAJ030TXS4CH/AA, AJ020TXS3CH/AA, AJ036TXS4CH/AA, AJ024TXS4CH/AA, AJ024TXJ3CH/AA, AJ048TXJ5CH/AA, AJ036TXJ4CH/AA, AJ020TXJ2CH/AA
EnclosurecolourWhite
MaximumcoolingairflowcfmNone
MaximumheatingairflowcfmNone
Documentation
Manuals
wind-free-2-0_quantum-2.0_idu-odu-inst-manual_db68-08807a_english_08202020-87b54007.pdf ar09tsfybwkncv_quantum-2-0_user-manual_rac024-00_191220_english-8c7076c2_31449054-9f29-42ea-8642-ede269f6ce9c.pdf service-manual_aj0-t-_ac-00261e_1_20200123-2aa08431_ed8dbf52-4592-4e77-aa58-e376e0c53dd1.pdf wind-free-2_quantum-2_service_manual_qmd_cv_12262019-9efe95ad.pdfData Sheets
ar07tsfybwkncv-rns07ybt-_multi-zone-submittal_quantum-2-0_07102020-da68d156.pdf tdb-free-joint-multi-for-america_ver1-1_04292020-6be901cf_fd67ea1b-6d75-4cef-84e3-cbb13c4609d0.pdf tdb_wind-free-2_max-heat-2_quantum-2_ver-1.5_20200513-f46072ee.pdfParts & Components
exploded_views_and_part_list_ar07tsfybwkncv_rns07ybt.pdfDisclaimer
