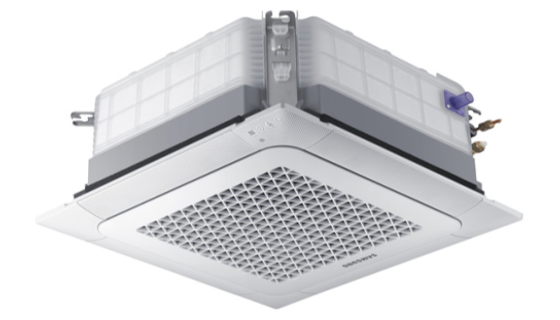

Samsung R32 12,000 BTU/Hr Wf Mini 4way Cst Heat Pump IDU
Specification
BrandSamsung
Manufacturer["Samsung HVAC"]
ModelAC012DNNDCG/AA-SAM
Voltage (V)208-230
RefrigerantR32
Capacity (BTU/Hr)12000
Manufacturer NumberAC012DNNDCG/AA
ZoningMulti-Zone
Cooling Airflow (H/M/L/SL)226 / 283 / 325
Cooling Capacity (BTU/Hr)12000
Depth (in)22.625
Drain Connection (in)1.25
Heating Airflow (H/M/L/SL, CFM)226 / 283 / 325
Height (in)9.8125
Refrigerant ControlElectronic Expansion Valve
Sound Pressure Level (dBA)25 / 30 / 34
Suction Line Size (in)0.375
Weight (lbs)25.4
Width (in)22.625
Fan TypeTurbo Fan
Heat/Cool FunctionHeating and Cooling
Indoor Unit StyleCeiling Cassette
Motor TypeBLDC
Fan Motor TypeBLDC
Frequency (Hz)60
AirfilterWashable
Fanmotoroutput65
FanspeedsThree
Maximumcoolingairflowcfm325
Maximumheatingairflowcfm325
Powerfrequency60
Documentation
Data Sheets
Submittal-AC012DNNDCG-AA-SAM-f3887abb.pdfParts & Components
Parts-List-AC012DNNDCG-AA-SAM-cb713d7e.pdfDisclaimer
For professional use only. Refer to all information, warnings and instructions on Product and package labeling and accompanying documentation provided by the Product manufacturer. Product must be used in accordance with such labeling and documentation.
