Manufacturer["Samsung HVAC"]

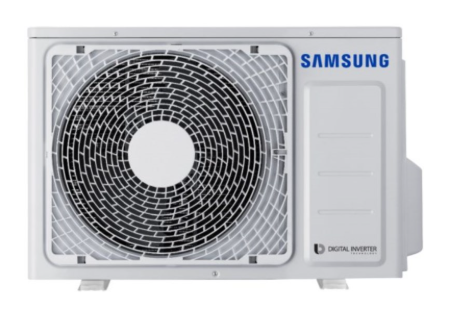

ModelAR18DXFAMWKXCV-SAM
Compressor DesignInverter Driven, Twin BLDC Rotary
Voltage (V)208-230
RefrigerantR32
Capacity (BTU/Hr)18000
Efficiency EER212.85
Efficiency SEER221.5
Manufacturer NumberAR18DXFAMWKXCV
ZoningSingle-Zone
Airflow (CFM)2013
ColourWhite
Compressor Rated Load Amps (208/230V)15.2
Depth (in)12.1875
Drain Connection (in)0.6875
Factory Charge (lbs)3.3
Fan Motor Rated Output (Watts)125
Height (in)31.4375
HSPF2 Rating9
Max Fuse Size / Fusible Max30
Outdoor Noise Level (dBA)51
Refrigerant ControlElectronic Expansion Valve
Suction Line Size (in)1/2
Weight (lbs)108
Width (in)34.625
Fan TypePropeller Fan
Heat/Cool FunctionHeating and Cooling
Standard Outdoor Cooling Temperature Range14 - 115 F (-10 - 46 C)
Fan Motor TypeBLDC With Axial Fan
MaterialGalvanized Steel
CabinetfinishBaked Powder Coated Paint
CoiltypeFin & Tube
CondensermotortypeBLDC with Axial Type Fan
Fanmotorfullloadamps208230v1.25
Heatingoperatingtemperature-5 - 75 F (-20.6 - 24 C)
