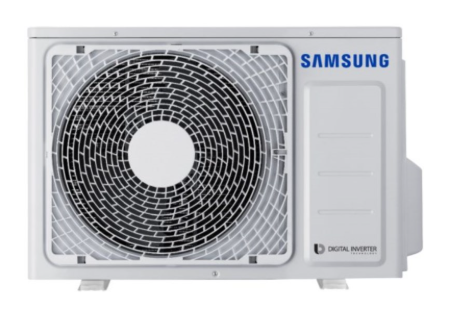

Manufacturer["Samsung HVAC"]
ModelAR24DXFAMWKXCV-SAM
Compressor DesignInverter Driven, Twin BLDC Rotary
Voltage (V)208-230
RefrigerantR32
Capacity (BTU/Hr)24000
Efficiency EER212.2
Efficiency SEER220
Manufacturer NumberAR24DXFAMWKXCV
ZoningSingle-Zone
Airflow (CFM)2825
ColourWhite
Compressor Rated Load Amps (208/230V)7.8
Depth (in)13
Drain Connection (in)0.6875
Factory Charge (lbs)4.4125
Fan Motor Rated Output (Watts)125
Height (in)39.3125
HSPF2 Rating8
Max Fuse Size / Fusible Max30
Outdoor Noise Level (dBA)54
Refrigerant ControlElectronic Expansion Valve
Suction Line Size (in)5/8
Weight (lbs)150.4
Width (in)37
Fan TypePropeller Fan
Heat/Cool FunctionHeating and Cooling
Standard Outdoor Cooling Temperature Range14 - 115 F (-10 - 46 C)
Fan Motor TypeBLDC With Axial Fan
MaterialGalvanized Steel
CabinetfinishBaked Powder Coated Paint
CoiltypeFin & Tube
CondensermotortypeBLDC with Axial Type Fan
Fanmotorfullloadamps208230v1.25
Heatingoperatingtemperature-5 - 75 F (-20.6 - 24 C)
