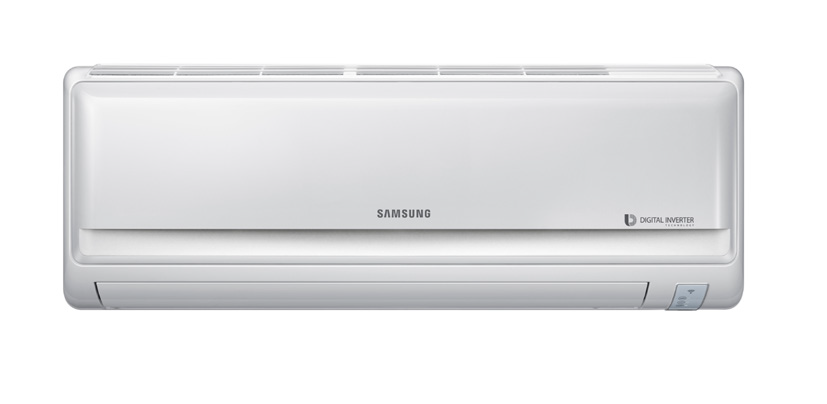

Manufacturer["Samsung HVAC"]
ModelAC030DNTDCG/AA-SAM
Voltage (V)208-230
RefrigerantR32
Capacity (BTU/Hr)30000
Efficiency EER212.5
Efficiency SEER221
Manufacturer NumberAC030DNTDCG/AA
Nominal Capacity (Tons)2.5
ZoningSingle-Zone
Airflow (CFM)777
Compressor TypeInverter Driven, Twin BLDC Rotary
Cooling Airflow (H/M/L/SL)671 / 724 / 777
Cooling Capacity (BTU/Hr)30000
Depth (in)13.625 (13-5/8)
Drain Connection (in)0.6875
Enhanced Low Ambient Outdoor Cooling Temperature Range-4 - 122 F (-20 - 50 C)
Heating Airflow (H/M/L/SL, CFM)671 / 724 / 777
Height (in)10
HSPF2 Rating9.5
Max Fuse Size / Fusible Max40
Minimum Circuit Ampacity35
Minimum Outdoor Cooling Temperature23 F (-5 C)
Modified Outdoor Cooling Temperature Range-4 - 122 F (-20 - 50 C)
Outdoor Heating Temperature Range-13 - 75 F (-25 - 24 C)
Refrigerant ControlElectronic Expansion Valve
Sound Pressure Level (dBA)37 / 45 / 47 / 49
Suction Line Size (in)0.625
Weight (lbs)40.8
Width (in)50.375
Fan TypeCross Flow Fan
Heat/Cool FunctionHeating and Cooling
Indoor Unit StyleWall Mount
Motor TypeBLDC
Standard Outdoor Cooling Temperature Range23 - 122 F (-5 - 50 C)
Fan Motor TypeBLDC with Crossflow Fan
Frequency (Hz)60
AirdirectioncontrolDownward
AirfilterWashable
CompatibleoutdoorunitssinglezoneAC030DXSCCG/AA
ControltypeHand Held Remote
EvaporatorfantypeBLDC Motor With Cross-Flow Fan
Fanmotoroutput58
FanspeedsThree
Heatingoperatingtemperature-13 - 75 F (-25 - 24 C)
Heatingtemperaturerangef-88
Maximumcoolingairflowcfm777
Maximumheatingairflowcfm777
Minindoornoiseleveldba37
Powerfrequency60
