Discontinued Model

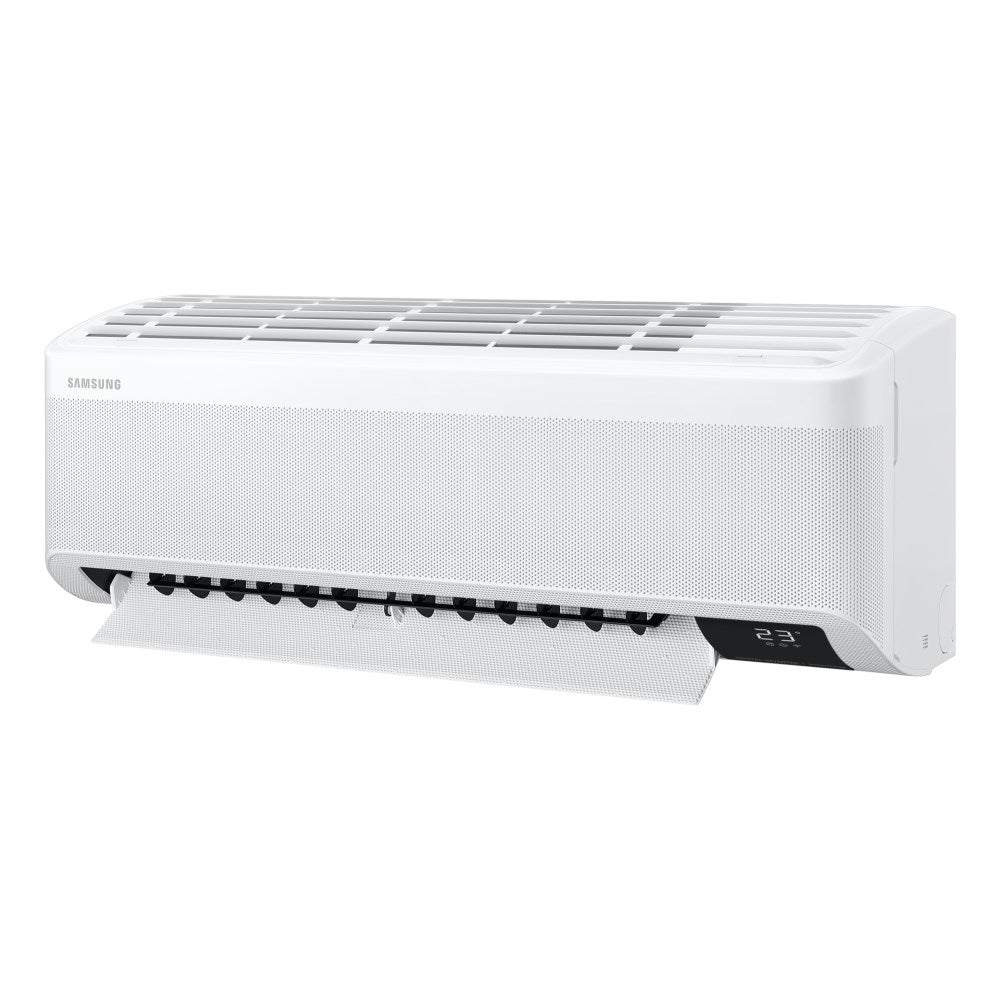

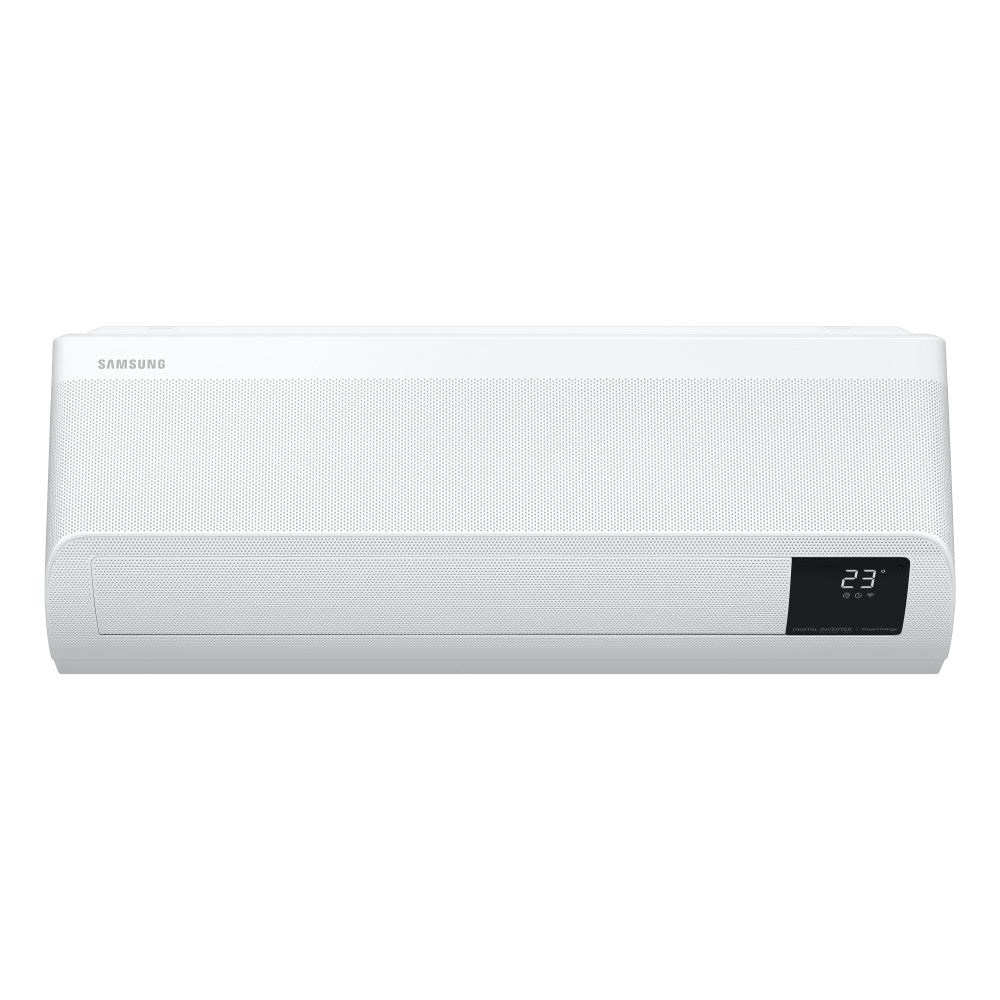

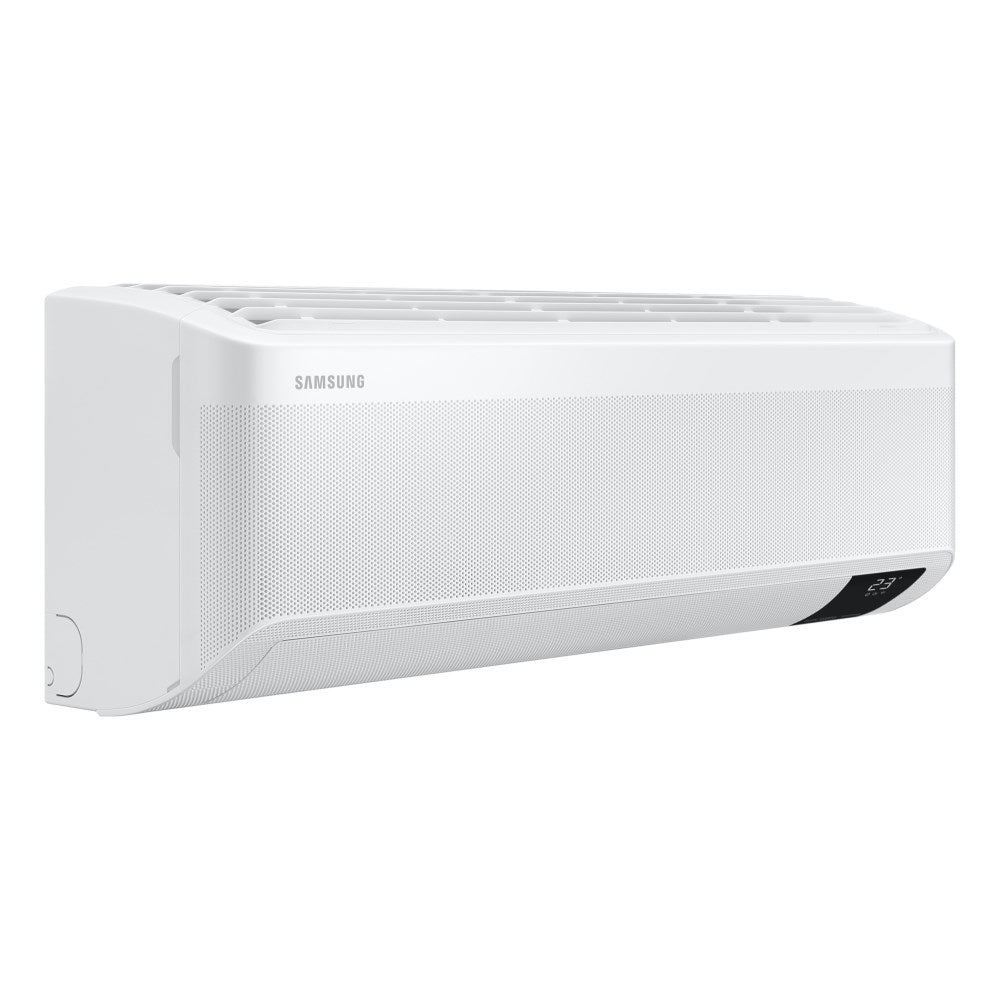

Samsung Wind Free 2.0 12,000 BTU/Hr Wall Mounted Heat Pump with Wi-Fi | 208-230/1
Description
Read more
Replacement Product
Samsung
Samsung 12,000 BTU/Hr WindFree 3.0 Wall Mounted Split System
- SKU
- AR12CSDABWKNCV-SAM
- MFG
- AR12CSDABWKNCV
Specification
BrandSamsung
Manufacturer["Samsung HVAC"]
ModelAR12TSFABWKNCV-SAM
Voltage (V)208-230/1
RefrigerantR410A
Capacity (BTU/Hr)12000
Manufacturer NumberAR12TSFABWKNCV
Nominal Capacity (Tons)1
Zoning["Single-Zone","Multi-Zone"]
Cooling Airflow (H/M/L/SL)251/321/374/427 Single Zone
Depth (in)8.4375
Drain Connection (in)0.6875 OD
Height (in)11-3/4
Minimum Outdoor Cooling Temperature-5 F (-20 C) and Warmer
Outdoor Heating Temperature Range5 to 75 F (-15 to 24 C) Matched with any FJM Compatible Outdoor, -13 to 75 F (-25 to 24 C) Matched with AR12TSFACWKXCV or any FJM Max Heat Compatible Outdoor, -5 to 75 F (-20 to 24 C) Matched with AR12TSFABWKXCV
Sound Pressure Level (dBA)22/39
Suction Line Size (in)0.375 Flare
Weight (lbs)23.4
Width (in)35
Heat/Cool FunctionHeating and Cooling
Indoor Unit StyleWall Mount
Standard Outdoor Cooling Temperature Range0 to 115 F (-18 to 46 C) Matched with AR12TSFACWKXCV, 14 to 115 F (-10 to 46 C) Matched with AR12TSFABWKXCV or any FJM or FJM Max Heat Compatible Outdoor
Frequency (Hz)60 Hz
CompatibleoutdoorunitsmultizoneAJ030TXS4CH/AA, AJ024TXS4CH/AA, AJ020TXJ2CH/AA, AJ036TXS4CH/AA, AJ024TXJ3CH/AA, AJ020TXS3CH/AA, AJ036TXJ4CH/AA, AJ048TXJ5CH/AA
CompatibleoutdoorunitssinglezoneAR12TSFABWKXCV, AR12TSFACWKXCV
EnclosurecolourWhite
MaximumcoolingairflowcfmNone
MaximumheatingairflowcfmNone
Documentation
Manuals
wind-free-2-0_quantum-2.0_idu-odu-inst-manual_db68-08807a_english_08202020-87b54007_e9972489-c333-408e-a5e7-66f7ed6420b2.pdf ar-tsfabwkncv_wind-free-2-0_user-maual_rac022-00_191223_english-74bd844e_ecdd8520-1a74-415d-9997-5940ac1645bc.pdf service-manual_aj0-t-_ac-00261e_1_20200123-2aa08431_c98772a9-1399-40ae-866f-fb9564eb5a00.pdf wind-free-2_quantum-2_service_manual_qmd_cv_12262019-9efe95ad_cbbcf642-5408-448b-999b-a5d03c8eae42.pdfData Sheets
ar12tsfabwkncv_ar12tsfacwkxcv-rns12abt_rxs12act-_submittal_max-heat-2-0_07142020-e9fa947f_d8040ce4-fd29-46bc-87f3-32b09c8aa349.pdf ar12tsfabwkncv-rns12abt-_multi-zone-submittal_wind-free-2-0_07102020-efac64f9_0bd0d4c4-8ca5-4fc7-bddd-3392ac5fa83d.pdf ar12tsfabwkncv_ar12tsfabwkxcv-rns12abt_rxs12abt-_submittal_wind-free-2-0_07142020-d6963eec_a065505c-15d8-4238-b992-5c19f9339210.pdf tdb-free-joint-multi-for-america_ver1-1_04292020-6be901cf_f7813f5f-ff49-4d15-bbfa-d46259e32c75.pdf tdb-free-joint-multi-max-heat_ver1-1_04292020-d2a3bf19_70359e3a-4ee7-419f-afbf-b010acc03de5.pdf tdb_wind-free-2_max-heat-2_quantum-2_ver-1.5_20200513-f46072ee_1c611164-0e45-4000-9faa-c4e1bd6af90c.pdfDisclaimer
For professional use only. Refer to all information, warnings and instructions on Product and package labeling and accompanying documentation provided by the Product manufacturer. Product must be used in accordance with such labeling and documentation.
