Discontinued Model

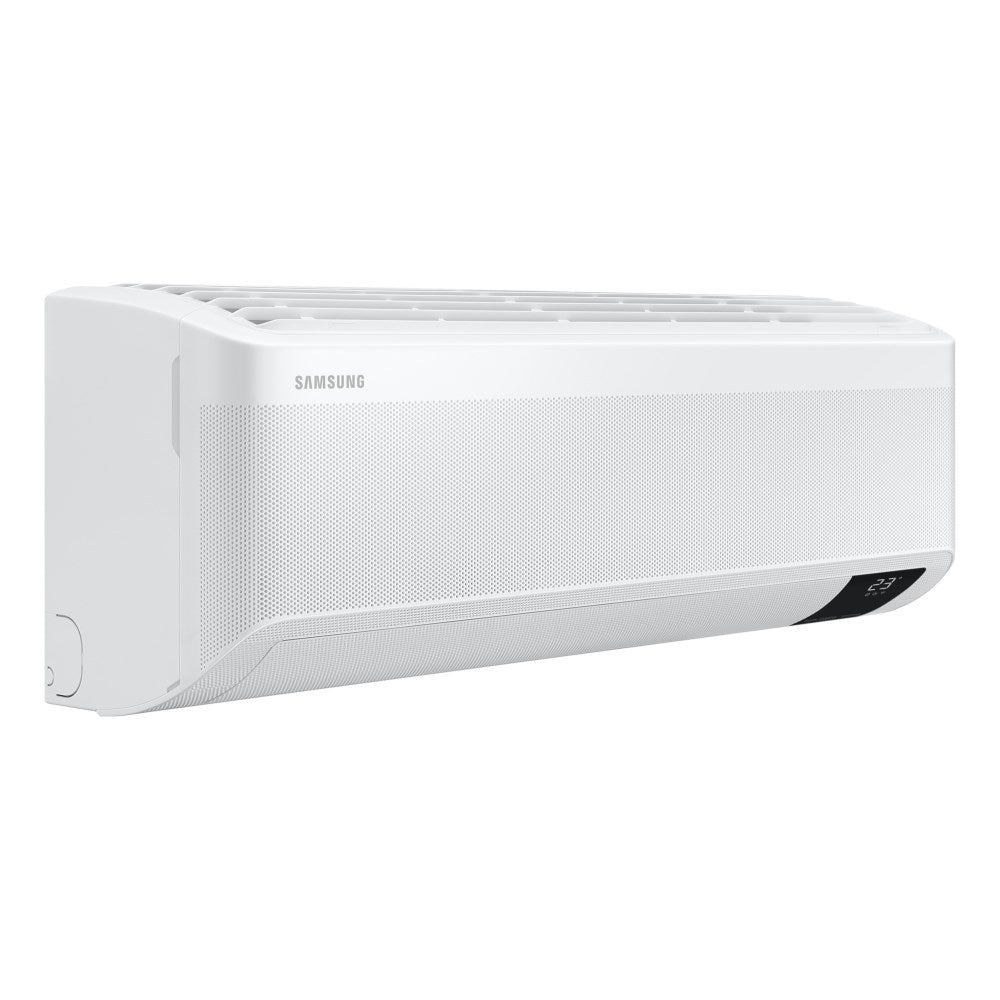

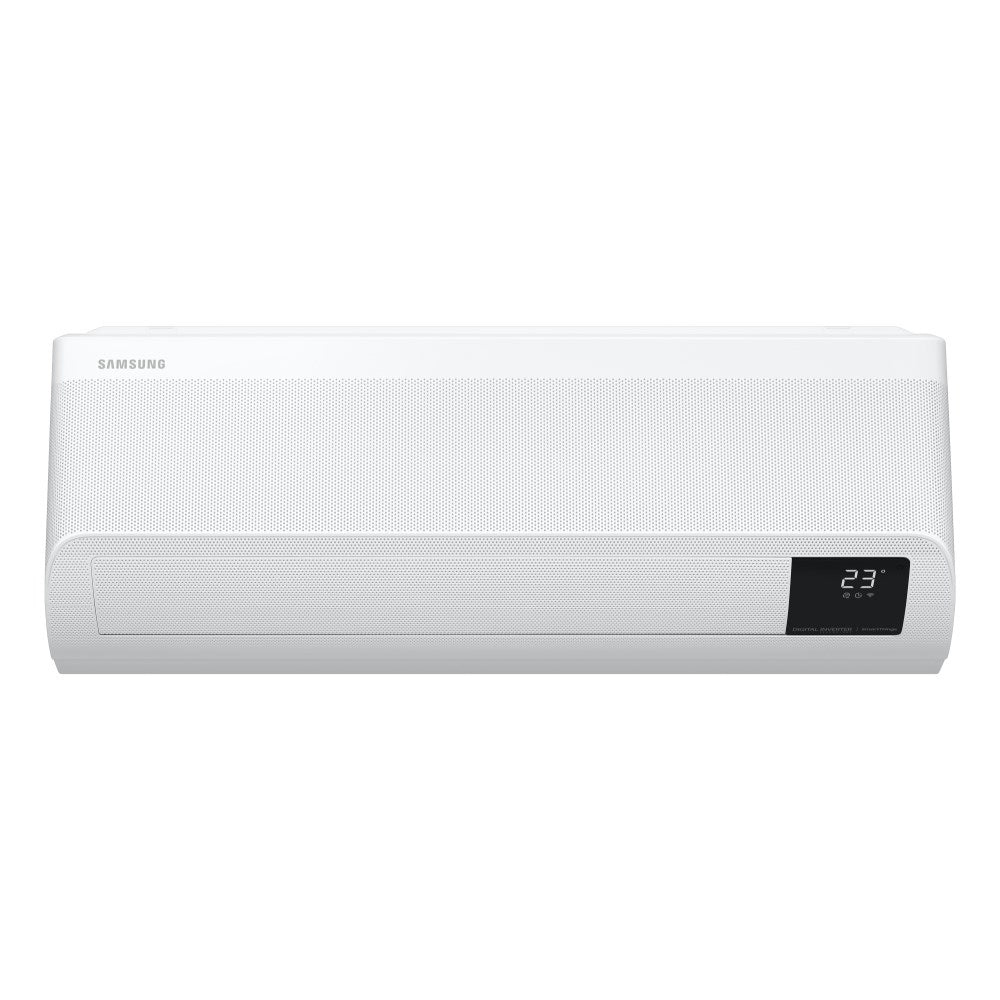

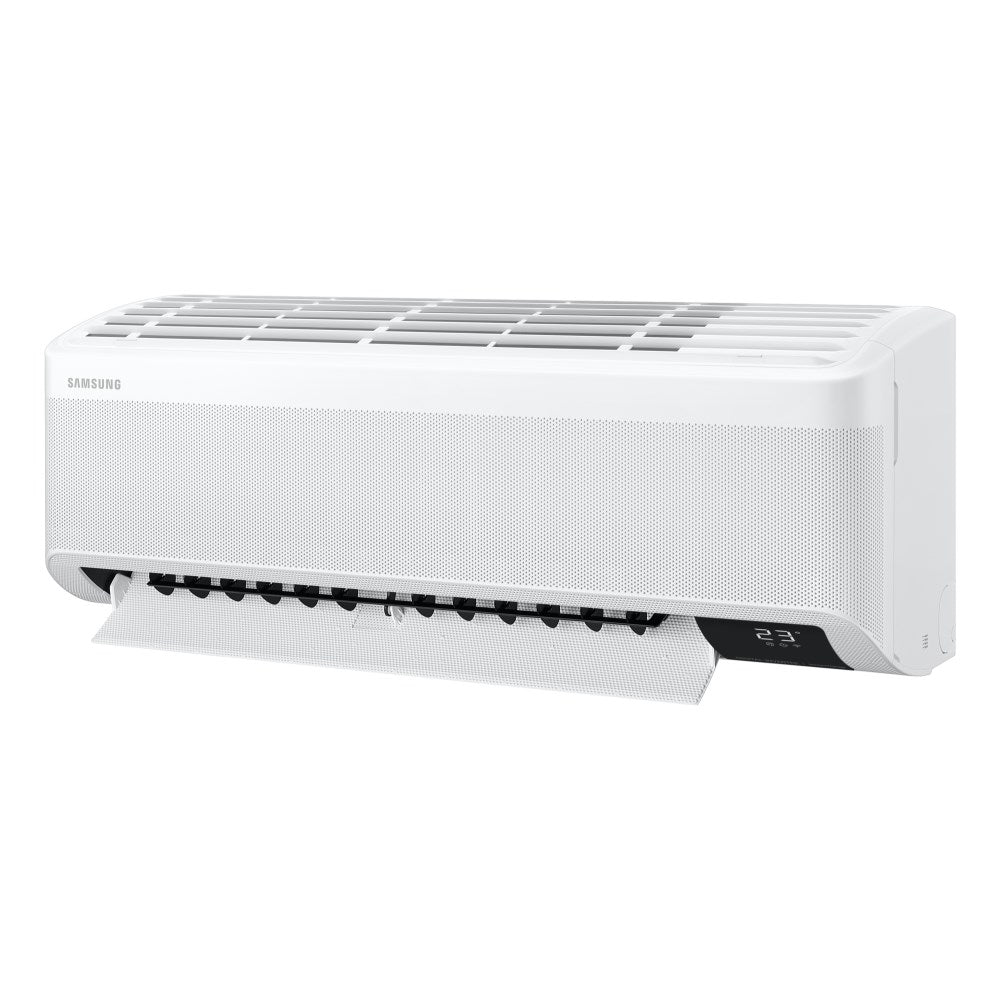

Samsung Wind Free 2.0 18,000 BTU/Hr Wall Mounted Heat Pump with Wi-Fi | 208-230/1
Description
Read more
Replacement Product
Samsung
Samsung 18,000 Btu/Hr WindFree 3.0 Wall Mounted Split System
- SKU
- AR18CSDABWKNCV-SAM
- MFG
- AR18CSDABWKNCV
Specification
BrandSamsung
Manufacturer["Samsung HVAC"]
ModelAR18TSFABWKNCV-SAM
Voltage (V)208-230/1
RefrigerantR410A
Capacity (BTU/Hr)18000
Manufacturer NumberAR18TSFABWKNCV
Nominal Capacity (Tons)1.5
Zoning["Multi-Zone","Single-Zone"]
Cooling Airflow (H/M/L/SL)399/466/533/579
Depth (in)8.4375
Drain Connection (in)0.6875 OD
Height (in)11-3/4
Minimum Outdoor Cooling Temperature-5 F (-20 C) and Warmer
Outdoor Heating Temperature Range-13 to 75 F (-25 to 24 C) Matched with AR18TSFACWKXCV or any FJM Max Heat Compatible Outdoor, -5 to 75 F (-20 to 24 C) Matched with AR18TSFABWKXCV, 5 to 75 F (-15 to 24 C) Matched with any FJM Compatible Outdoor
Sound Pressure Level (dBA)42/25
Suction Line Size (in)0.5 Flare
Weight (lbs)27.6
Width (in)41.5312
Heat/Cool FunctionHeating and Cooling
Indoor Unit StyleWall Mount
Standard Outdoor Cooling Temperature Range14 to 115 F (-10 to 46 C) Matched with AR18TSFABWKXCV or any FJM or FJM Max Heat Compatible Outdoor, 0 to 115 F (-18 to 46 C) Matched with AR18TSFACWKXCV
Frequency (Hz)60 Hz
CompatibleoutdoorunitsmultizoneAJ024TXJ3CH/AA, AJ024TXS4CH/AA, AJ036TXS4CH/AA, AJ036TXJ4CH/AA, AJ030TXS4CH/AA, AJ048TXJ5CH/AA
CompatibleoutdoorunitssinglezoneAR18TSFABWKXCV, AR18TSFACWKXCV
EnclosurecolourWhite
MaximumcoolingairflowcfmNone
MaximumheatingairflowcfmNone
Documentation
Manuals
wind-free-2-0_quantum-2.0_idu-odu-inst-manual_db68-08807a_english_08202020-87b54007_d7a80eb6-f134-4e42-8ce0-5b9a05f03f13.pdf ar-tsfabwkncv_wind-free-2-0_user-maual_rac022-00_191223_english-74bd844e_efa90c2a-2a3b-4e16-83de-0b5c858996f7.pdf service-manual_aj0-t-_ac-00261e_1_20200123-2aa08431_1621a96a-6c0a-40c7-8f70-387f05ecb14d.pdf wind-free-2_quantum-2_service_manual_qmd_cv_12262019-9efe95ad_47e9219e-53cc-4fac-9731-cd19335ef791.pdfData Sheets
ar18tsfabwkncv_ar18tsfacwkxcv-rns18abt_rxs18act-_submittal_max-heat-2-0_07142020-f6e5df0a.pdf ar18tsfabwkncv-rns18abt-_multi-zone-submittal_wind-free-2-0_07102020-48747261.pdf ar18tsfabwkncv_ar18tsfabwkxcv-rns18abt_rxs18abt-_submittal_wind-free-2-0_07142020-8d28e01b.pdf tdb-free-joint-multi-for-america_ver1-1_04292020-6be901cf_e9325ed5-b94b-4915-8274-6f425faf9102.pdf tdb-free-joint-multi-max-heat_ver1-1_04292020-d2a3bf19_8149169b-7093-4597-a2ed-cdb2f35acb1b.pdf tdb_wind-free-2_max-heat-2_quantum-2_ver-1.5_20200513-f46072ee_a8aed83c-39ef-4e2b-8163-52462b8fe9d7.pdfBrochures
73583_samsung_2020_literature_update_fjm_brochure_hr_68cf343b-a1fd-41dc-b652-1f75fbdd41b8.pdf 72919-01_samsung_rac_brochure_march2020_final_3957054b-9bb7-4c35-9e79-e578d90ae8c2.pdfParts & Components
exploded_views_and_part_list_ar18tsfabwkncv_rns18abt.pdfDisclaimer
For professional use only. Refer to all information, warnings and instructions on Product and package labeling and accompanying documentation provided by the Product manufacturer. Product must be used in accordance with such labeling and documentation.
