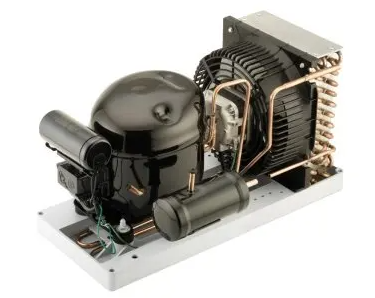

Tecumseh Celseon 1/3 HP High Temp. Evaporative Condensate Air-Cooled Condensing Unit | 115/1
Description
Read more
Specification
BrandTecumseh
Manufacturer["Tecumseh Products of Canada"]
ModelAE4440Y-AA1AGB-TEC
Compressor DesignReciprocating
Voltage (V)115/1
RefrigerantR513A, R134A
Manufacturer Number33Y360-49
Airflow CFM240
Cabinet Height (in)10.3
Cabinet Width (in)9.7
Maximum Fuse (Amps)15.00A
Suction Line Size (in)0.3125 Solder
Weight (lbs)40
20fsstcapacitybtuhr90degreesambientr134a2360
20fsstcapacitybtuhr90degreesambientr513a2306
30fsstcapacitybtuhr90degreesambientr134a2860
30fsstcapacitybtuhr90degreesambientr513a2633
ApplicationtemperatureHigh Temperature
Cabinetlengthin19
ChassisbodystyleCondensate Base
CompressorAE4440Y-AA1A
Compressorhorsepowerrating1/3
Compressorlockedrotoramps32.00A
Compressorratedloadamps5.82A
CondenserstyleAir-Cooled
Maximumambientoperatingtemperature105 F (41 C)
Minimumambientoperatingtemperature80 F (27 C)
Oilrechargeoz9.5
OiltypePolyolester (POE)
OptionsincludedPower Cord
Documentation
Data Sheets
ae4440y_aa1agb_spec.pdfBrochures
tecumseh-celseon-condensing-units_split-decision-brochure_4778a985-dc71-4d23-aa0c-7fc12a2cf991.pdfMiscellaneous
ae4440y_aa1agb_drawing.pdfDisclaimer
For professional use only. Refer to all information, warnings and instructions on Product and package labeling and accompanying documentation provided by the Product manufacturer. Product must be used in accordance with such labeling and documentation.
